ISE Street Elbows
Print Page
ISE-16N
ISE-16N - Image 2
ISE-16N - Image 3

ISE-16N

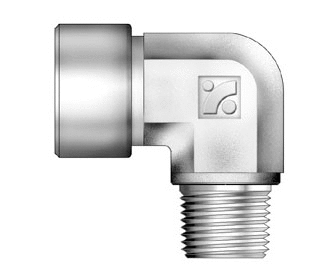

ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow

SKU: ISE-16N Category:
Click here for more info
Add to quote
Specifications
End Size1
End Size 21
End TypeFemale National Pipe Taper (NPT)
End Type 2Male National Pipe Taper (NPT)
Inch/MetricInch
Pressure Rating (Brass)179bar, 2600psig
Pressure [Max]365bar, 5300psig
Dimensions
ISE-16N
Dimension E22.4mm
Dimension H42.9mm
Dimension L48.8mm
Dimension S49.2mm
Description

(ISE-16N)

ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow

Compatibility
This part may be used in place of the following parts from other manufacturers:
Swagelok®SS-16-SE
Back to ISE Street Elbows
