ISE Street Elbows

Print Page Email Page

ISE Street Elbows

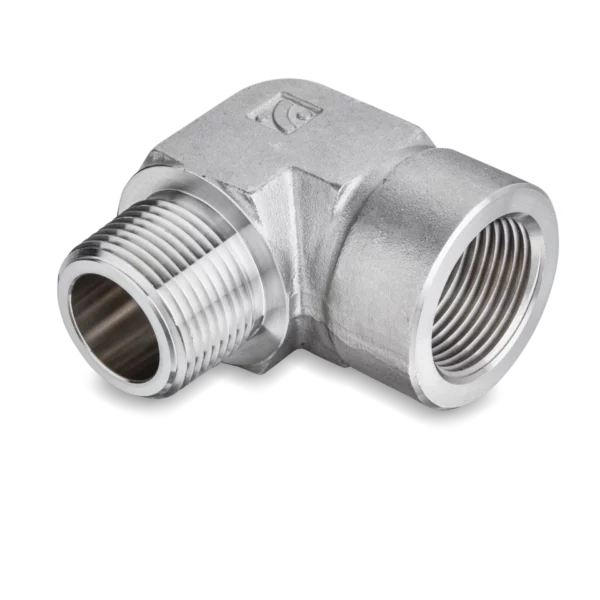

Street Elbow – ISE Street Elbows

Street Elbows are essential for making 90-degree directional changes in piping systems while maintaining a secure and leak-proof connection. The ISE Street Elbow is crafted from corrosion-resistant stainless steel, featuring a female FNPT and male MNPT connection for easy installation. These elbows are widely used in plumbing, compressed air systems, and industrial fluid transport due to their strength and durability. Designed to withstand high-pressure environments, ISE Street Elbows ensure smooth fluid transitions, reducing turbulence and wear on piping components.

Browse all Street Elbows below to find the right size and configuration for your fluid system needs.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18346 Category: Elbow Pipe Fittings

Click here for more info

Specifications

End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure [Max]	=--DELETED=psi
Superlok Part Type	Street Elbows

Compatibility

This part may be used in place of the following parts from other manufacturers:

Bi-Lok (Series D)®

Available Sizes

ISE-2N ISE Street Elbows

ISE 1/8 in. Female National Pipe Taper (FNPT) x 1/8 in. Male National Pipe Taper (MNPT) Street Elbow

ISE-4N ISE Street Elbows

ISE 1/4 in. Female National Pipe Taper (FNPT) x 1/4 in. Male National Pipe Taper (MNPT) Street Elbow

ISE-6N ISE Street Elbows

ISE 3/8 in. Female National Pipe Taper (FNPT) x 3/8 in. Male National Pipe Taper (MNPT) Street Elbow

ISE-8N ISE Street Elbows

ISE 1/2 in. Female National Pipe Taper (FNPT) x 1/2 in. Male National Pipe Taper (MNPT) Street Elbow

ISE-12N ISE Street Elbows

ISE 3/4 in. Female National Pipe Taper (FNPT) x 3/4 in. Male National Pipe Taper (MNPT) Street Elbow

ISE-16N ISE Street Elbows

ISE 1 in. Female National Pipe Taper (FNPT) x 1 in. Male National Pipe Taper (MNPT) Street Elbow

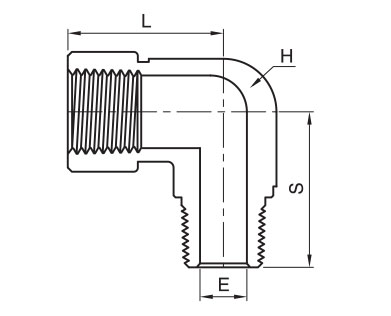

Dimension E	4.8mm
Dimension H	12.7mm
Dimension L	24.1mm
Dimension S	19.6mm

Dimension E	7.1mm
Dimension H	17.5mm
Dimension L	29.0mm
Dimension S	26.5mm

Dimension E	9.6mm
Dimension H	20.6mm
Dimension L	34.5mm
Dimension S	28.2mm

Dimension E	11.9mm
Dimension H	25.4mm
Dimension L	37.0mm
Dimension S	35.3mm

Dimension E	15.7mm
Dimension H	31.8mm
Dimension L	46.5mm
Dimension S	39.6mm

End Size	44204
End Size 2	44204
End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	213bar, 3100psig
Pressure [Max]	427bar, 6200psig

End Size	44200
End Size 2	44200
End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	248bar, 3600psig
Pressure [Max]	496bar, 7200psig

End Size	44263
End Size 2	44263
End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	192bar, 2800psig
Pressure [Max]	385bar, 5600psig

End Size	44198
End Size 2	44198
End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	192bar, 2800psig
Pressure [Max]	385bar, 5600psig

End Size	44259
End Size 2	44259
End Type	Female National Pipe Taper (NPT)
End Type 2	Male National Pipe Taper (NPT)
Inch/Metric	Inch
Pressure Rating (Brass)	172bar, 2500psig
Pressure [Max]	351bar, 5100psig

Dimension E	22.4mm
Dimension H	42.9mm
Dimension L	48.8mm
Dimension S	49.2mm
