IBT-4N
Stainless Steel Branch Tee – 1/4" FNPT x 1/4" MNPT Pipe Size Tee
- Model: IBT-4N (1/4" FNPT x 1/4" FNPT x 1/4" MNPT, 316 stainless steel)
- Type: NPT Branch Tee (pipe-size tee fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Up to 7200 PSIG (steel), 3600 PSIG (brass)
- Connection Type: Dual 1/4" FNPT ends x 1/4" MNPT branch
- Equivalent To: Swagelok® compatible NPT branch tee
| Inch/Metric | Inch |
|---|---|
| Pressure Rating (Brass) | 248bar, 3600psig |
| Pressure [Max] | 496bar, 7200psig |

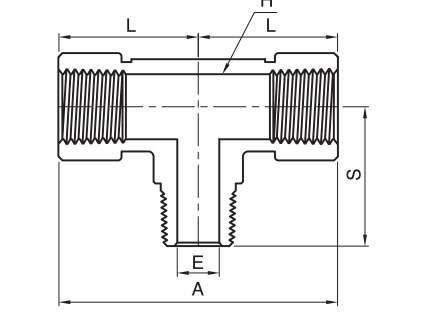

| Dimension A | 58.0mm |
|---|---|
| Dimension E | 7.1mm |
| Dimension H | 17.5mm |
| Dimension L | 29.0mm |
| Dimension S | 26.5mm |

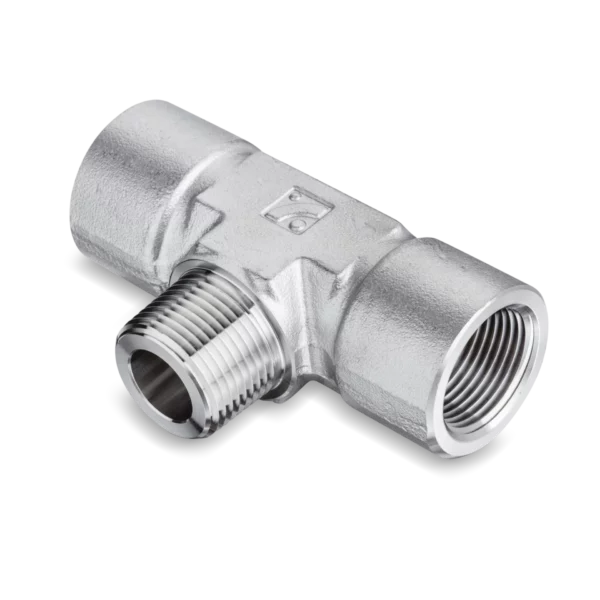

Stainless Steel Branch Tee – 1/4" FNPT x 1/4" MNPT Pipe Size Tee (IBT-4N)
The IBT-4N is a precision-machined NPT branch tee designed to deliver high-strength, leak-tight performance in sanitary and industrial fluid systems. With dual 1/4" Female NPT ports and a 1/4" Male NPT branch, it’s built from 316 stainless steel for excellent corrosion resistance and long-term durability in high-pressure applications.
Rated up to 7200 PSIG in stainless construction, the IBT-4N is commonly used in Clean-in-Place (CIP) infrastructure, gas transfer lines, and OEM skids where reliable sealing and compact routing are essential. Its tee body supports strong threaded connections for instrumentation panels, hygienic valve arrays, and stainless piping assemblies.
Ideal for tight spaces and process-critical systems, this fitting offers seamless integration with compression fittings, valve manifolds, and sanitary-grade components.
Key Benefits
- Strength: Rated for high-pressure service up to 7200 PSIG (steel version)
- Seal: NPT threads ensure tight, reliable connections without leaks
- Versatility: Compact body allows easy use in tight routing applications
- Compatibility: Integrates with stainless pipe fittings and instrumentation hardware
- Material: 316 stainless steel supports hygienic and industrial system demands
Typical Applications
- Sanitary process and fluid transfer systems
- Clean-in-Place (CIP) infrastructure
- OEM skids and instrumentation panel layouts
- Gas and liquid sampling or routing setups
- Hygienic valve and manifold assemblies
Looking for a Swagelok® alternative NPT branch tee? The IBT-4N offers pressure-rated reliability, clean integration, and corrosion-resistant performance for critical piping systems.
