Specifications
| Inch/Metric | Inch |
|---|---|
| Pressure Rating (Brass) | 275bar, 4000psig |
| Pressure [Max] | 551bar, 8000psig |
Dimensions
| Dimension A | 49.0mm |
|---|---|
| Dimension E | 7.1mm |
| Dimension H | 12.7mm |
| Dimension L | 24.5mm |
Description
(IMT-4N)

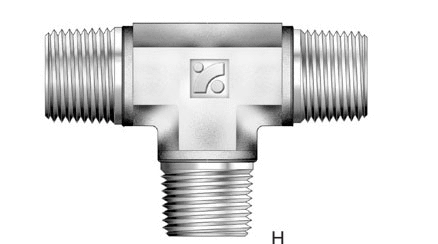

IMT 1/4 in. Male National Pipe Taper (MNPT) Pipe Size Male Tee
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-4-MT |
|---|
