IRT Run Tees
IRT Run Tees
Access our complete line of run tees designed for inline flow distribution. Our selection provides straight-through branch connections for your fluid system. Browse below to instantly request a quote or purchase the run tees you need.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Run Tee |
Available Sizes
IRT-2N IRT Run Tees
IRT 1/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
IRT-4N IRT Run Tees

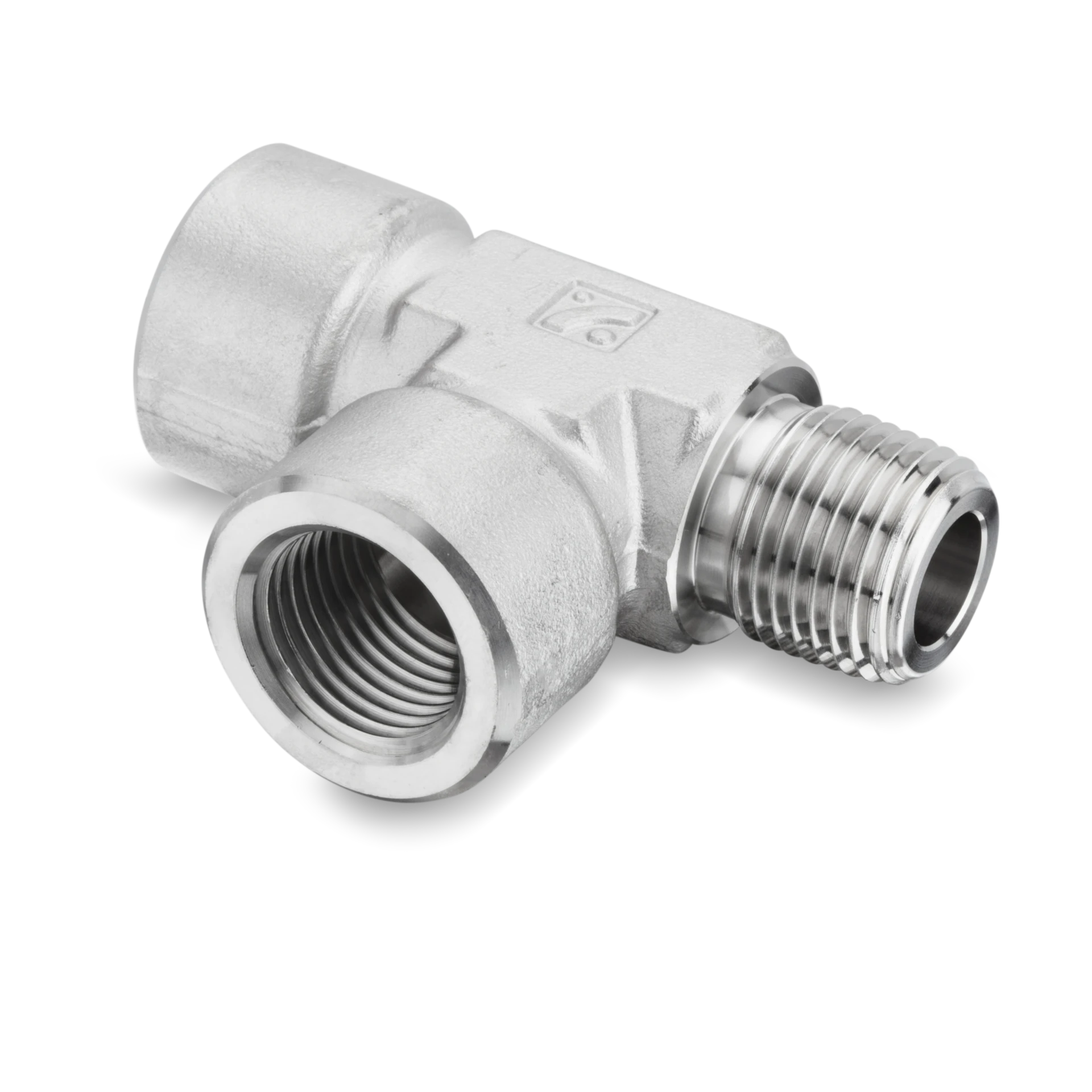

- Model: IRT-4N (1/4" NPT pipe run tee, 316 stainless steel)
- Type: NPT Run Tee (female-male-female pipe tee)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Connection Type: 1/4" FNPT x 1/4" MNPT x 1/4" FNPT
- Pressure Rating: 7200 PSIG (Steel), 3600 PSIG (Brass)
IRT-6N IRT Run Tees
IRT 3/8 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
IRT-8N IRT Run Tees
IRT 1/2 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
IRT-12N IRT Run Tees
IRT 3/4 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
IRT-16N IRT Run Tees
IRT 1 in. Female National Pipe Taper (FNPT) x Male National Pipe Taper (MNPT) x Female National Pipe Taper (FNPT) Pipe Size Run Tee
