Specifications
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ?C) Temperature | 413bar, 600psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ?C) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with NBR O-Ring at 250 (121 ?C) Temperature | 6.8bar, 100psig |
| Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ?C) Temperature | 275bar, 4000psig |
Dimensions
Description
(SFQC2-BP)

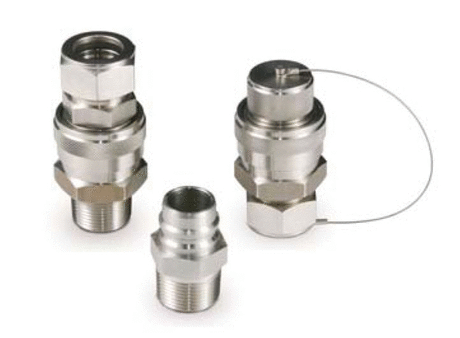

SFQC Full Flow Quick Connect Body Protectors
Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling
