Specifications
| Inch/Metric | Inch |
|---|---|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ?C) Temperature | 206bar, 3000psig |
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ?C) Temperature | 17.2bar, 250psig |
Dimensions
Description
(SQC1-BP)

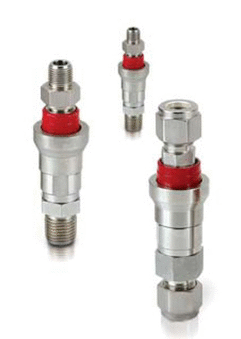

SQC Quick Connect Body Protectors
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-QC4-BP |
|---|
