SMA 4-8N

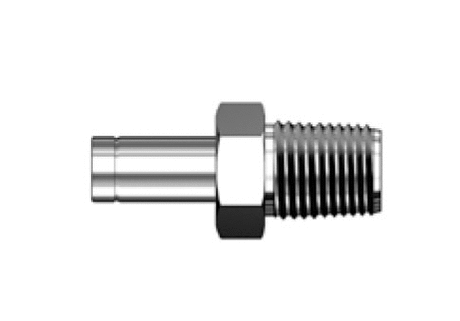

SMA 1/4 in. Tube Stub x 1/2 in. Male National Pipe Taper (MNPT) Male Adapter
Specifications
| End Size | 44198in |
|---|---|
| End Type | Male National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 7/8in |
Dimensions
| Dimension L | 43.43mm |
|---|---|
| Dimension d1 | 4.40mm |
| Dimension d [Min] | 4.4mm |
Description
(SMA 4-8N)
SMA 1/4 in. Tube Stub x 1/2 in. Male National Pipe Taper (MNPT) Male Adapter
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-4-TA-1-8 |
|---|---|
| Parker (Alok)® | 4MA8N |
| Hy-Lok® | CAM 4-8N |
| Tylok (CBC-Lok)® | 4-DATPM-8 |
| Ham-Let (Let-Lok)® | 739LM 1/4 X 1/2 |
| Hoke (Gyrolok)® | 4AM8 |
| Dk-Lok® | DAM4-8N |
| Bi-Lok (Series D)® | DHA-4-8 |
| SSP (DUlok)® | D4MA8 |
