SBMC Bulkhead Male Connectors

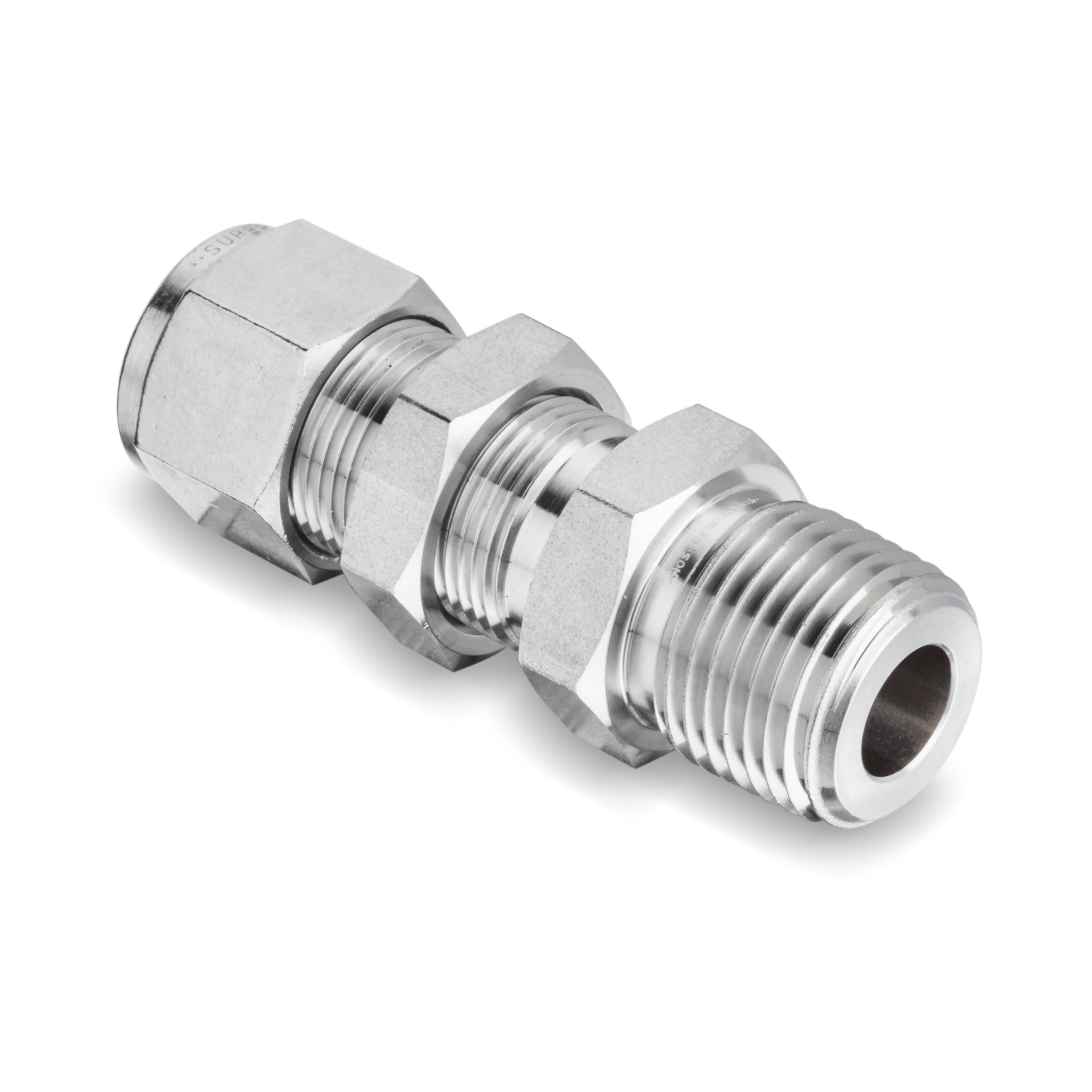

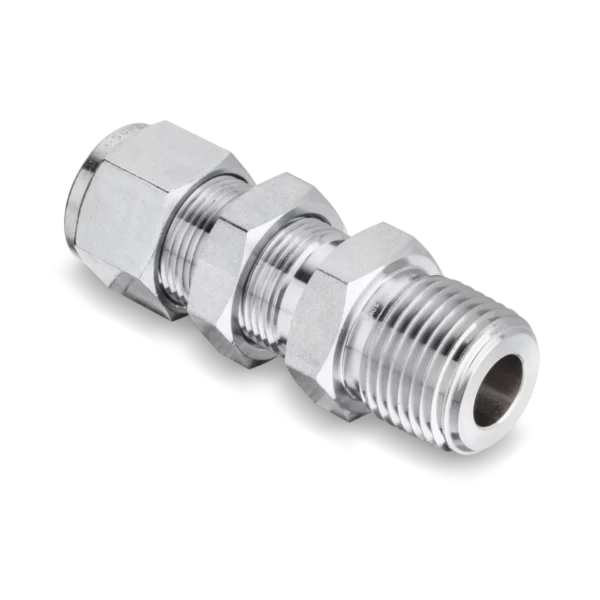

Bulkhead Male Connector – SBMC Bulkhead Male Connectors

The Bulkhead Male Connector is an integral fitting that ensures secure, high-pressure connections through bulkheads in hydraulic and instrumentation tubing systems. SBMC Bulkhead Male Connectors feature precision threading and durable stainless-steel construction to withstand extreme pressures and temperatures. They are widely used in chemical processing, oil and gas industries, and fluid transport systems requiring dependable sealing and connection integrity. Designed for superior strength and performance, these connectors ensure minimal leakage and prevent system failures due to pressure inconsistencies.

Their corrosion-resistant materials make them suitable for harsh environments, including marine and offshore applications. Easy to install and adaptable to various pipe sizes, SBMC Bulkhead Male Connectors enhance operational efficiency by providing a robust connection point for critical fluid transfer systems.

Browse all Bulkhead Male Connectors below for premium performance in industrial applications.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17785 Category: Connector Tube Fittings

Downloads

SBMC-Bulkhead-Male-Connectors.pdf

Click here for more info

Specifications

End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Superlok Part Type	Male Connector

Available Sizes

SBMC 2-2N SBMC Bulkhead Male Connectors

SBMC 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

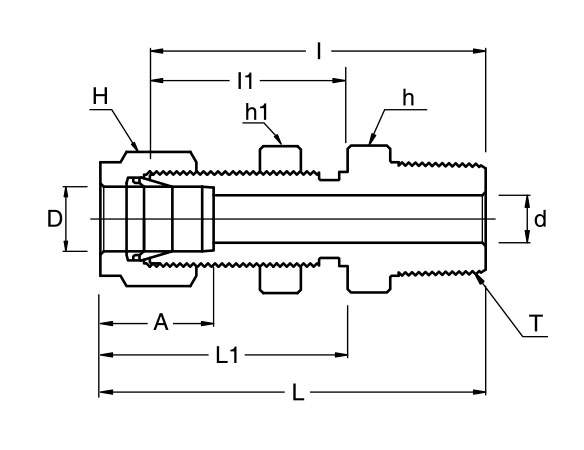

Dimension A	12.70mm
Dimension I	39.87mm
Dimension I1	24.63mm
Dimension L	46.48mm
Dimension L1	31.24mm
Dimension d [Min]	2.28mm

End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	8.33mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/8in
Width Across Flats h	1/2in
Width Across Flats h1	1/2in

SBMC 4-2N SBMC Bulkhead Male Connectors

SBMC 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	15.24mm
Dimension I	42.16mm
Dimension I1	26.16mm
Dimension L	49.53mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in
Width Across Flats h1	5/8in

SBMC 4-4N SBMC Bulkhead Male Connectors

SBMC 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	15.24mm
Dimension I	46.73mm
Dimension I1	26.16mm
Dimension L	54.10mm
Dimension L1	33.52mm
Dimension d [Min]	4.82mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	11.50mm
Pannel Thickness [Max]	10.16mm
Tube Outside Diameter D	1/4in
Width Across Flats h	5/8in
Width Across Flats h1	5/8in

SBMC 6-4N SBMC Bulkhead Male Connectors

SBMC 3/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	16.76mm
Dimension I	50.03mm
Dimension I1	29.46mm
Dimension L	57.4mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in
Width Across Flats h1	3/4in

SBMC 6-6N SBMC Bulkhead Male Connectors

SBMC 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	16.76mm
Dimension I	50.03mm
Dimension I1	29.46mm
Dimension L	57.4mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	3/4in
Width Across Flats h1	3/4in

SBMC 6-8N SBMC Bulkhead Male Connectors

SBMC 3/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	16.76mm
Dimension I	56.38mm
Dimension I1	29.46mm
Dimension L	63.75mm
Dimension L1	36.83mm
Dimension d [Min]	7.11mm

End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	14.68mm
Pannel Thickness [Max]	11.17mm
Tube Outside Diameter D	3/8in
Width Across Flats h	7/8in
Width Across Flats h1	3/4in

SBMC 8-6N SBMC Bulkhead Male Connectors

SBMC 1/2 in. Tube Outside Diameter DX 3/8 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	22.86mm
Dimension I	53.08mm
Dimension I1	31.75mm
Dimension L	63.24mm
Dimension L1	41.91mm
Dimension d [Min]	9.65mm

End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	15/16in
Width Across Flats h1	15/16in

SBMC 8-8N SBMC Bulkhead Male Connectors

SBMC 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	22.86mm
Dimension I	58.67mm
Dimension I1	31.75mm
Dimension L	68.83mm
Dimension L1	41.91mm
Dimension d [Min]	10.41mm

End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	19.44mm
Pannel Thickness [Max]	12.70mm
Tube Outside Diameter D	1/2in
Width Across Flats h	15/16in
Width Across Flats h1	15/16in

SBMC 12-12N SBMC Bulkhead Male Connectors

SBMC 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector

Dimension A	24.38mm
Dimension I	66.04mm
Dimension I1	37.33mm
Dimension L	76.2mm
Dimension L1	47.49mm
Dimension d [Min]	15.74mm

End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Pannel Hole Drill Size	25.79mm
Pannel Thickness [Max]	16.76mm
Tube Outside Diameter D	3/4in
Width Across Flats h	1-3/16in
Width Across Flats h1	1-3/16in

SBMC 16-16N SBMC Bulkhead Male Connectors

SBMC 1 in. Tube Outside Diameter D x 1 in. Male National Pipe Taper (MNPT) Bulkhead Male Connector
