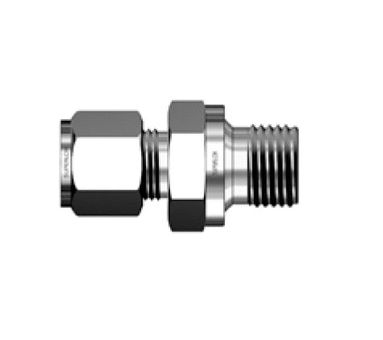

SGMC 16M-8G
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
Specifications
| End Size | 44198in |
|---|---|
| Inch/Metric | Metric |
| Tube Outside Diameter D | 16mm |
| Width Across Flats h | 27.0mm |
Dimensions
| Dimension A | 24.4mm |
|---|---|
| Dimension B | 22.0mm |
| Dimension I | 38.9mm |
| Dimension I1 | 14.0mm |
| Dimension K | 26.0mm |
| Dimension L | 49.0mm |
| Dimension d [Min] | 11.9mm |
Description
(SGMC 16M-8G)
SGMC Male Connectors for bonded washer seal, Connects Metric Tubes to Female ISO Parallel Thread.
