SMC 4-2R

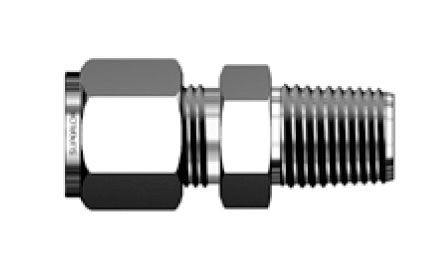

SMC 22 mm Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Male Connector
Specifications
| End Size | 44204in |
|---|---|
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Metric |
| Tube Outside Diameter D | 1/4in, mm |
| Width Across Flats h | 1/2in, mm |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 25.40mm |
| Dimension L | 32.76mm |
| Dimension d [Min] | 4.82mm |
Description
(SMC 4-2R)
SMC 22 mm Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Male Connector
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-1-2RT |
|---|---|
| Parker (Alok)® | 4MSC2K |
| Tylok (CBC-Lok)® | 4-COS-1/8-28 |
| Ham-Let (Let-Lok)® | 768LR 1/4 X 1/8 |
| Hoke (Gyrolok)® | 4CM2EC |
| Dk-Lok® | COS4-2R |
| SSP (DUlok)® | D4MCRS2 |
