Specifications
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1in |

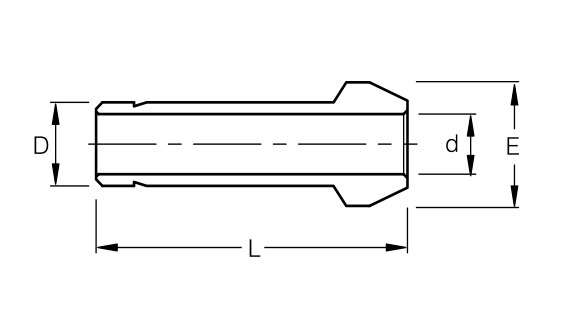

Dimensions
| Dimension E | 28.44mm |
|---|---|
| Dimension L | 48.0mm |
| Dimension d [Min] | 20.4mm |
Description
(SPC-16)

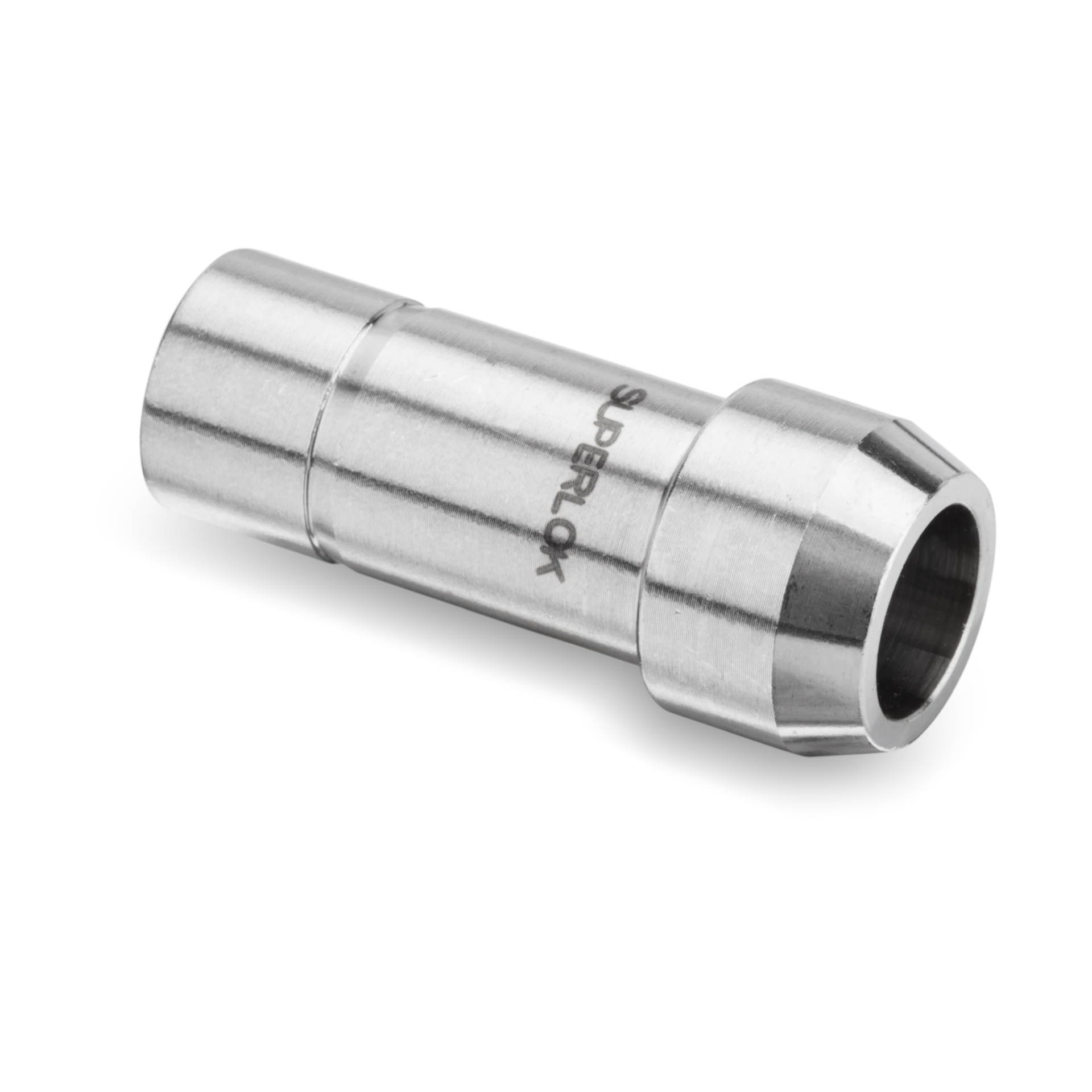

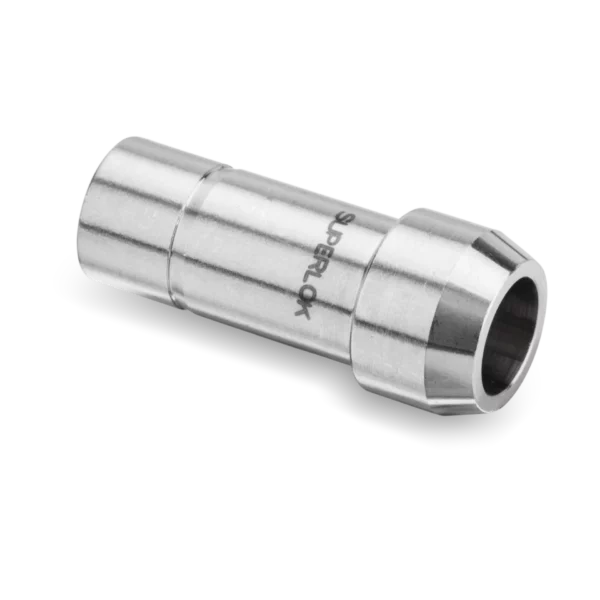

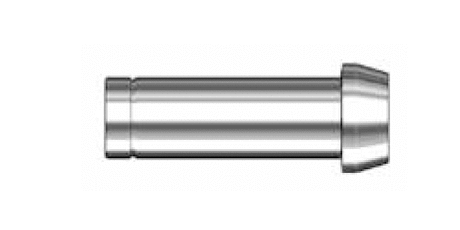

SPC 1 in. Tube Outside Diameter D Port Connector
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-1611-PC |
|---|---|
| Parker (Alok)® | 16PC16 |
| Hy-Lok® | CPC-16 |
| Tylok (CBC-Lok)® | 16-DPCU-16 |
| Ham-Let (Let-Lok)® | 767LP 1 X 1 |
| Hoke (Gyrolok)® | 16PC |
| Dk-Lok® | DCP-16 |
| Bi-Lok (Series D)® | DPC-16 |
| SSP (DUlok)® | D16PC |
