SRPC 6-2

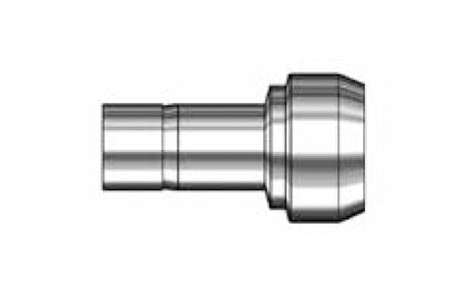

SRPC 3/8 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
Specifications
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1/8in |
| Tube Outside Diameter D1 | 3/8in |
Dimensions
| Dimension E | 12.7mm |
|---|---|
| Dimension I | 13.46mm |
| Dimension I1 | 3.81mm |
| Dimension L | 23.11mm |
| Dimension d [Min] | 2.1mm |
Description
(SRPC 6-2)
SRPC 3/8 in. x 1/8 in. Tube Outside Diameter D Reducing Port Connector
