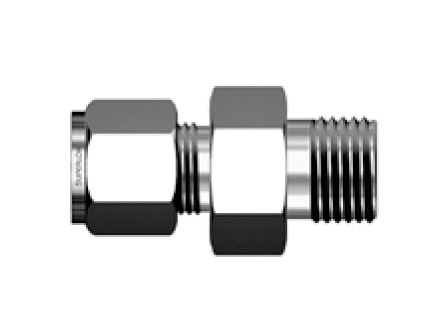

SSMC 4-6U
SSMC 1/4 in. Tube Outside Diameter D x 9/16-18 Male Society of Automotive Engineering (SAE) Connector with O-Ring
Specifications
| End Size | 43359in |
|---|---|
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| O-Ring Uniform Size Number | 3-906 |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 11/16in |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 28.19mm |
| Dimension I1 | 9.90mm |
| Dimension L | 35.56mm |
| Dimension d [Min] | 4.82mm |
Description
(SSMC 4-6U)
SSMC 1/4 in. Tube Outside Diameter D x 9/16-18 Male Society of Automotive Engineering (SAE) Connector with O-Ring
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-1-6ST |
|---|
