SSWC-4

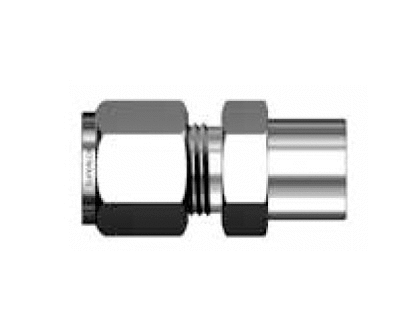

SSWC 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld Connector
Specifications
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 1/2in |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 26.16mm |
| Dimension I1 | 7.87mm |
| Dimension L | 33.52mm |
| Dimension L1 | 10.41mm |
| Dimension P | 11.17mm |
| Dimension d [Min] | 4.82mm |
Description
(SSWC-4)
SSWC 1/4 in. Tube Outside Diameter D x 1/4 in. Tube Socket Weld Connector
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-6-4W |
|---|---|
| Parker (Alok)® | 4-4 ZHLW |
| Hy-Lok® | CSWC 4-4 |
| Tylok (CBC-Lok)® | 4-DTSW-4 |
| Ham-Let (Let-Lok)® | 768LW 1/4 X 1/4 |
| Hoke (Gyrolok)® | 4CW4 |
| Dk-Lok® | DCSW4-4 |
| Bi-Lok (Series D)® | DCW4 |
| SSP (DUlok)® | D4TSWU4 |
