Specifications
| Inch/Metric | Metric |
|---|---|
| Tube Outside Diameter D | 1/8in |
| Width Across Flats h | 3/8in |
Dimensions
| Dimension A | 12.70mm |
|---|---|
| Dimension B | 15.24mm |
| Dimension I | 15.74mm |
| Dimension L | 22.35mm |
| Dimension d [Min] | 2.28mm |
Description
(SUC-2)

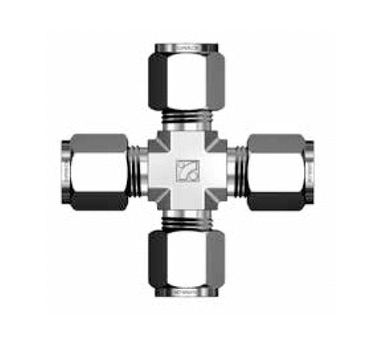

SUC 1/8 in. Tube Outside Diameter D Union Cross
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-200-4 |
|---|---|
| Parker (Alok)® | 2ECR2 |
| Hy-Lok® | CXA-2 |
| Tylok (CBC-Lok)® | 2-DCR |
| Ham-Let (Let-Lok)® | 7102L 1/8 |
| Hoke (Gyrolok)® | 2TTT |
| Dk-Lok® | DX-2 |
| Bi-Lok (Series D)® | DXA-2 |
| SSP (DUlok)® | D2UCS |
