SHME 4-2N

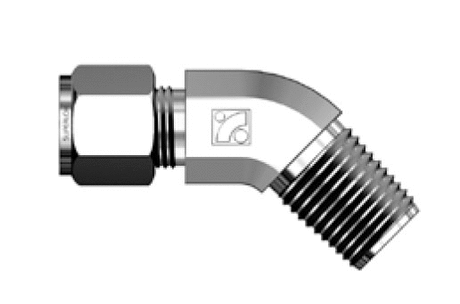

SHME 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
Specifications
| Angle | 45? |
|---|---|
| End Size | 44204in |
| End Type | Female National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 1/2in |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 17.27mm |
| Dimension L | 24.63mm |
| Dimension L1 | 16.51mm |
| Dimension d [Min] | 4.82mm |
Description
(SHME 4-2N)
SHME 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 45 Degree Male Elbow
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-5-2 |
|---|---|
| Parker (Alok)® | 4MVEL2N |
| Hy-Lok® | CLMB 4-2N |
| Tylok (CBC-Lok)® | 4-DME45-2 |
| Hoke (Gyrolok)® | 4LMF2 |
| Dk-Lok® | DLBM4-2N |
| SSP (DUlok)® | D4M45E2 |
