Specifications
| Description | 3/8 in O.D. 45 Degree Union Elbow |
|---|---|
| Tube O.D, ØD (in) | 3/8" |
Dimensions
| Dimension A (mm) | 16.8 |
|---|---|
| Dimension B (mm) | 19.3 |
| Dimension H (mm) | 14.9 |
| Dimension L (mm) | 29.2 |
| Dimension d (mm) | 7.1 |
Description
(SHUE-6)

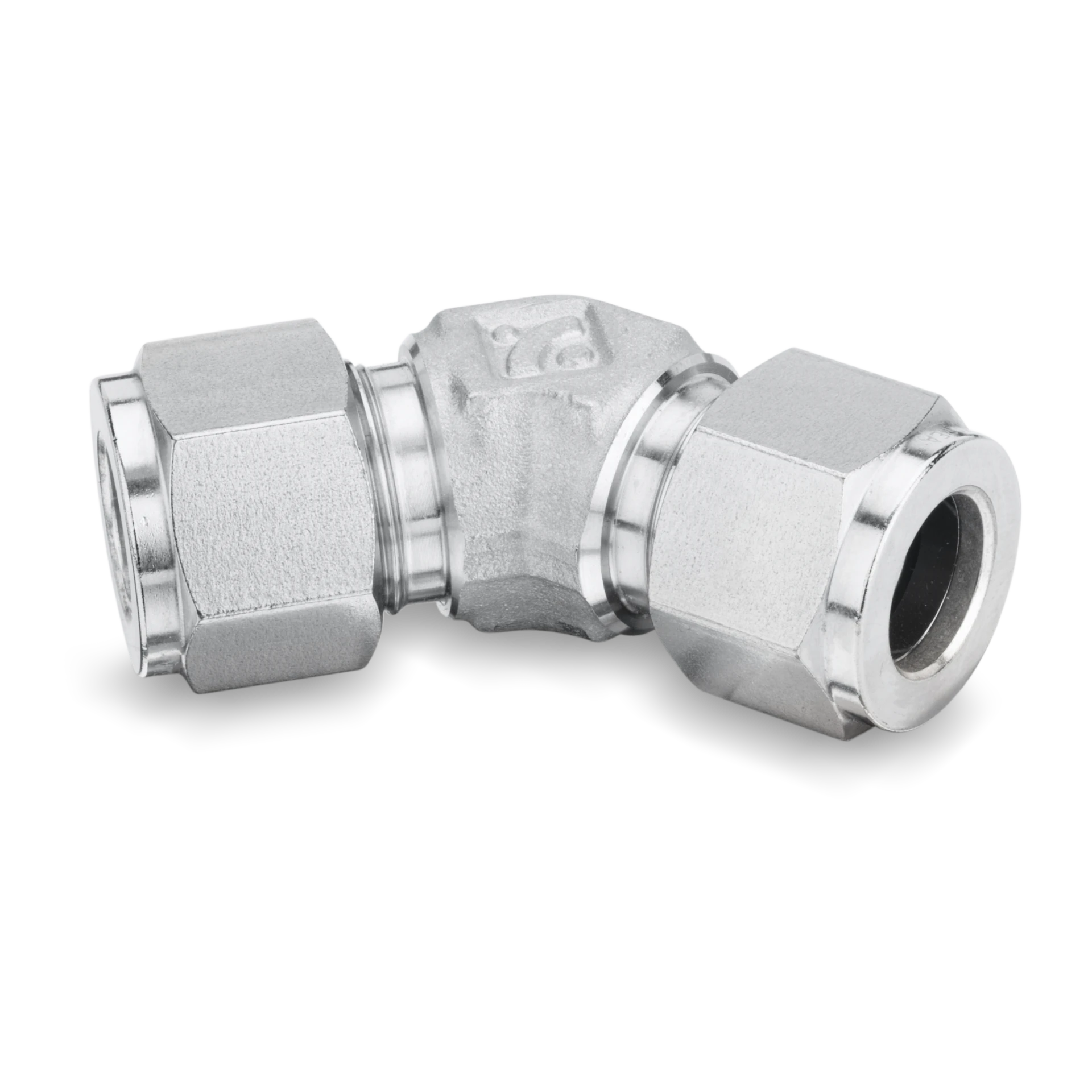

3/8 in O.D. 45 Degree Union Elbow
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Bi-Lok (Series D)® |
|---|
