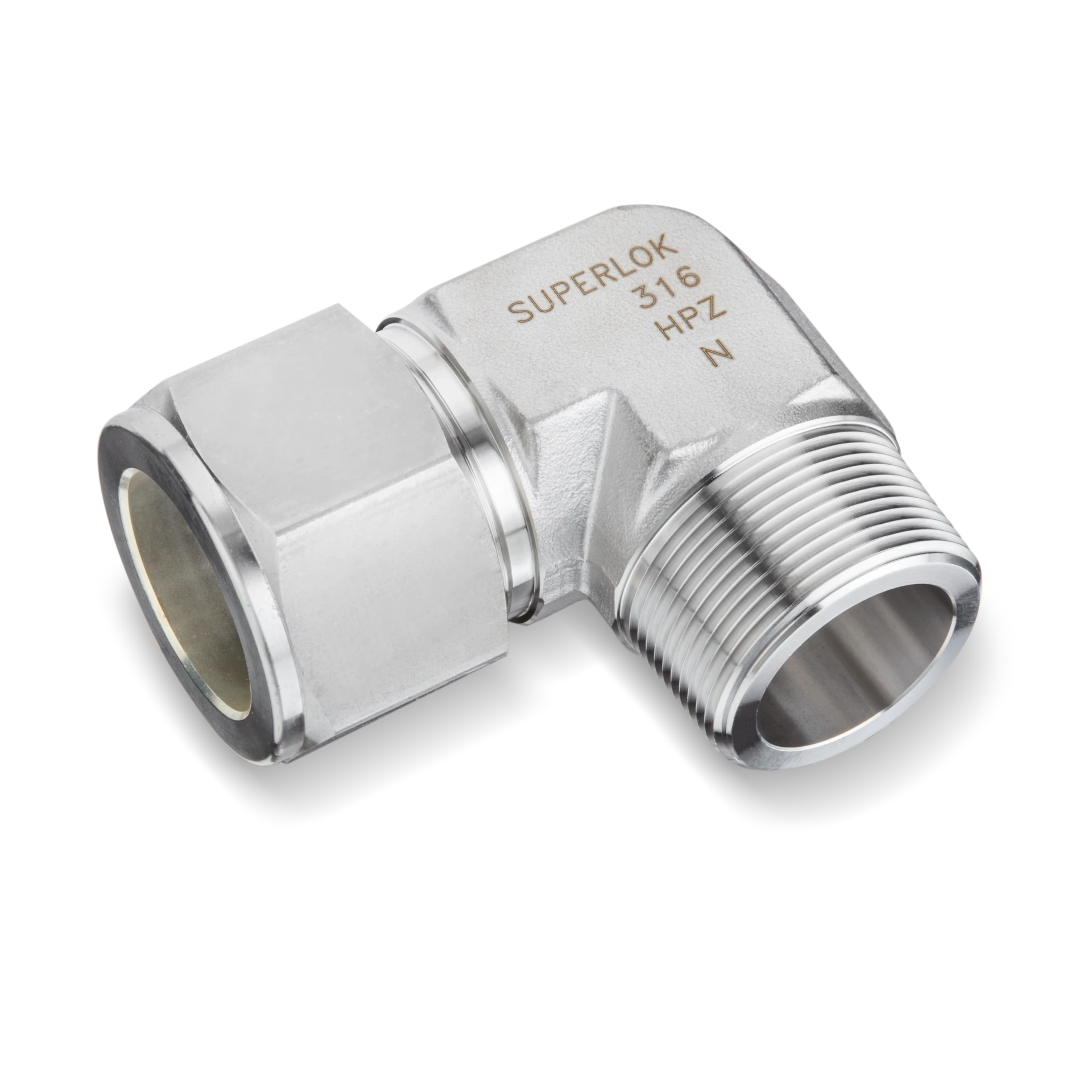

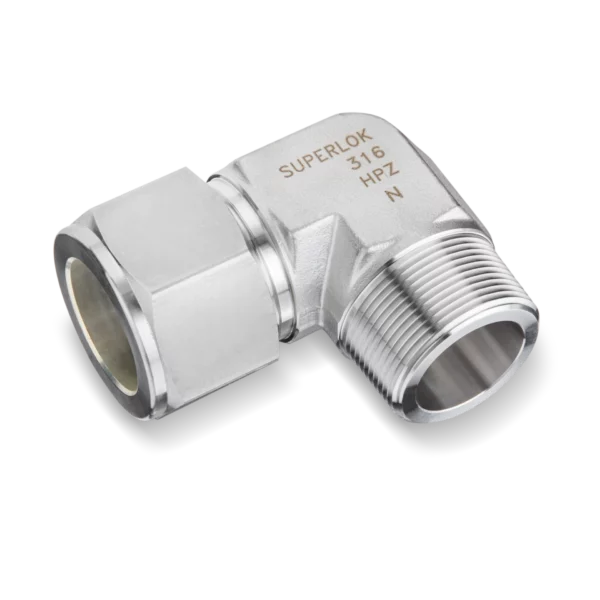

SME 90 Degree Male Elbows
SME 90 Degree Male Elbows
Access our complete line of 90 degree male elbow options for right-angle connections. Our male female elbow 90 degree solutions provide versatile flow direction control. Browse below to instantly request quotes or purchase any specific components you need.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Angle | 90? |
|---|---|
| Superlok Part Type | Male Elbows |
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Bi-Lok (Series D)® |
|---|
Available Sizes
SME 2-2N SME 90 Degree Male Elbows
- Type: 90° Male Elbow Fitting (1/8" Tube OD x 1/8" MNPT)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Design: Dual-ferrule compression elbow, precision-machined for tight routing
SME 2-4N SME 90 Degree Male Elbows

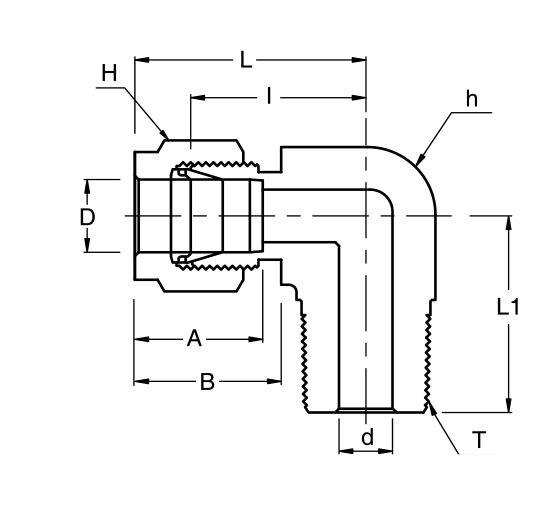

SME 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 3-2N SME 90 Degree Male Elbows
SME 3/16 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 3-4N SME 90 Degree Male Elbows
SME 3/16 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 4-2N SME 90 Degree Male Elbows
- Model: SME 4-2N (1/4" tube x 1/8" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (compact tube-to-thread elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-purity and high-pressure systems (based on tubing and thread specs)
- Size: 1/4" tube outer diameter (O.D.) x 1/8" Male NPT
- Finish: Clean, polished surface for sanitary integration
- Equivalent To: Swagelok® SS-400-2-2
SME 4-4N SME 90 Degree Male Elbows
- Model: SME 4-4N (1/4" tube x 1/4" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male NPT elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure and sanitary systems (dependent on tubing and thread specs)
- Size: 1/4" tube outer diameter (O.D.) x 1/4" Male NPT
- Finish: Clean, machined finish for sanitary environments
- Equivalent To: Swagelok® SS-400-2-4
SME 4-6N SME 90 Degree Male Elbows
SME 1/4 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 4-8N SME 90 Degree Male Elbows
SME 1/4 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 5-2N SME 90 Degree Male Elbows
SME 5/16 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 5-4N SME 90 Degree Male Elbows
SME 5/16 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 6-2N SME 90 Degree Male Elbows
- Model: SME 6-2N (3/8" tube x 1/8" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male NPT fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Connection Type: 3/8" Tube OD x 1/8" Male NPT
- Angle: 90°
SME 6-4N SME 90 Degree Male Elbows
- Model: SME 6-4N (3/8" tube x 1/4" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male NPT elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure and sanitary fluid systems (based on tubing and thread specs)
- Size: 3/8" tube outer diameter (O.D.) x 1/4" Male NPT
- Finish: Polished, hygienic-grade surface
- Equivalent To: Swagelok® SS-600-2-4
SME 6-6N SME 90 Degree Male Elbows
- Model: SME 6-6N (3/8" Tube Outside Diameter (OD) x 3/8" Male National Pipe Taper (MNPT))
- Type: 90-Degree Male Elbow (compression to tapered thread)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing and thread torque specs
- Design: Compact elbow with straight-threaded MNPT and dual-ferrule compression end
- Finish: Machined, passivated body with polished surface
SME 6-8N SME 90 Degree Male Elbows
- Model: SME 6-8N (3/8" tube x 1/2" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male NPT elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure, hygienic fluid systems (based on tubing and thread specs)
- Size: 3/8" tube outer diameter (O.D.) x 1/2" Male NPT
- Finish: Clean, polished surface for sanitary compatibility
- Equivalent To: Swagelok® SS-600-2-8
SME 6-12N SME 90 Degree Male Elbows
SME 3/8 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 6M-4N SME 90 Degree Male Elbows
SME 6 mm Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 6M-4R SME 90 Degree Male Elbows
SME 6 mm Tube Outside Diameter D x 1/4 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
SME 8-4N SME 90 Degree Male Elbows
SME 1/2 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 8-6N SME 90 Degree Male Elbows
- Model: SME 8-6N (1/2" tube OD x 3/8" MNPT, 316 stainless steel)
- Type: 90° Compression Elbow (tube-to-male NPT)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Design: Right-angle, dual-ferrule compression fitting
SME 8-8N SME 90 Degree Male Elbows
- Model: SME 8-8N (1/2" tube x 1/2" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male threaded elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure fluid and gas systems (based on tubing and thread specs)
- Size: 1/2" tube outer diameter (O.D.) x 1/2" Male NPT
- Finish: Machined, sanitary-grade surface
- Equivalent To: Swagelok® SS-810-2-8
SME 8-12N SME 90 Degree Male Elbows
SME 1/2 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 8M-4N SME 90 Degree Male Elbows
SME 8 mm Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 8M-6N SME 90 Degree Male Elbows
SME 8 mm Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 10-6N SME 90 Degree Male Elbows
SME 5/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 10-8N SME 90 Degree Male Elbows
SME 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 10-12N SME 90 Degree Male Elbows
SME 5/8 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 10M-6R SME 90 Degree Male Elbows
SME 10 mm Tube Outside Diameter D x 3/8 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
SME 12-8N SME 90 Degree Male Elbows
SME 3/4 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 12-12N SME 90 Degree Male Elbows
SME 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 12M-8R SME 90 Degree Male Elbows
SME 10 mm Tube Outside Diameter D x 1/2 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
SME 12M-12R SME 90 Degree Male Elbows
SME 12 mm Tube Outside Diameter D x 3/4 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
SME 14-12N SME 90 Degree Male Elbows
SME 7/8 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 16-12N SME 90 Degree Male Elbows
SME 1 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 16-16N SME 90 Degree Male Elbows
- Model: SME 16-16N (1" tube x 1" Male NPT, 316 stainless steel)
- Type: 90-Degree Male Elbow (tube-to-male NPT fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Connection Type: 1" Tube OD x 1" Male NPT
SME 18M-12R SME 90 Degree Male Elbows
SME 18 mm Tube Outside Diameter D x 3/4 in. Male British Standard Pipe Taper (MBSPT) Thread T 90 Degree Male Elbow
SME 20-20N SME 90 Degree Male Elbows
SME 1-1/4 in. Tube Outside Diameter D x 1-1/4 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 24-24N SME 90 Degree Male Elbows
SME 1-1/2 in. Tube Outside Diameter D x 1-1/2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
SME 32-32N SME 90 Degree Male Elbows
SME 2 in. Tube Outside Diameter D x 2 in. Male National Pipe Taper (MNPT) Thread T 90 Degree Male Elbow
