Specifications
| Angle | 90? |
|---|---|
| Inch/Metric | Inch |
| Outside Diameter Pipe Size (P) | 21.30mm |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 13/16in |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension I1 | 19.05mm |
| Dimension L | 36.06mm |
| Dimension L1 | 33.02mm |
| Dimension d [Min] | 10.41mm |
Description
(SMPWE-8-8P)

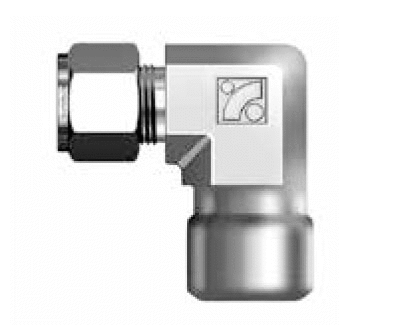

SMPWE Male Pipe Weld Elbows, Connects Fractional Tubes to Pipe
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | 810-2-8W |
|---|---|
| Parker (Alok)® | 8-1/2 ZELW2 |
| Hy-Lok® | CLW 8-8P |
| Tylok (CBC-Lok)® | 8-DTBWE-8 |
| Ham-Let (Let-Lok)® | 769LN 1/2 X 1/2 |
| Hoke (Gyrolok)® | 8LBW8 |
| Dk-Lok® | DLW8-8P |
| Bi-Lok (Series D)® | DLB-8-8 |
| SSP (DUlok)® | D8MPWE8 |
