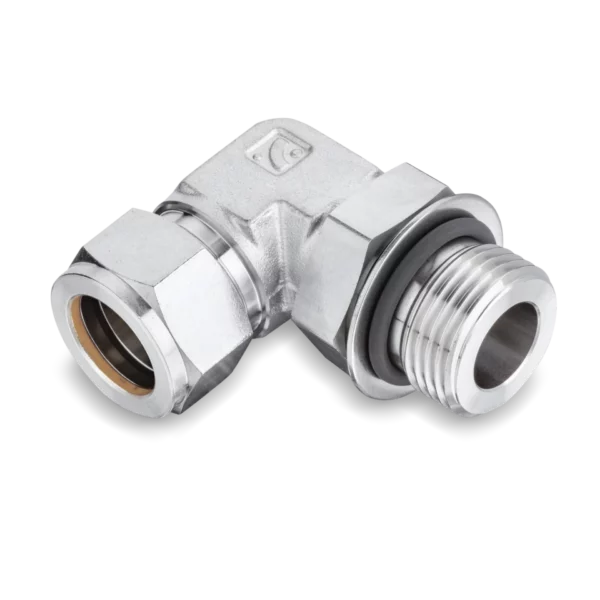

SPME Positionable 90 Degree Male Elbows

Access our complete line of SPME Positionable 90 Degree Male Elbows featuring precision-engineered designs. Our selection includes durable stainless steel elbows with 90-degree angle configurations for your fluid system. Browse below to instantly request a quote or purchase the positionable male elbows with industrial-grade construction.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17876 Category: Elbow Tube Fittings

Downloads

SPME-Positionable-90-Degree-Male-Elbows1.pdf

Click here for more info

Specifications

Angle	90?
Inch/Metric	Inch
Superlok Part Type	Positionable Male Elbows

Available Sizes

SPME 4-2G SPME Positionable 90 Degree Male Elbows

SPME 1/4 in. Tube Outside Diameter D x 1/8 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow

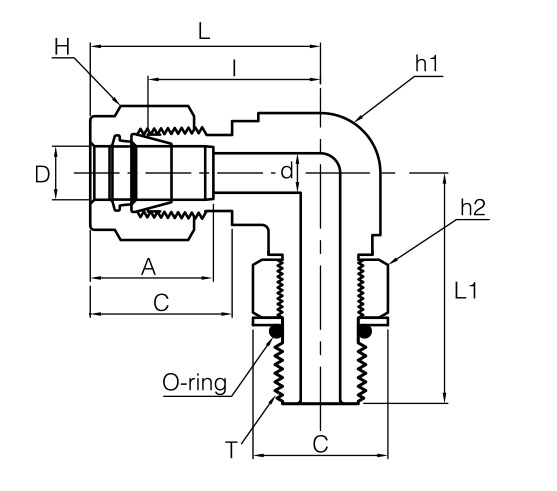

Dimension A	15.24mm
Dimension B	17.78mm
Dimension C	17.27mm
Dimension I	19.56mm
Dimension L	26.92mm
Dimension L1	26.42mm
Dimension d [Min]	4.06mm

Swagelok®	400-2-2PR
Parker (Alok)®	4MSEL2R
Ham-Let (Let-Lok)®	769LG 1/4 X 1/8 POS.
Dk-Lok®	DLM4-2GP

SPME 4-4G SPME Positionable 90 Degree Male Elbows

SPME 1/4 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow

Dimension A	15.24mm
Dimension B	17.78mm
Dimension C	22.86mm
Dimension I	21.59mm
Dimension L	28.96mm
Dimension L1	32.26mm
Dimension d [Min]	4.83mm

Swagelok®	400-2-4PR
Parker (Alok)®	4MSEL4R
Ham-Let (Let-Lok)®	769LG 1/4 X 1/4 POS.
Dk-Lok®	DLM4-4GP

SPME 4-4U SPME Positionable 90 Degree Male Elbows

SPME 1/4 in. Tube Outside Diameter D x 7/16-20 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	15.24mm
Dimension B	17.78mm
Dimension C	16.51mm
Dimension I	21.08mm
Dimension L	28.45mm
Dimension L1	28.45mm
Dimension d [Min]	4.83mm

Swagelok®	400-2-4ST
Parker (Alok)®	4M5SEL4
Hy-Lok®	CSLA 4-4U
Ham-Let (Let-Lok)®	769LOB 1/4 X 7/16-20 POS.
Hoke (Gyrolok)®	4LMS4
Dk-Lok®	DLS4-4UP
Bi-Lok (Series D)®	DLO-4-4
SSP (DUlok)®	D4MEST4

SPME 4-6U SPME Positionable 90 Degree Male Elbows

SPME 1/4 in. Tube Outside Diameter D x 9/16-18 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	15.24mm
Dimension B	17.78mm
Dimension C	20.07mm
Dimension I	23.11mm
Dimension L	30.48mm
Dimension L1	32.26mm
Dimension d [Min]	4.83mm

Parker (Alok)®	4M5SEL6
Hy-Lok®	CSLA 4-6U
Ham-Let (Let-Lok)®	769LOB 1/4 X 9/16-18 POS.
Hoke (Gyrolok)®	4LMS6
Dk-Lok®	DLS4-6UP
Bi-Lok (Series D)®	DLO-4-6
SSP (DUlok)®	D6MEST6

SPME 6-4G SPME Positionable 90 Degree Male Elbows

Model: SPME 6-4G (3/8" tube OD (Outer Diameter) x 1/4" Male BSPP thread)
Type: 90-Degree Positionable Male Elbow
Material: 316 Stainless Steel (corrosion-resistant alloy)
Thread Type: 1/4" Male British Standard Parallel Pipe (BSPP)
Tube Size: 3/8" Tube Outside Diameter (OD)
Pressure Rating: Based on tubing and thread torque specs
Finish: Machined, passivated, and polished

Dimension A	16.76mm
Dimension B	19.30mm
Dimension C	22.86mm
Dimension I	23.60mm
Dimension L	30.48mm
Dimension L1	32.26mm
Dimension d [Min]	5.84mm

Swagelok®	600-2-4PR
Parker (Alok)®	6MSEL4R
Ham-Let (Let-Lok)®	769LG 3/8 X 1/4 POS.
Dk-Lok®	DLM6-4GP

SPME 6-6U SPME Positionable 90 Degree Male Elbows

Model: SPME 6-6U (3/8" tube x 9/16-18 SAE/MS Male, 316 stainless steel)
Type: Positionable 90-Degree Elbow (tube-to-straight thread elbow fitting)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Pressure Rating: Suitable for high-pressure and hygienic systems (based on tubing and thread specs)
Size: 3/8" tube outer diameter (O.D.) x 9/16-18 SAE/MS Male
Finish: Polished, sanitary-grade surface
Equivalent To: Swagelok® SS-600-2-6U

Dimension A	16.76mm
Dimension B	19.30mm
Dimension C	20.07mm
Dimension I	24.64mm
Dimension L	32.00mm
Dimension L1	32.26mm
Dimension d [Min]	7.11mm

Swagelok®	600-2-6ST
Parker (Alok)®	6M5SEL6
Hy-Lok®	CSLA 6-6U
Ham-Let (Let-Lok)®	769LOB 3/8 X 9/16-18 POS.
Hoke (Gyrolok)®	6LMS6
Dk-Lok®	DLS6-6UP
Bi-Lok (Series D)®	DLO-6-6
SSP (DUlok)®	D6MEST6

SPME 6-8U SPME Positionable 90 Degree Male Elbows

SPME 3/8 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	16.76mm
Dimension B	19.30mm
Dimension C	25.65mm
Dimension I	27.43mm
Dimension L	34.80mm
Dimension L1	37.85mm
Dimension d [Min]	7.11mm

Swagelok®	600-2-8ST
Parker (Alok)®	6M5SEL8
Hy-Lok®	CSLA 6-8U
Ham-Let (Let-Lok)®	769LOB 3/8 X 3/4-16 POS.
Hoke (Gyrolok)®	6LMS8
Dk-Lok®	DLS6-8UP
Bi-Lok (Series D)®	DLO-6-8
SSP (DUlok)®	D6MEST8

SPME 8-4G SPME Positionable 90 Degree Male Elbows

SPME 1/2 in. Tube Outside Diameter D x 1/4 in. Male British Standard Parallel Pipe (MBSPP) Thread T 90 Degree Positionable Male Elbow

Dimension A	22.86mm
Dimension B	21.84mm
Dimension C	26.42mm
Dimension I	25.91mm
Dimension L	36.07mm
Dimension L1	35.05mm
Dimension d [Min]	5.84mm

Swagelok®	810-2-4PR
Parker (Alok)®	8MSEL4R
Ham-Let (Let-Lok)®	769LG 1/2 X 1/4 POS.
Dk-Lok®	DLM8-4GP

SPME 8-8U SPME Positionable 90 Degree Male Elbows

SPME 1/2 in. Tube Outside Diameter D x 3/4-16 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	22.86mm
Dimension B	21.84mm
Dimension C	25.65mm
Dimension I	27.43mm
Dimension L	37.59mm
Dimension L1	37.85mm
Dimension d [Min]	10.41mm

Swagelok®	810-2-8ST
Parker (Alok)®	8M5SEL8
Hy-Lok®	CSLA 8-8U
Ham-Let (Let-Lok)®	769LOB 1/2 X 3/4-16 POS.
Hoke (Gyrolok)®	8LMS8
Dk-Lok®	DLS8-8UP
Bi-Lok (Series D)®	DLO-8-8
SSP (DUlok)®	D8MEST8

SPME 10-10U SPME Positionable 90 Degree Male Elbows

SPME 5/8 in. Tube Outside Diameter D x 7/8-14 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	24.38mm
Dimension B	21.84mm
Dimension C	29.46mm
Dimension I	27.90mm
Dimension L	39.62mm
Dimension L1	43.43mm
Dimension d [Min]	12.70mm

Swagelok®	1010-2-10ST
Parker (Alok)®	10M5SEL10
Hy-Lok®	CSLA 10-10U
Hoke (Gyrolok)®	10LMS10
Dk-Lok®	DLS10-10UP
Bi-Lok (Series D)®	DLO-10-10
SSP (DUlok)®	D10MEST10

SPME 12-12U SPME Positionable 90 Degree Male Elbows

SPME 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	24.38mm
Dimension B	21.84mm
Dimension C	36.58mm
Dimension I	29.7mm
Dimension L	41.40mm
Dimension L1	48.77mm
Dimension d [Min]	15.75mm

Swagelok®	1210-2-12ST
Parker (Alok)®	12M5SEL12
Hy-Lok®	CSLA 12-12U
Ham-Let (Let-Lok)®	769LOB 3/4 X 1 1/16-12 POS.
Hoke (Gyrolok)®	12LMS12
Dk-Lok®	DLS12-12UP
Bi-Lok (Series D)®	DLO-12-12
SSP (DUlok)®	D12MEST12

SPME 16-16U SPME Positionable 90 Degree Male Elbows

SPME 1 in. Tube Outside Diameter D x 1-5/16-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Dimension A	31.24mm
Dimension B	26.42mm
Dimension C	43.94mm
Dimension I	36.80mm
Dimension L	50.55mm
Dimension L1	53.59mm
Dimension d [Min]	22.35mm

Swagelok®	1610-2-16ST
Parker (Alok)®	16M5SEL16
Hy-Lok®	CSLA 16-16U
Ham-Let (Let-Lok)®	769LOB 1 X 1 1/16-12 POS.
Hoke (Gyrolok)®	16LMS16
Dk-Lok®	DLS16-16UP
Bi-Lok (Series D)®	DLO-16-16
SSP (DUlok)®	D16MEST16

SPME 20-20U SPME Positionable 90 Degree Male Elbows

SPME 1-1/4 in. Tube Outside Diameter D x 1-5/8-12 Society of Automotive Engineering (SAE) Thread T Positionable 90 Degree Male Elbow

Angle	90?
End Size	, 44204in
End Type	International Standardization of Organization (ISO) Parallel Thread (U)
Inch/Metric	Inch
Tube Outside Diameter D	1/4in
Width Across Flats H	9/16in
Width Across Flats h1	9/16in
Width Across Flats h2	9/16in

Angle	90?
End Size	, 44200in
End Type	International Standardization of Organization (ISO) Parallel Thread (U)
Inch/Metric	Inch
Tube Outside Diameter D	1/4in
Width Across Flats H	9/16in
Width Across Flats h1	3/4in
Width Across Flats h2	9/16in

Angle	90?
End Size	44028, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	1/4in
Width Across Flats H	9/16in
Width Across Flats h1	9/16in
Width Across Flats h2	9/16in

Angle	90?
End Size	43359, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	1/4in
Width Across Flats H	9/16in
Width Across Flats h1	11/16in
Width Across Flats h2	9/16in

Angle	90?
End Size	, 44200in
End Type	International Standardization of Organization (ISO) Parallel Thread (U)
Inch/Metric	Inch
Tube Outside Diameter D	3/8in
Width Across Flats H	11/16in
Width Across Flats h1	3/4in
Width Across Flats h2	11/16in

Angle	90?
End Size	42433, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	3/8in
Width Across Flats H	11/16in
Width Across Flats h1	7/8in
Width Across Flats h2	11/16in

Angle	90?
End Size	41828, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	5/8in
Width Across Flats H	1in
Width Across Flats h1	1in
Width Across Flats h2	1in

Angle	90?
End Size	1-1/16-12, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	3/4in
Width Across Flats H	1-1/8in
Width Across Flats h1	1-1/4in
Width Across Flats h2	1-1/8in

Angle	90?
End Size	1-5/16-12, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	1in
Width Across Flats H	1-1/2in
Width Across Flats h1	1-1/2in
Width Across Flats h2	1-1/2in

Dimension A	41.15mm
Dimension B	38.86mm
Dimension C	54.86mm
Dimension I	45.72mm
Dimension L	67.82mm
Dimension L1	58.17mm
Dimension d [Min]	27.69mm

Angle	90?
End Size	1-5/8-12, in
End Type	Society of Automotive Engineering (SAE)/MS Straight Thread
Inch/Metric	Inch
Tube Outside Diameter D	1 1/4in
Width Across Flats H	1-7/8in
Width Across Flats h1	1-7/8in
Width Across Flats h2	1-7/8in

Parker (Alok)®	20M5SEL20
Hy-Lok®	CSLA 20-20U
Hoke (Gyrolok)®	20LMBS20
Dk-Lok®	DLS20-20UP
Bi-Lok (Series D)®	DLO-20-20
SSP (DUlok)®	D20MEST20
