SSWE-8

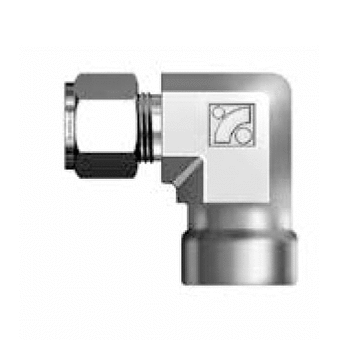

SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow
Specifications
| Angle | 90? |
|---|---|
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/2in |
| Width Across Flats h | 13/16in |
Dimensions
| Dimension A | 22.86mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension I | 25.90mm |
| Dimension I1 | 12.70mm |
| Dimension L | 36.06mm |
| Dimension L1 | 25.90mm |
| Dimension P | 20.57mm |
| Dimension d [Min] | 10.41mm |
Description
(SSWE-8)
SSWE 1/2 in. Tube Outside Diameter D x 1/2 in. Tube Socket Weld 90 Degree Elbow
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-810-9-8W |
|---|---|
| Parker (Alok)® | 8-8 ZELW2 |
| Hy-Lok® | CLSW 8-8 |
| Tylok (CBC-Lok)® | 8-DTSWE-8 |
| Ham-Let (Let-Lok)® | 769LW 1/2 X 1/2 |
| Hoke (Gyrolok)® | 8LW8 |
| Dk-Lok® | DLSW8-8 |
| Bi-Lok (Series D)® | DLW-8 |
| SSP (DUlok)® | D8TSWE8 |
