SUE-12M

SUE-12M - Image 2

SUE-12M - Image 3

SUE-12M

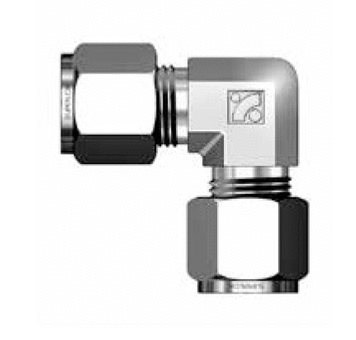

SUE 12 mm Tube Outside Diameter D 90 Degree Union Elbow

SKU: SUE-12M Category: Elbow Tube Fittings

Downloads

SUE-90-Degree-Union-Elbows.pdf

Click here for more info

Specifications

Angle	90?
Inch/Metric	Metric
Tube Outside Diameter D	in, 12mm
Width Across Flats h	in, 20.6mm

Dimensions

SUE-12M

Dimension A	22.8mm
Dimension B	22.0mm
Dimension I	25.90mm
Dimension L	36.0mm
Dimension d [Min]	9.5mm

Description

(SUE-12M)

SUE 12 mm Tube Outside Diameter D 90 Degree Union Elbow
