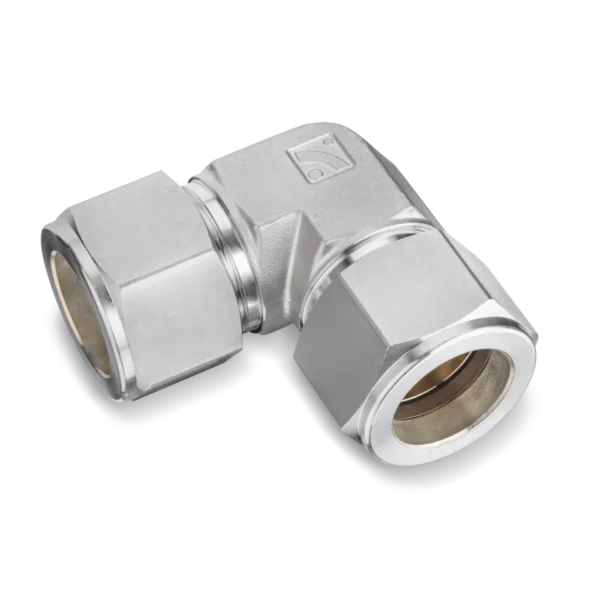

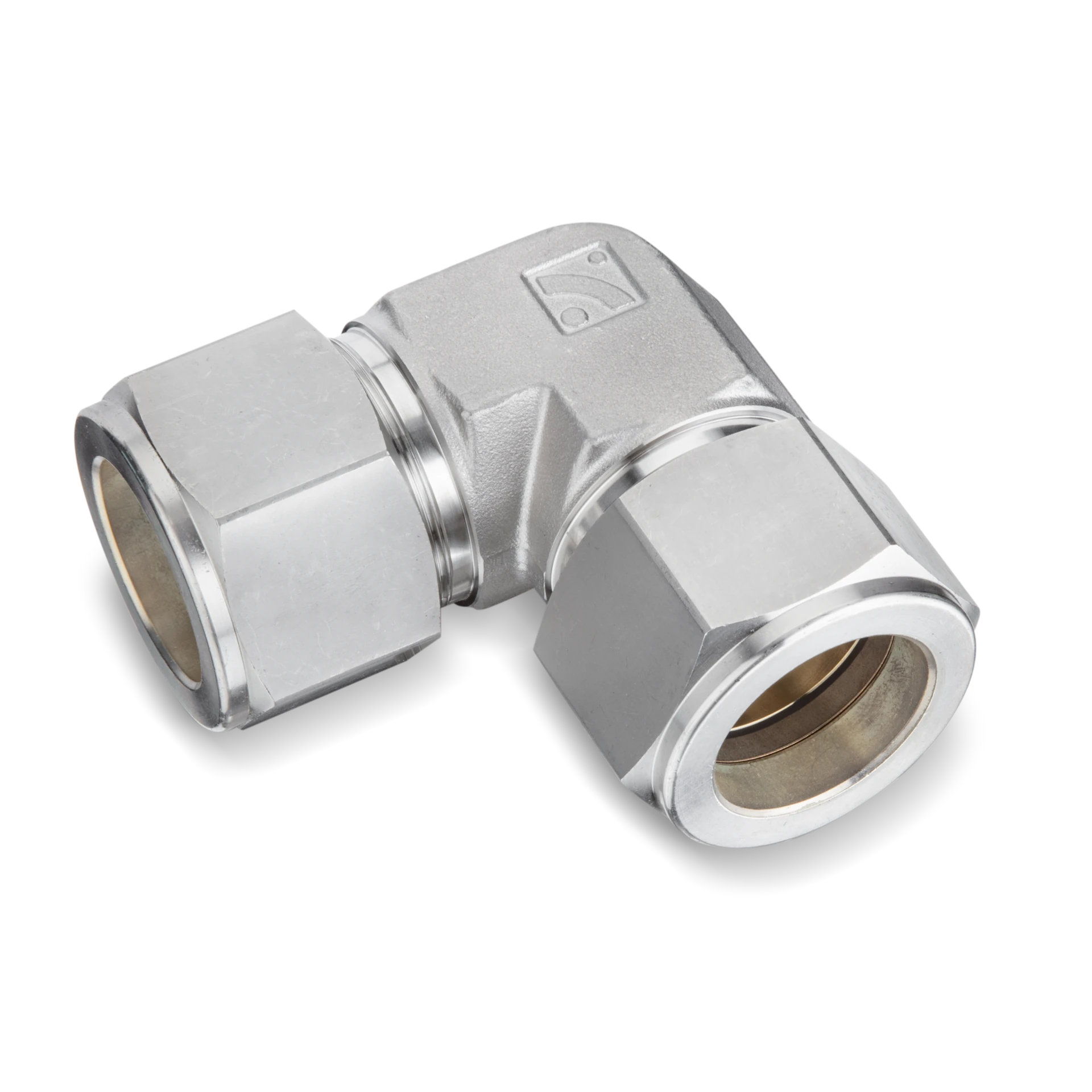

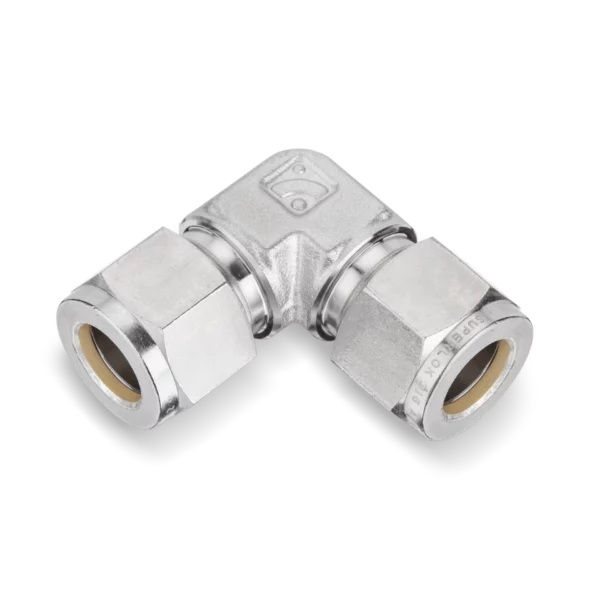

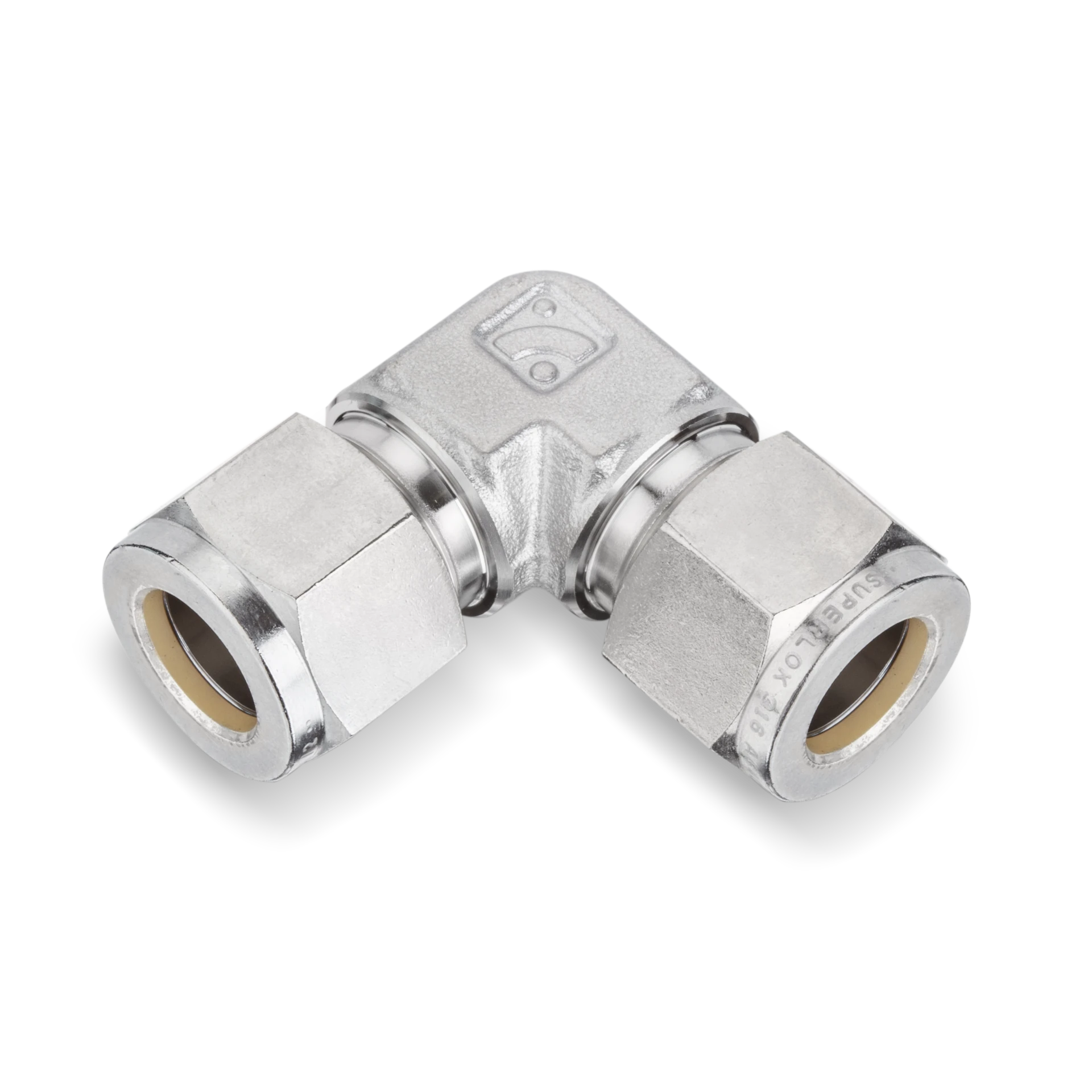

SUE 90 Degree Union Elbows
SUE 90 Degree Union Elbows
Access our complete line of 90 degree union elbow fittings for your right-angle connections. Our ensures easy installation and maintenance for your fluid system. Browse below to instantly request quotes or purchase the 90 degree union elbow you need.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Angle | 90? |
|---|---|
| Superlok Part Type | Union Elbows |
Available Sizes
SUE-4 SUE 90 Degree Union Elbows
- Model: SUE-4 (1/4" tube union elbow, 316 stainless steel)
- Type: 90-Degree Union Elbow (tube-to-tube compression fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for sanitary and industrial pressure systems (based on tubing specs)
- Size: 1/4" tube outer diameter (O.D.) x 1/4" tube O.D.
- Finish: Polished, hygienic-grade surface
- Equivalent To: Swagelok® SS-400-9
SUE-6 SUE 90 Degree Union Elbows
- Model: SUE-6 (3/8" tube union elbow, 316 stainless steel)
- Type: 90-Degree Union Elbow (tube-to-tube elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for sanitary and industrial pressure systems (based on tubing specs)
- Size: 3/8" tube outer diameter (O.D.) x 3/8" tube O.D.
- Finish: Precision-machined, hygienic-grade surface
- Equivalent To: Swagelok® SS-600-9
SUE-8 SUE 90 Degree Union Elbows
- Model: SUE-8 (1/2" tube union elbow, 316 stainless steel)
- Type: Union Elbow (90-degree connection between two tubes)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure systems (dependent on tubing)
- Size: 1/2" tube outer diameter (O.D.)
- Finish: Smooth, sanitary-grade surface for clean-in-place compatibility
- Equivalent To: Swagelok® SS-810-9
SUE-12 SUE 90 Degree Union Elbows
- Model: SUE-12 (3/4" tube OD x 3/4" tube OD)
- Type: 90° Union Elbow (compression fitting for tube-to-tube corner routing)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing specs and ferrule engagement
- Finish: Machined and polished for industrial and sanitary systems
SUE-16 SUE 90 Degree Union Elbows
- Model: SUE-16 (1" tube union elbow, 316 stainless steel)
- Type: 90-Degree Union Elbow (tube-to-tube elbow fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Built for high-purity and high-pressure systems (dependent on tubing)
- Size: 1" tube outer diameter (O.D.) x 1" tube O.D.
- Finish: Sanitary-grade polished surface
- Equivalent To: Swagelok® SS-16-9
SUE-24 SUE 90 Degree Union Elbows
- Model: SUE-24 (1-1/2" tube OD, 316 stainless steel)
- Type: 90° Compression Union Elbow (tube-to-tube)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Tube Size: 1-1/2" OD
