SBR 6-6

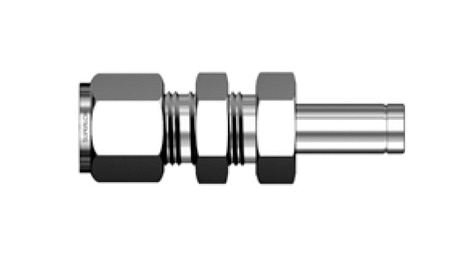

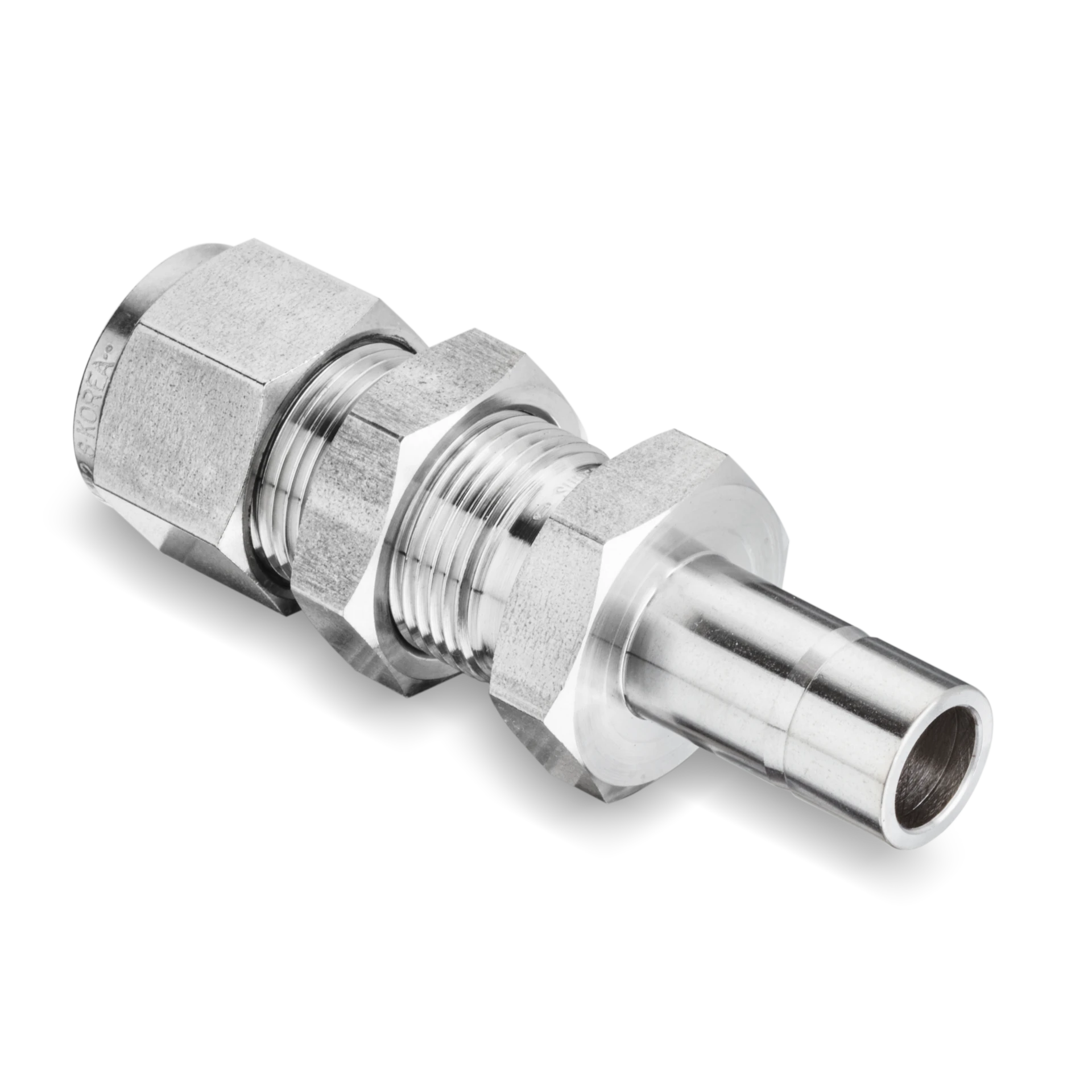

SBR 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Stub Bulkhead Reducer
Specifications
| Inch/Metric | Inch |
|---|---|
| Pannel Hole Drill Size | 14.68mm |
| Pannel Thickness [Max] | 11.17mm |
| Tube Outside Diameter D | 3/8in |
| Width Across Flats h | 3/4in |

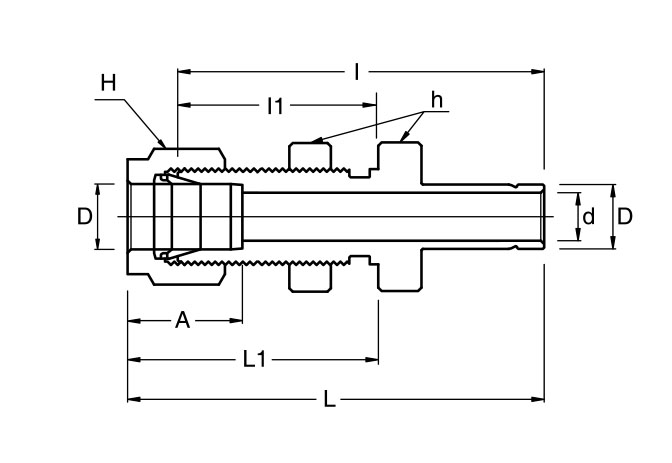

Dimensions
| Dimension A | 16.76mm |
|---|---|
| Dimension I | 53.84mm |
| Dimension I1 | 29.46mm |
| Dimension L | 61.21mm |
| Dimension L1 | 36.83mm |
| Dimension d [Min] | 6.9mm |
Description
(SBR 6-6)
SBR 3/8 in. Tube Outside Diameter D x 3/8 in. Tube Stub Bulkhead Reducer
