Specifications
| Inch/Metric | Inch |
|---|---|
| Tube Outside Diameter D | 1/4in, mm |
| Tube Outside Diameter D1 | 3/16in |
| Width Across Flats h | 1/2in, mm |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 30.22mm |
| Dimension L | 37.59mm |
| Dimension d1 [Min] | 3.0mm |
| Dimension d [Min] | 4.83mm |
Description
(SR 4-3)

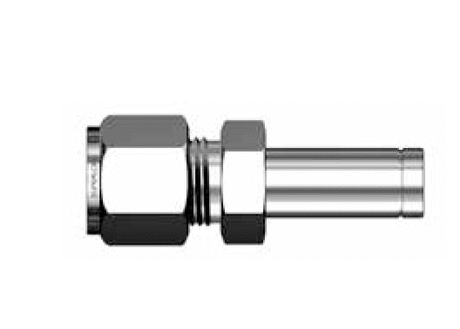

SR 1/4 in. Tube Outside Diameter D x 3/16 in. Tube Stub Reducer
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-400-R-3 |
|---|---|
| Parker (Alok)® | 3TUR4 |
| Hy-Lok® | CUR 4-3 |
| Tylok (CBC-Lok)® | 4-DRATT-3 |
| Ham-Let (Let-Lok)® | 767LT 1/4 X 3/16 |
| Hoke (Gyrolok)® | 4R3 |
| Dk-Lok® | DR4-3 |
| Bi-Lok (Series D)® | DRE-4-3 |
| SSP (DUlok)® | D4R3 |
