Superlok Part Type	Fitting Cap

Available Sizes

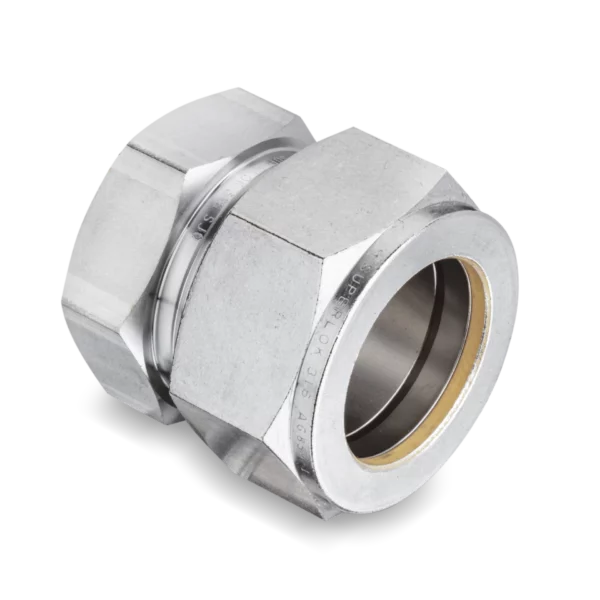

SC-1 SC Fitting Caps

SC 1/16 in. Tube Outside Diameter D Fitting Cap

Dimension A	8.63mm
Dimension B	10.92mm
Dimension I	11.20mm
Dimension L	14.98mm

Inch/Metric	Inch
Tube Outside Diameter D	1/16in, mm
Width Across Flats h	5/16in, mm

Swagelok®	100-C
Parker (Alok)®	1BLEN1
Hy-Lok®	CCA-1
Tylok (CBC-Lok)®	1-DCAP
Ham-Let (Let-Lok)®	7108L 1/16
Hoke (Gyrolok)®	1CP
Dk-Lok®	DC-1
Bi-Lok (Series D)®	DCA-1
SSP (DUlok)®	D1CP

SC-2 SC Fitting Caps

SC 1/8 in. Tube Outside Diameter D Fitting Cap

Dimension A	12.70mm
Dimension B	15.24mm
Dimension I	13.46mm
Dimension L	20.06mm

Inch/Metric	Inch
Tube Outside Diameter D	1/8in, mm
Width Across Flats h	7/16in, mm

Swagelok®	200-C
Parker (Alok)®	2BLEN2
Hy-Lok®	CCA-2
Tylok (CBC-Lok)®	2-DCAP
Ham-Let (Let-Lok)®	7108L 1/8
Hoke (Gyrolok)®	2CP
Dk-Lok®	DC-2
Bi-Lok (Series D)®	DCA-2
SSP (DUlok)®	D2CP

SC-4 SC Fitting Caps

SC 1/4 in. Tube Outside Diameter D Fitting Cap

Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	16.00mm
Dimension L	23.36mm

Inch/Metric	Inch
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	1/2in, mm

Swagelok®	400-C
Parker (Alok)®	4BLEN 4
Hy-Lok®	CCA-4
Tylok (CBC-Lok)®	4-DCAP
Ham-Let (Let-Lok)®	7108L 1/4
Hoke (Gyrolok)®	4CP
Dk-Lok®	DC-4
Bi-Lok (Series D)®	DCA-4
SSP (DUlok)®	D4CP

SC-6 SC Fitting Caps

Model: SC-6 (3/8" Tube OD Compression Cap)
Type: End Cap for Compression Fittings
Material: 316 Stainless Steel (corrosion-resistant alloy)
Design: Dual-ferrule compression seal for leak-tight shutoff

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	18.28mm
Dimension L	25.65mm

Inch/Metric	Inch
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	5/8in, mm

Swagelok®	600-C
Parker (Alok)®	6BLEN6
Hy-Lok®	CCA-6
Tylok (CBC-Lok)®	6-DCAP
Ham-Let (Let-Lok)®	7108L 3/8
Hoke (Gyrolok)®	6CP
Dk-Lok®	DC-6
Bi-Lok (Series D)®	DCA-6
SSP (DUlok)®	D6CP

SC-6M SC Fitting Caps

SC 6 mm Tube Outside Diameter D Fitting Cap

Dimension A	15.3mm
Dimension B	17.7mm
Dimension I	15.7mm
Dimension L	23.1mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 6mm
Width Across Flats h	in, 14mm

SC-8 SC Fitting Caps

SC 1/2 in. Tube Outside Diameter D Fitting Cap

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	19.05mm
Dimension L	29.21mm

Inch/Metric	Inch
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	13/16in, mm

Swagelok®	810-C
Parker (Alok)®	8BLEN8
Hy-Lok®	CCA-8
Tylok (CBC-Lok)®	8-DCAP
Ham-Let (Let-Lok)®	7108L 1/2
Hoke (Gyrolok)®	8CP
Dk-Lok®	DC-8
Bi-Lok (Series D)®	DCA-8
SSP (DUlok)®	D8CP

SC-8M SC Fitting Caps

SC 8 mm Tube Outside Diameter D Fitting Cap

Dimension A	16.2mm
Dimension B	18.6mm
Dimension I	17.0mm
Dimension L	24.5mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 8mm
Width Across Flats h	in, 15mm

SC-10 SC Fitting Caps

SC 5/8 in. Tube Outside Diameter D Fitting Cap

Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	19.81mm
Dimension L	29.97mm

Inch/Metric	Inch
Tube Outside Diameter D	5/8in, mm
Width Across Flats h	15/16in, mm

Swagelok®	1010-C
Parker (Alok)®	10BLEN10
Hy-Lok®	CCA-10
Tylok (CBC-Lok)®	10-DCAP
Ham-Let (Let-Lok)®	7108L 5/8
Hoke (Gyrolok)®	10CP
Dk-Lok®	DC-10
Bi-Lok (Series D)®	DCA-10
SSP (DUlok)®	D10CP

SC-10M SC Fitting Caps

SC 10 mm Tube Outside Diameter D Fitting Cap

Dimension A	17.2mm
Dimension B	19.5mm
Dimension I	19.0mm
Dimension L	26.6mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 10mm
Width Across Flats h	in, 18mm

SC-12 SC Fitting Caps

SC 3/4 in. Tube Outside Diameter D Fitting Cap

Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	23.33mm
Dimension L	33.49mm

Inch/Metric	Inch
Tube Outside Diameter D	3/4in, mm
Width Across Flats h	1-1/16in, mm

Swagelok®	1210-C
Parker (Alok)®	12BLEN12
Hy-Lok®	CCA-12
Tylok (CBC-Lok)®	12-DCAP
Ham-Let (Let-Lok)®	7108L 3/4
Hoke (Gyrolok)®	12CP
Dk-Lok®	DC-12
Bi-Lok (Series D)®	DCA-12
SSP (DUlok)®	D12CP

SC-12M SC Fitting Caps

SC 12 mm Tube Outside Diameter D Fitting Cap

Dimension A	22.8mm
Dimension B	22.0mm
Dimension I	19.0mm
Dimension L	29.1mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 12mm
Width Across Flats h	in, 22mm

SC-14 SC Fitting Caps

SC 7/8 in. Tube Outside Diameter D Fitting Cap

Dimension A	25.90mm
Dimension B	21.84mm
Dimension I	23.87mm
Dimension L	34.03mm

Inch/Metric	Inch
Tube Outside Diameter D	7/8in, mm
Width Across Flats h	1-3/16in, mm

Swagelok®	1410-C
Parker (Alok)®	14BLEN14
Hy-Lok®	CCA-14
Tylok (CBC-Lok)®	14-DCAP
Ham-Let (Let-Lok)®	7108L 7/8
Hoke (Gyrolok)®	14CP
Dk-Lok®	DC-14
Bi-Lok (Series D)®	DCA-14
SSP (DUlok)®	D14CP

SC-16 SC Fitting Caps

SC 1 in. Tube Outside Diameter D Fitting Cap

Dimension A	31.24mm
Dimension B	26.41mm
Dimension I	26.16mm
Dimension L	38.35mm

Swagelok®	1610-C
Parker (Alok)®	16BLEN16
Hy-Lok®	CCA-16
Tylok (CBC-Lok)®	16-DCAP
Ham-Let (Let-Lok)®	7108L 1
Hoke (Gyrolok)®	16CP
Dk-Lok®	DC-16
Bi-Lok (Series D)®	DCA-16
SSP (DUlok)®	D16CP
