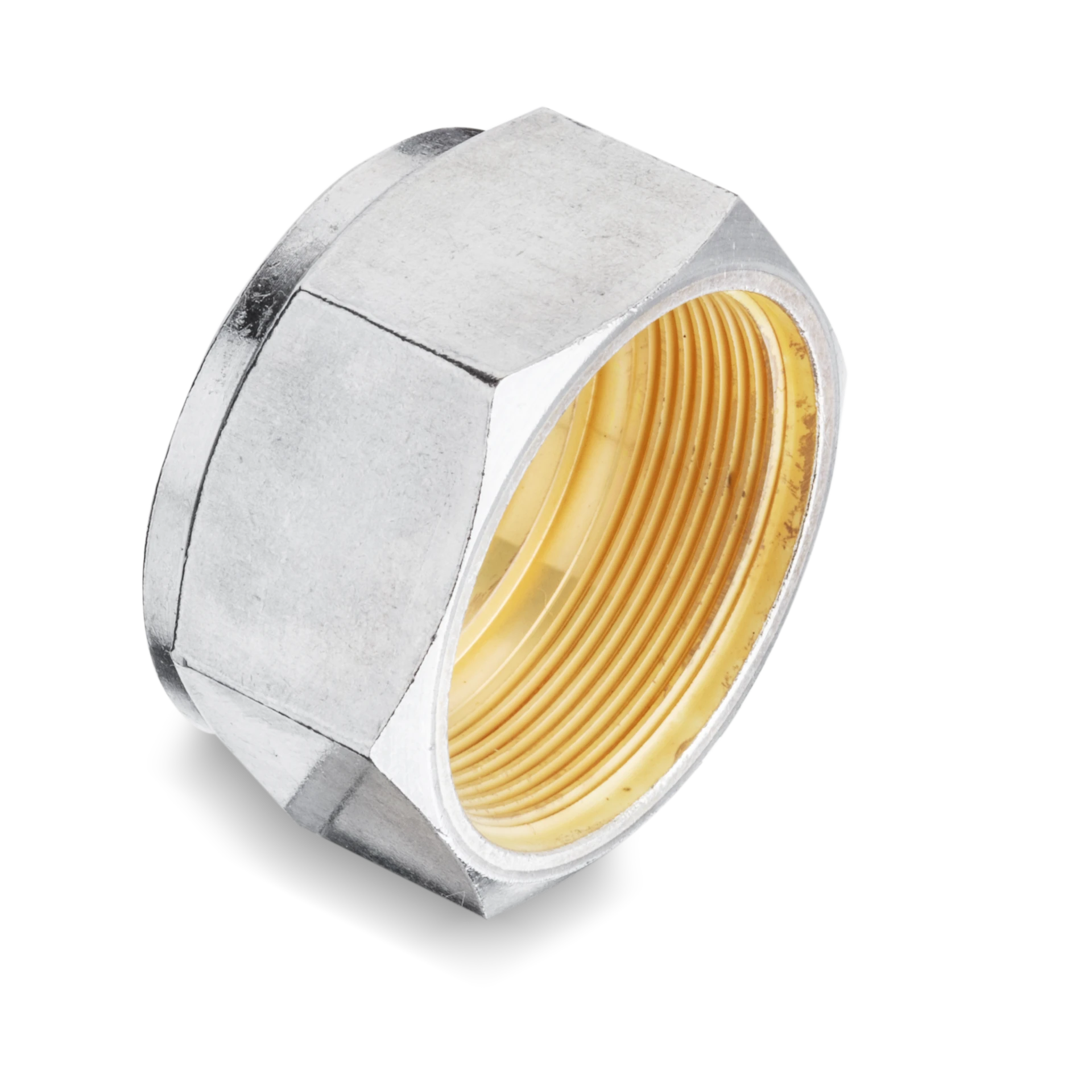

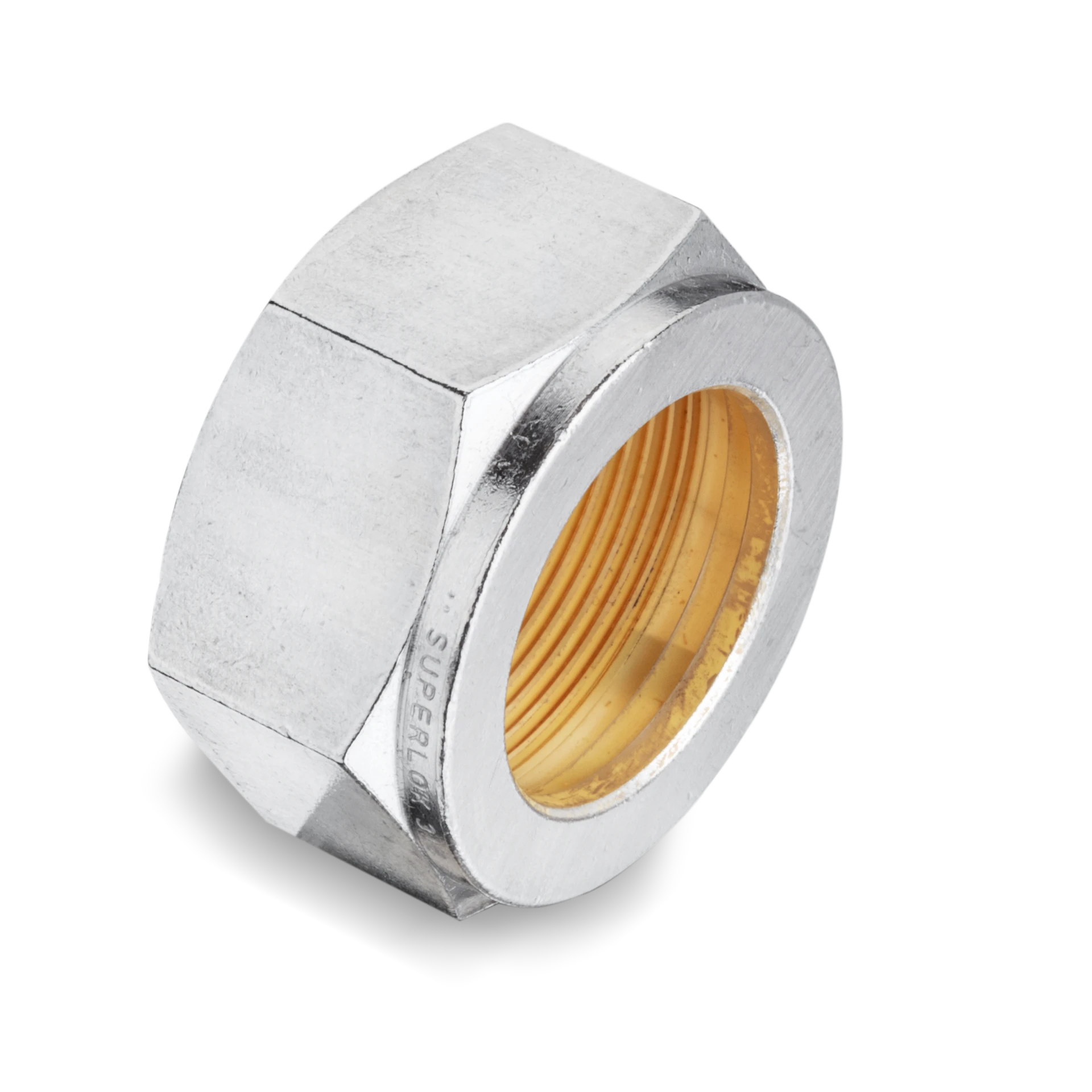

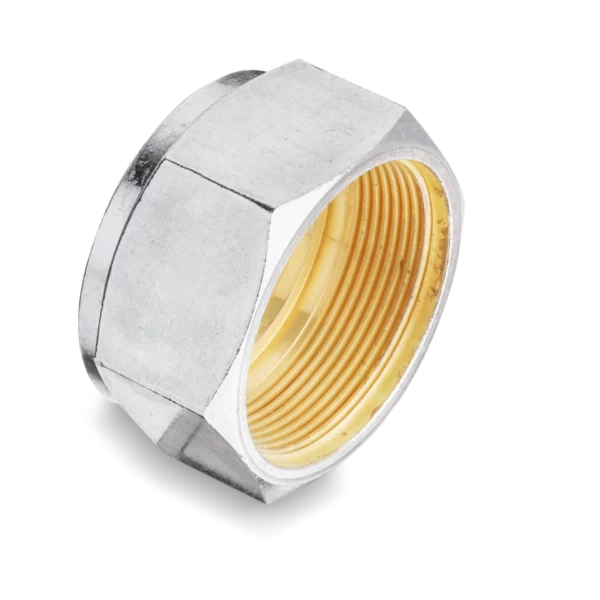

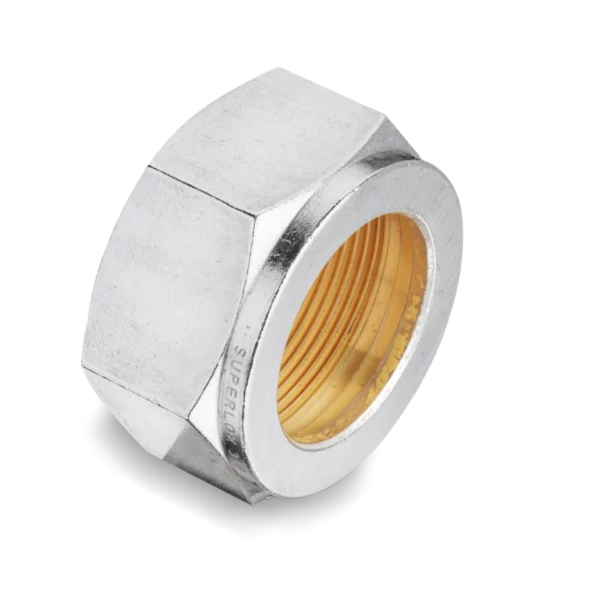

SN Nuts

SN Nuts

Print Page Email Page

SKU: 18163 Category: Tube Fittings

Downloads

SN-Nuts.pdf

Click here for more info

Specifications

Superlok Part Type	Nut

Available Sizes

SN-1 SN Nuts

SN 1/16 in. Tube Outside Diameter D Nut

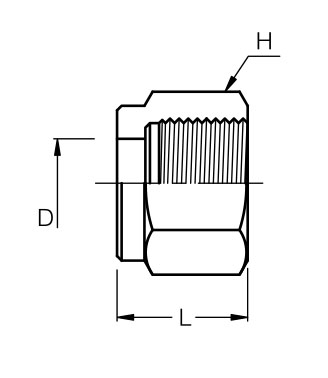

Dimension L	7.90mm

Inch/Metric	Inch
Tube Outside Diameter D	1/16in, mm
Width Across Flats h	5/16in, mm

Swagelok®	102-1
Parker (Alok)®	1NU1
Hy-Lok®	CN-1
Tylok (CBC-Lok)®	DN-1
Ham-Let (Let-Lok)®	761L 1/16
Hoke (Gyrolok)®	1N
Dk-Lok®	DN-1
Bi-Lok (Series D)®	DNA-1
SSP (DUlok)®	D1N

SN-2 SN Nuts

SN 1/8 in. Tube Outside Diameter D Nut

Dimension L	11.93mm

Inch/Metric	Inch
Tube Outside Diameter D	1/8in, mm
Width Across Flats h	7/16in, mm

Swagelok®	202-1
Parker (Alok)®	2NU2
Hy-Lok®	CN-2
Tylok (CBC-Lok)®	DN-2
Ham-Let (Let-Lok)®	761L 1/8
Hoke (Gyrolok)®	2N
Dk-Lok®	DN-2
Bi-Lok (Series D)®	DNA-2
SSP (DUlok)®	D2N

SN-3 SN Nuts

SN 3/16 in. Tube Outside Diameter D Nut

Dimension L	11.93mm

Inch/Metric	Inch
Tube Outside Diameter D	3/16in, mm
Width Across Flats h	1/2in, mm

Swagelok®	302-1
Parker (Alok)®	3NU3
Hy-Lok®	CN-3
Tylok (CBC-Lok)®	DN-3
Ham-Let (Let-Lok)®	761L 3/16
Hoke (Gyrolok)®	3N
Dk-Lok®	DN-3
Bi-Lok (Series D)®	DNA-3
SSP (DUlok)®	D3N

SN-4 SN Nuts

Model: SN-4 (1/4" tube nut, 316 stainless steel)
Type: Compression Tube Nut (for instrumentation and process fittings)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Tube Size: 1/4" outer diameter (O.D.)
Equivalent To: Swagelok® style compression nut

Dimension L	12.7mm

Inch/Metric	Inch
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	9/16in, mm

Swagelok®	402-1
Parker (Alok)®	4NU4
Hy-Lok®	CN-4
Tylok (CBC-Lok)®	DN-4
Ham-Let (Let-Lok)®	761L 1/4
Hoke (Gyrolok)®	4N
Dk-Lok®	DN-4
Bi-Lok (Series D)®	DNA-4
SSP (DUlok)®	D4N

SN-5 SN Nuts

SN 5/16 in. Tube Outside Diameter D Nut

Dimension L	13.50mm

Inch/Metric	Inch
Tube Outside Diameter D	5/16in, mm
Width Across Flats h	5/8in, mm

Swagelok®	502-1
Parker (Alok)®	5NU5
Hy-Lok®	CN-5
Tylok (CBC-Lok)®	DN-5
Ham-Let (Let-Lok)®	761L 5/16
Hoke (Gyrolok)®	5N
Dk-Lok®	DN-5
Bi-Lok (Series D)®	DNA-5
SSP (DUlok)®	D5N

SN-6 SN Nuts

Model: SN-6 (3/8" tube nut, 316 stainless steel)
Type: Compression Tube Nut (for instrumentation and process assemblies)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Tube Size: 3/8" outer diameter (O.D.)
Equivalent To: Swagelok® alternative compression nut

Dimension L	14.22mm

Inch/Metric	Inch
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	11/16in, mm

Swagelok®	602-1
Parker (Alok)®	6NU6
Hy-Lok®	CN-6
Tylok (CBC-Lok)®	DN-6
Ham-Let (Let-Lok)®	761L 3/8
Hoke (Gyrolok)®	6N
Dk-Lok®	DN-6
Bi-Lok (Series D)®	DNA-6
SSP (DUlok)®	D6N

SN-6M SN Nuts

SN 6 mm Tube Outside Diameter D Nut

Dimension L	12.7mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 6mm
Width Across Flats h	in, 14mm

SN-8 SN Nuts

SN 1/2 in. Tube Outside Diameter D Nut

Dimension L	17.3mm

Inch/Metric	Inch
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	7/8in, mm

Swagelok®	812-1
Parker (Alok)®	8NU8
Hy-Lok®	CN-8
Tylok (CBC-Lok)®	DN-8
Ham-Let (Let-Lok)®	761L 1/2
Hoke (Gyrolok)®	8N
Dk-Lok®	DN-8
Bi-Lok (Series D)®	DNA-8
SSP (DUlok)®	D8N

SN-8M SN Nuts

SN 8 mm Tube Outside Diameter D Nut

Dimension L	13.50mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 8mm
Width Across Flats h	in, 16mm

SN-10 SN Nuts

SN 5/8 in. Tube Outside Diameter D Nut

Dimension L	17.52mm

Inch/Metric	Inch
Tube Outside Diameter D	5/8in, mm
Width Across Flats h	1in, mm

Swagelok®	1012-1
Parker (Alok)®	10NU10
Hy-Lok®	CN-10
Tylok (CBC-Lok)®	DN-10
Ham-Let (Let-Lok)®	761L 5/8
Hoke (Gyrolok)®	10N
Dk-Lok®	DN-10
Bi-Lok (Series D)®	DNA-10
SSP (DUlok)®	D10N

SN-10M SN Nuts

SN 10 mm Tube Outside Diameter D Nut

Dimension L	15.10mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 10mm
Width Across Flats h	in, 19mm

SN-12 SN Nuts

SN 3/4 in. Tube Outside Diameter D Nut

Dimension L	17.52mm

Inch/Metric	Inch
Tube Outside Diameter D	3/4in, mm
Width Across Flats h	1-1/8in, mm

Swagelok®	1212-1
Parker (Alok)®	12NU12
Hy-Lok®	CN-12
Tylok (CBC-Lok)®	DN-12
Ham-Let (Let-Lok)®	761L 3/4
Hoke (Gyrolok)®	12N
Dk-Lok®	DN-12
Bi-Lok (Series D)®	DNA-12
SSP (DUlok)®	D12N

SN-12M SN Nuts

SN 12 mm Tube Outside Diameter D Nut

Dimension L	17.50mm

Inch/Metric	Metric
Tube Outside Diameter D	in, 12mm
Width Across Flats h	in, 22mm

SN-14 SN Nuts

SN 7/8 in. Tube Outside Diameter D Nut

Dimension L	17.52mm

Inch/Metric	Inch
Tube Outside Diameter D	7/8in, mm
Width Across Flats h	1-1/4in, mm

Swagelok®	1412-1
Parker (Alok)®	14NU14
Hy-Lok®	CN-14
Tylok (CBC-Lok)®	DN-14
Ham-Let (Let-Lok)®	761L 7/8
Hoke (Gyrolok)®	14N
Dk-Lok®	DN-14
Bi-Lok (Series D)®	DNA-14
SSP (DUlok)®	D14N

SN-16 SN Nuts

SN 1 in. Tube Outside Diameter D Nut

Swagelok®	1612-1
Parker (Alok)®	16NU16
Hy-Lok®	CN-16
Tylok (CBC-Lok)®	DN-16
Ham-Let (Let-Lok)®	761L 1
Hoke (Gyrolok)®	16N
Dk-Lok®	DN-16
Bi-Lok (Series D)®	DNA-16
SSP (DUlok)®	D16N
