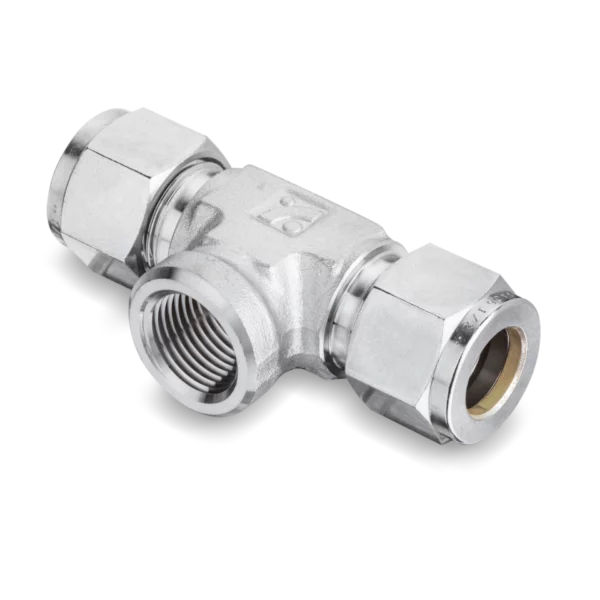

SFBT Female Branch Tees

Access our complete line of female branch tee fitting solutions for three-way flow connections. Our selection enables versatile system configurations for your fluid system. Browse below to instantly request quotes or purchase the component you need.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17944 Category: Tee Tube Fittings

Downloads

SFBT-Female-Branch-Tees.pdf

Click here for more info

Specifications

End Type	National Pipe Thread (NPT)
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Superlok Part Type	Female Tee

Available Sizes

SFBT 2-2N SFBT Female Branch Tees

SFBT 1/8 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	12.70mm
Dimension B	15.24mm
Dimension I	18.03mm
Dimension L	24.63mm
Dimension L1	19.05mm
Dimension d [Min]	2.28mm

End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/8in, mm
Width Across Flats h	1/2in, mm

Swagelok®	200-3TTF
Parker (Alok)®	2FBT2N
Hy-Lok®	CBTF 2-2N
Tylok (CBC-Lok)®	2-DTTF-2
Ham-Let (Let-Lok)®	772LF 1/8 X 1/8
Hoke (Gyrolok)®	2TTF2
Dk-Lok®	DTBF2-2N
Bi-Lok (Series D)®	DTH-2-2
SSP (DUlok)®	D2FBT2

SFBT 4-2N SFBT Female Branch Tees

SFBT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	19.55mm
Dimension L	26.92mm
Dimension L1	19.05mm
Dimension d [Min]	4.82mm

End Size	44204in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	1/2in, mm

Swagelok®	400-3TTF
Parker (Alok)®	4FBT2N
Hy-Lok®	CBTF 4-2N
Tylok (CBC-Lok)®	4-DTTF-2
Ham-Let (Let-Lok)®	772LF 1/4 X 1/8
Hoke (Gyrolok)®	4TTF2
Dk-Lok®	DTBF4-2N
Bi-Lok (Series D)®	DTH-4-2
SSP (DUlok)®	D4FBT2

SFBT 4-4N SFBT Female Branch Tees

SFBT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	22.35mm
Dimension L	29.71mm
Dimension L1	22.35mm
Dimension d [Min]	4.82mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in, mm
Width Across Flats h	11/16in, mm

Swagelok®	400-3-4TTF
Parker (Alok)®	4FBT4N
Hy-Lok®	CBTF 4-4N
Tylok (CBC-Lok)®	4-DTTF-4
Ham-Let (Let-Lok)®	772LF 1/4 X 1/4
Hoke (Gyrolok)®	4TTF4
Dk-Lok®	DTBF4-4N
Bi-Lok (Series D)®	DTH-4-4
SSP (DUlok)®	D4FBT4

SFBT 6-4N SFBT Female Branch Tees

Model: SFBT 6-4N (3/8" tube x 1/4" FNPT branch, 316 stainless steel)
Type: Female Branch Tee (tube-to-female NPT tee fitting)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Connection Type: 3/8" Tube OD x 1/4" FNPT Branch

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	23.87mm
Dimension L	31.24mm
Dimension L1	22.35mm
Dimension d [Min]	7.11mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	11/16in, mm

Swagelok®	600-3TTF
Parker (Alok)®	6FBT4N
Hy-Lok®	CBTF 6-4N
Tylok (CBC-Lok)®	6-DTTF-4
Ham-Let (Let-Lok)®	772LF 3/8 X 1/4
Hoke (Gyrolok)®	6TTF4
Dk-Lok®	DTBF6-4N
Bi-Lok (Series D)®	DTH-6-4
SSP (DUlok)®	D6FBT4

SFBT 6-6N SFBT Female Branch Tees

SFBT 3/8 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	25.90mm
Dimension L	33.27mm
Dimension L1	22.35mm
Dimension d [Min]	7.11mm

End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	13/16in, mm

Swagelok®	600-3-6TTF
Parker (Alok)®	6FBT6N
Hy-Lok®	CBTF 6-6N
Tylok (CBC-Lok)®	6-DTTF-6
Ham-Let (Let-Lok)®	772LF 3/8 X 3/8
Hoke (Gyrolok)®	6TTF6
Dk-Lok®	DTBF6-6N
Bi-Lok (Series D)®	DTH-6-6
SSP (DUlok)®	D6FBT6

SFBT 6-8N SFBT Female Branch Tees

SFBT 3/8 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	28.70mm
Dimension L	36.07mm
Dimension L1	28.45mm
Dimension d [Min]	7.11mm

End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in, mm
Width Across Flats h	1in, mm

Swagelok®	600-3-8TTF
Parker (Alok)®	6FBT8N
Hy-Lok®	CBTF 6-8N
Tylok (CBC-Lok)®	6-DTTF-8
Ham-Let (Let-Lok)®	772LF 3/8 X 1/4
Hoke (Gyrolok)®	6TTF8
Dk-Lok®	DTBF6-8N
Bi-Lok (Series D)®	DTH-6-8
SSP (DUlok)®	D6FBT8

SFBT 6M-4N SFBT Female Branch Tees

SFBT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	15.3mm
Dimension B	17.7mm
Dimension I	22.4mm
Dimension L	29.8mm
Dimension L1	22.4mm
Dimension d [Min]	4.8mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Metric
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	in, 6mm
Width Across Flats h	in, 17.46mm

SFBT 8-4N SFBT Female Branch Tees

Model: SFBT 8-4N (1/2" tube OD x 1/4" FNPT branch, 316 stainless steel)
Type: Female Branch Tee (tube-to-female NPT configuration)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Connection Type: 1/2" Tube OD x 1/4" Female NPT (Branch)
Standards: ANSI B1.20.1 Threaded Compliance

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension L1	22.35mm
Dimension d [Min]	10.41mm

End Size	44200in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	13/16in, mm

Swagelok®	810-3-4TTF
Parker (Alok)®	8FBT4N
Hy-Lok®	CBTF 8-4N
Tylok (CBC-Lok)®	8-DTTF-4
Ham-Let (Let-Lok)®	772LF 1/2 X 1/4
Hoke (Gyrolok)®	8TTF4
Dk-Lok®	DTBF8-4N
Bi-Lok (Series D)®	DTN-8-4
SSP (DUlok)®	D8FBT4

SFBT 8-6N SFBT Female Branch Tees

SFBT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension L1	22.35mm
Dimension d [Min]	10.41mm

End Size	44263in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	13/16in, mm

Swagelok®	810-3TTF
Parker (Alok)®	8FBT6N
Hy-Lok®	CBTF 8-6N
Tylok (CBC-Lok)®	8-DTTF-6
Ham-Let (Let-Lok)®	772LF 1/2 X 3/8
Hoke (Gyrolok)®	8TTF-6
Dk-Lok®	DTBF8-6N
Bi-Lok (Series D)®	DTH-8-6
SSP (DUlok)®	D8FBT6

SFBT 8-8N SFBT Female Branch Tees

SFBT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	28.70mm
Dimension L	38.86mm
Dimension L1	28.44mm
Dimension d [Min]	10.41mm

End Size	44198in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in, mm
Width Across Flats h	1in, mm

Swagelok®	810-3-8TTF
Parker (Alok)®	8FBT8N
Hy-Lok®	CBTF 8-8N
Tylok (CBC-Lok)®	8-DTTF-8
Ham-Let (Let-Lok)®	772LF 1/2 X 1/2
Hoke (Gyrolok)®	8TTF8
Dk-Lok®	DTBF8-8N
Bi-Lok (Series D)®	DTH-8-8
SSP (DUlok)®	D8FBT8

SFBT 12-8N SFBT Female Branch Tees

SFBT 3/4 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

SFBT 12-12N SFBT Female Branch Tees

SFBT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	34.54mm
Dimension L	44.70mm
Dimension L1	31.75mm
Dimension d [Min]	15.74mm

End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/4in, mm
Width Across Flats h	1-3/8in, mm

Swagelok®	1210-3TTF
Parker (Alok)®	12FBT12N
Hy-Lok®	CBTF 12-12N
Tylok (CBC-Lok)®	12-DTTF-12
Ham-Let (Let-Lok)®	772LF 3/4 X 3/4
Hoke (Gyrolok)®	12TTF12
Dk-Lok®	DTBF12-12N
Bi-Lok (Series D)®	DTH-12-12
SSP (DUlok)®	D12FBT12

SFBT 16-12N SFBT Female Branch Tees

SFBT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Dimension A	31.24mm
Dimension B	26.41mm
Dimension I	36.83mm
Dimension L	49.02mm
Dimension L1	31.75mm
Dimension d [Min]	22.35mm

End Size	44259in
End Type	National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1in, mm
Width Across Flats h	1-3/8in, mm

Swagelok®	1610-3-12TTF
Parker (Alok)®	16FBT12N
Hy-Lok®	CBTF 16-12N
Tylok (CBC-Lok)®	16-DTTF-12
Ham-Let (Let-Lok)®	772LF 1 X 3/4
Hoke (Gyrolok)®	16TTF12
Dk-Lok®	DTBF16-12N
Bi-Lok (Series D)®	DTH-16-12
SSP (DUlok)®	D16FBT12

SFBT 16-16N SFBT Female Branch Tees

SFBT 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread Female Branch Tee

Swagelok®	1610-3TTF
Parker (Alok)®	16FBT16N
Hy-Lok®	CBTF 16-16N
Tylok (CBC-Lok)®	16-DTTF-16
Ham-Let (Let-Lok)®	772LF 1 X 1
Hoke (Gyrolok)®	16TTF16
Dk-Lok®	DTBF16-16N
Bi-Lok (Series D)®	DTH-16-16
SSP (DUlok)®	D16FBT16
