SFRT 6-4N
Stainless Steel Female Run Tee – 3/8" Tube x 1/4" FNPT
- Model: SFRT 6-4N (3/8" tube OD x 1/4" female NPT)
- Type: Female Run Tee (tube-to-female-threaded connection)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing and thread specs
- Size: 3/8" tube OD (branch and one run) x 1/4" FNPT (other run)
- Finish: Polished, suitable for sanitary and industrial use
| End Size | 44200in |
|---|---|
| End Type | National Pipe Thread (NPT) |
| Inch/Metric | Inch |
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |

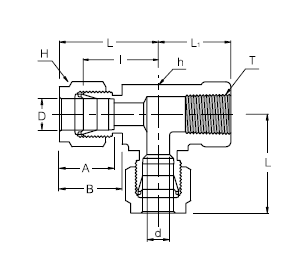

| Tube Outside Diameter D | 3/8in, mm |
| Width Across Flats h | 11/16in, mm |
| Dimension A | 16.76mm |
|---|---|
| Dimension B | 19.30mm |
| Dimension I | 23.87mm |
| Dimension L | 31.24mm |
| Dimension L1 | 22.35mm |
| Dimension d [Min] | 7.11mm |

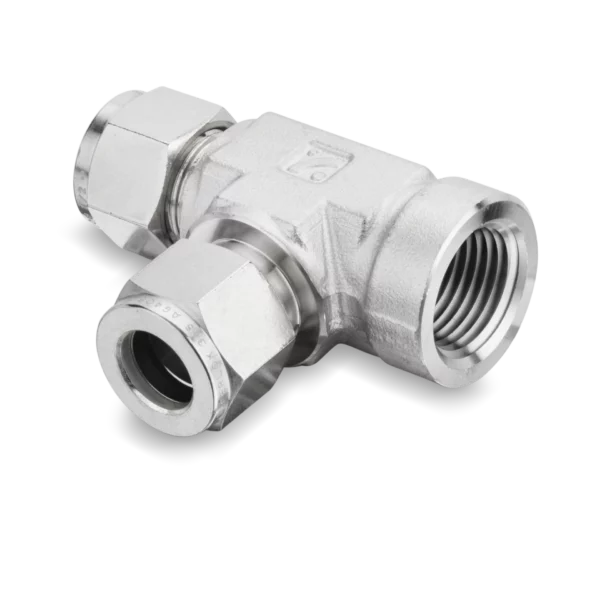

Stainless Steel Female Run Tee – 3/8" Tube x 1/4" FNPT (SFRT 6-4N)
The SFRT 6-4N is a stainless steel female run tee designed for precise, leak-tight integration of tube and pipe thread connections. This tee features two 3/8" compression tube ends and one 1/4" FNPT threaded run, allowing engineers to merge tubing with pipe-threaded instruments, valves, or sensors without needing thread adapters.
Machined from solid 316 stainless steel, this fitting delivers corrosion resistance, high pressure tolerance, and long-term performance in both sanitary and rugged industrial systems. It’s built for engineers who need reliable transitions between compression and NPT systems—without sacrificing cleanliness or mechanical strength.
The SFRT 6-4N supports clean-in-place (CIP) cycles, vibration-prone environments, and rapid system servicing. It’s fully reusable, with consistent sealing and torque repeatability across maintenance cycles.
Key Benefits
- Converts compression tubing to a female NPT outlet in a tee format
- Made from 316 stainless steel for sanitary and industrial durability
- Handles high pressure and frequent thermal cycling
- Compression ends offer leak-tight, sealant-free installation
- FNPT port accepts standard 1/4" threaded instrumentation or flow control
- Polished finish minimizes fluid contamination risk in hygienic systems
- Reusable for system upgrades or maintenance without degrading seal integrity
Typical Applications
- OEM (Original Equipment Manufacturer). process skids and fluid panels
- Instrumentation manifolds and valve trees
- Clean-in-Place (CIP) process loops
- Food-grade and pharmaceutical fluid control
- Gas sampling and measurement systems
- Biotech and laboratory-grade fluid routing
| Swagelok® | 600-3TFT |
|---|---|
| Parker (Alok)® | 6FRT4N |
| Hy-Lok® | CRTF 6-4N |
| Tylok (CBC-Lok)® | 6-DTFT-4 |
| Ham-Let (Let-Lok)® | 771LF 3/8 X 1/4 |
| Hoke (Gyrolok)® | 6TFT4 |
| Dk-Lok® | DTRF6-4N |
| Bi-Lok (Series D)® | DTF-6-4 |
| SSP (DUlok)® | D6FRT4 |
