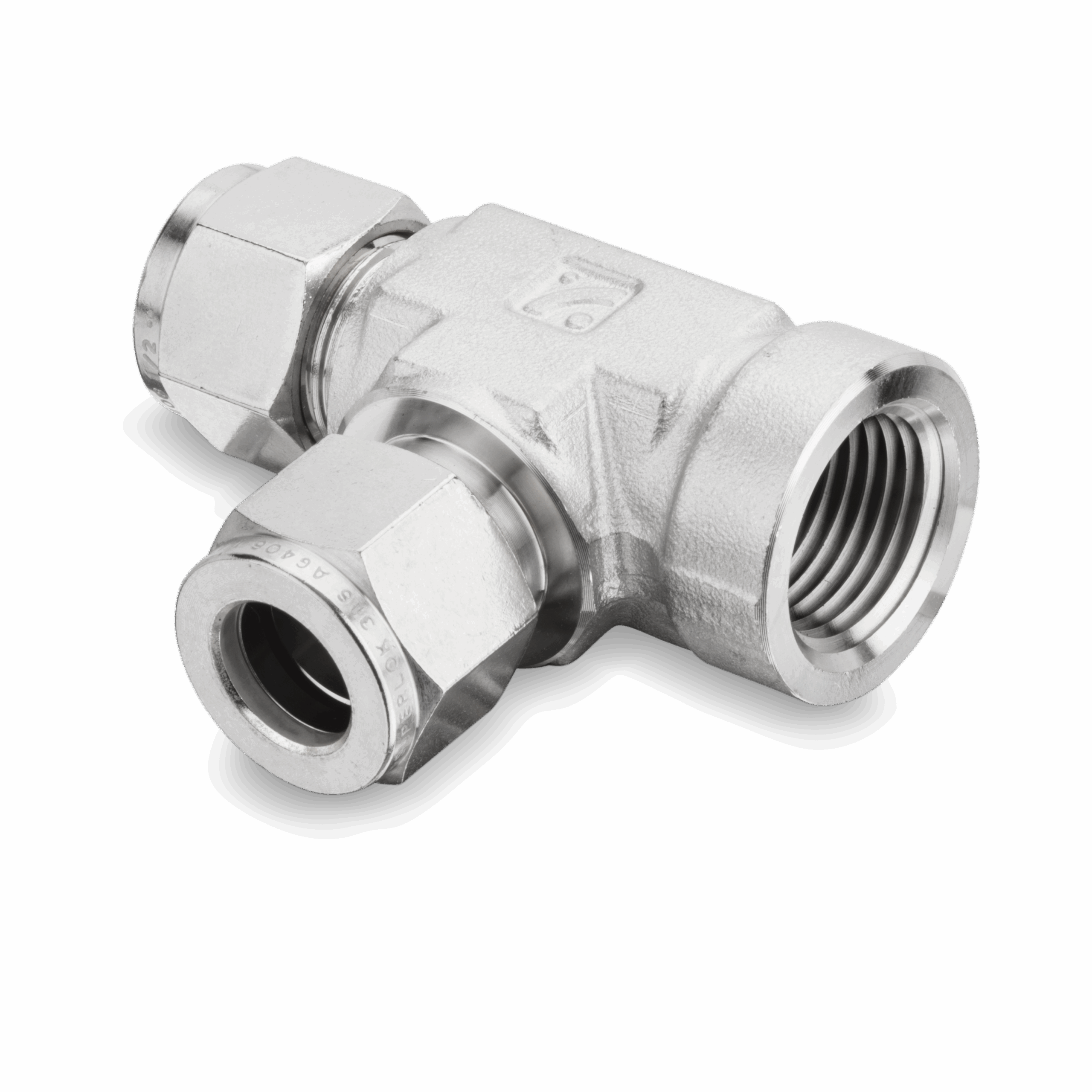

Female Run Tee – SFRT Female Run Tees
The Female Run Tee is a versatile pipe fitting designed for fluid and gas branching in high-pressure applications. With FNPT female threads, it ensures secure, leak-proof connections for hydraulic, pneumatic, and industrial systems. Made from 316 stainless steel, it offers exceptional corrosion resistance and withstands harsh environments. Its high-precision design allows for efficient fluid flow and easy installation in chemical processing, HVAC, and fluid distribution systems.
Browse all Female Run Tees below to find the ideal configuration for your application.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| End Type | National Pipe Thread (NPT) |
|---|---|
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |
| Superlok Part Type | Female Tee |
Available Sizes
SFRT 4-2N SFRT Female Run Tees
SFRT 1/4 in. Tube Outside Diameter D x 1/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 4-4N SFRT Female Run Tees
SFRT 1/4 in. Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 6-4N SFRT Female Run Tees
- Model: SFRT 6-4N (3/8" tube OD x 1/4" female NPT)
- Type: Female Run Tee (tube-to-female-threaded connection)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing and thread specs
- Size: 3/8" tube OD (branch and one run) x 1/4" FNPT (other run)
- Finish: Polished, suitable for sanitary and industrial use
SFRT 6M-4N SFRT Female Run Tees
SFRT 6 mm Tube Outside Diameter D x 1/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 8-6N SFRT Female Run Tees
SFRT 1/2 in. Tube Outside Diameter D x 3/8 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 8-8N SFRT Female Run Tees
SFRT 1/2 in. Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 12-12N SFRT Female Run Tees
SFRT 3/4 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 12M-8N SFRT Female Run Tees
SFRT 12 mm Tube Outside Diameter D x 1/2 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 16-12N SFRT Female Run Tees
SFRT 1 in. Tube Outside Diameter D x 3/4 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
SFRT 16-16N SFRT Female Run Tees
SFRT 1 in. Tube Outside Diameter D x 1 in. Female National Pipe Taper (FNPT) Thread Female Run Tee
