Male Branch Tee – SMBT Male Branch Tees

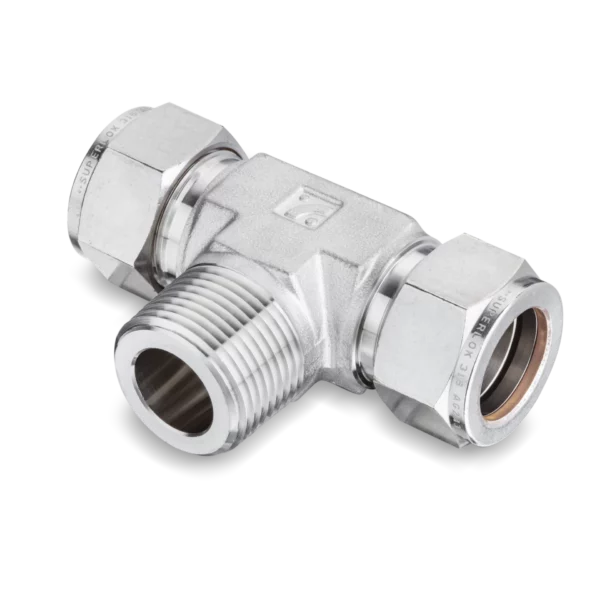

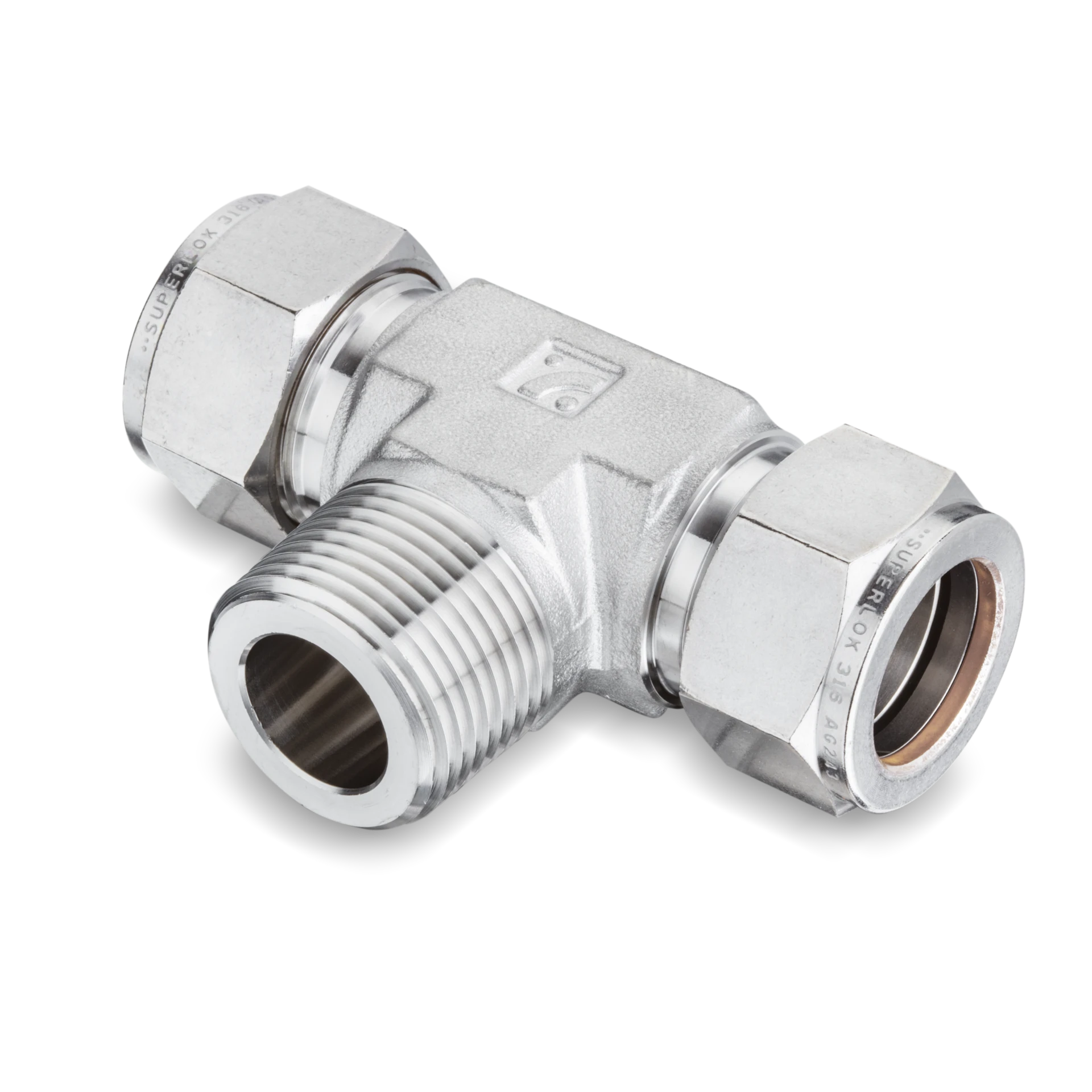

The Male Branch Tee is a heavy-duty pipe fitting designed for branching flow in high-pressure applications. Featuring precision-cut MNPT male threads, it provides leak-free connections in compressed air, gas, water, and oil systems. Made from high-quality stainless steel, it ensures superior corrosion resistance and long-term durability. Ideal for HVAC, chemical processing, and industrial piping networks, this tee fitting simplifies fluid distribution and directional flow.
Browse all Male Branch Tees below to find the right fit for your fluid system.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| End Type | National Pipe Thread (NPT) |
|---|---|
| Inch/Metric | Inch |
| Industry Standards/Certifications | American National Standards Institute (ANSI) B1.20.1 |
| Superlok Part Type | Male Tee |
Available Sizes
SMBT 2-2N SMBT Male Branch Tees
SMBT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 2-4N SMBT Male Branch Tees
SMBT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 4-2N SMBT Male Branch Tees
SMBT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 4-4N SMBT Male Branch Tees
SMBT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 6-4N SMBT Male Branch Tees
- Model: SBT3-S-6-CNG (3/8" tube OD CNG ball valve, 316 stainless steel/brass)
- Type: Ball Valve (compact shutoff valve for gas and fluid systems)
- Body Material: 316 Stainless Steel / Brass
- Connection Type: 3/8" Tube OD
- Cv Coefficient: 0.75
- Pressure Rating: 1500 PSIG
- Temperature Range: 0°F to 250°F (−17°C to 121°C)
- Equivalent To: Swagelok® CNG-rated instrumentation valve
SMBT 6-6N SMBT Male Branch Tees
SMBT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 8-6N SMBT Male Branch Tees
SMBT 1/2 in. Tube Outside Diameter x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 8-8N SMBT Male Branch Tees
SMBT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 10-8N SMBT Male Branch Tees
SMBT 5/8 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
SMBT 12-12N SMBT Male Branch Tees
SMBT 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread Male Branch Tee
