SMRT Male Run Tees

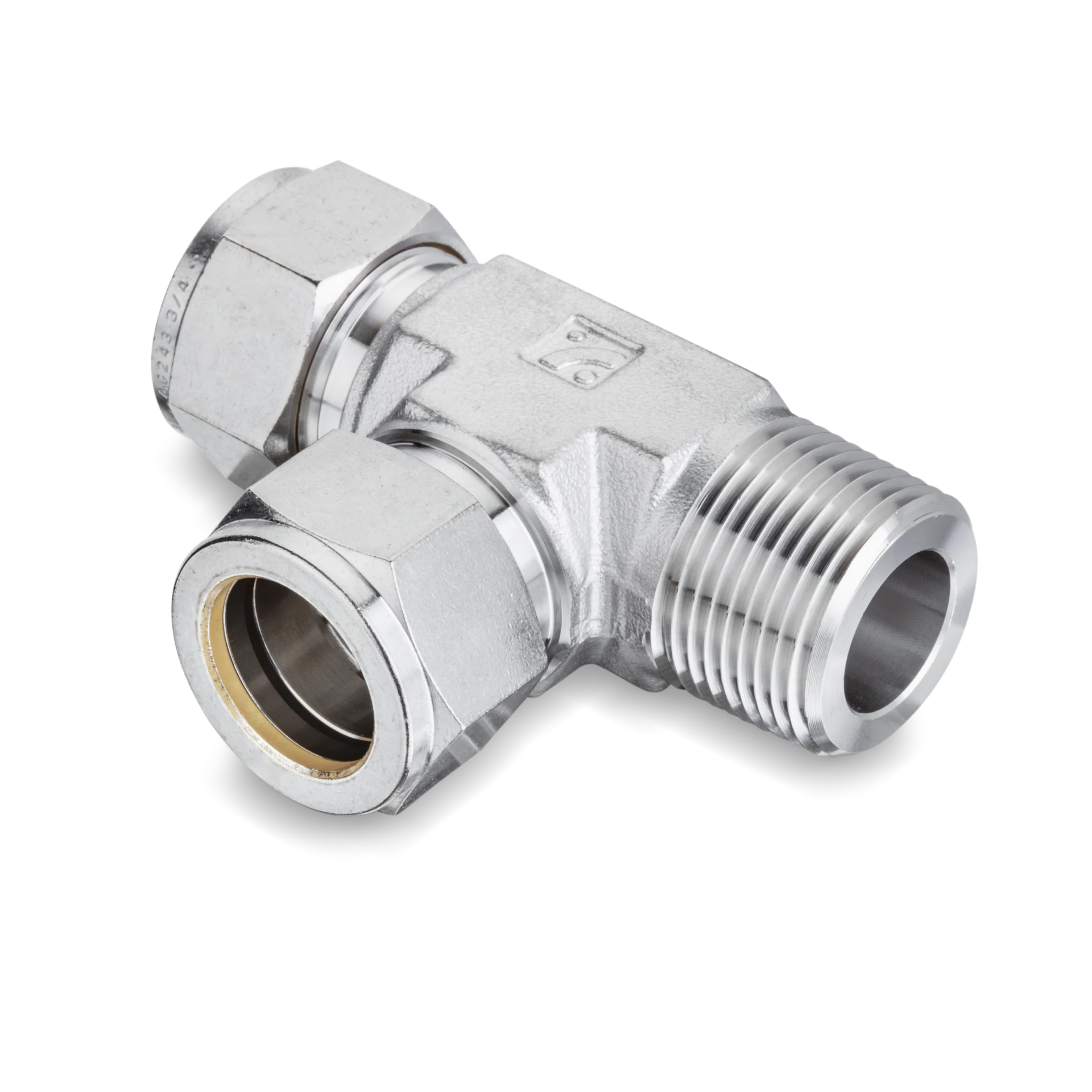

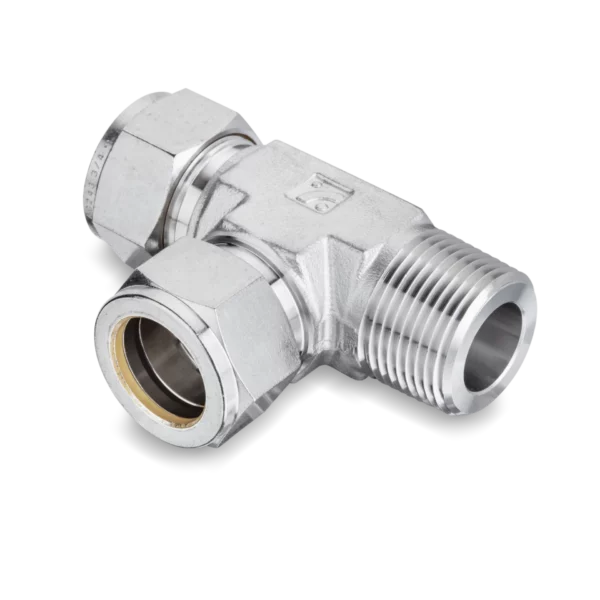

Male Run Tee Fitting – SMRT Male Run Tees

The Male Run Tee Fitting is a high-strength MNPT pipe fitting designed for branching flow in compressed air, gas, oil, and water systems. Its precision-cut male threads ensure leak-free performance, while its stainless steel body provides corrosion resistance and durability in harsh industrial environments. Ideal for hydraulic, chemical processing, and HVAC applications, this tee fitting allows for efficient fluid distribution while maintaining a secure and stable connection. Available in various sizes, it integrates seamlessly with standard piping networks.

Browse all Male Run Tee Fittings below to find the right size for your system.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 17930 Category: Tee Tube Fittings

Downloads

SMRT-Male-Run-Tees.pdf

Click here for more info

Specifications

End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Superlok Part Type	Male Tee

Available Sizes

SMRT 2-2N SMRT Male Run Tees

SMRT 1/8 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

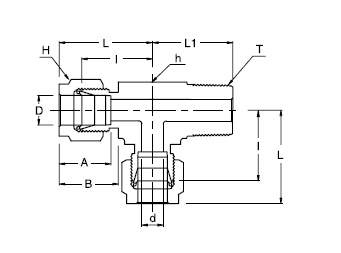

Dimension A	12.70mm
Dimension B	15.24mm
Dimension I	18.30mm
Dimension L	24.91mm
Dimension L1	18.90mm
Dimension d [Min]	2.28mm

End Size	44204in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/8in
Width Across Flats h	1/2in

Swagelok®	200-3TMT
Parker (Alok)®	2MRT2N
Hy-Lok®	CRTM 2-2N
Tylok (CBC-Lok)®	2-DTMT-2
Ham-Let (Let-Lok)®	771L 1/8 X 1/8
Hoke (Gyrolok)®	2TMT2
Dk-Lok®	DTRM2-2N
Bi-Lok (Series D)®	DTK-2-2
SSP (DUlok)®	D2MRT2

SMRT 2-4N SMRT Male Run Tees

SMRT 1/8 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	12.70mm
Dimension B	15.24mm
Dimension I	18.03mm
Dimension L	24.63mm
Dimension L1	23.36mm
Dimension d [Min]	2.28mm

End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/8in
Width Across Flats h	1/2in

Swagelok®	200-3-4TMT
Parker (Alok)®	2MRT4N
Hy-Lok®	CRTM 2-4N
Tylok (CBC-Lok)®	2-DTMT-4
Ham-Let (Let-Lok)®	771L 1/8 X 1/4
Hoke (Gyrolok)®	2TMT4
Dk-Lok®	DTRM2-4N
Bi-Lok (Series D)®	DTK-2-4
SSP (DUlok)®	D2MRT4

SMRT 4-2N SMRT Male Run Tees

SMRT 1/4 in. Tube Outside Diameter D x 1/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	19.55mm
Dimension L	26.92mm
Dimension L1	18.79mm
Dimension d [Min]	4.82mm

End Size	44204in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in
Width Across Flats h	1/2in

Swagelok®	400-3TMT
Parker (Alok)®	4MRT2N
Hy-Lok®	CRTM 4-2N
Tylok (CBC-Lok)®	4-DTMT-2
Ham-Let (Let-Lok)®	771L 1/4 X 1/8
Hoke (Gyrolok)®	4TMT2
Dk-Lok®	DTRM4-2N
Bi-Lok (Series D)®	DTK-4-2
SSP (DUlok)®	D4MRT2

SMRT 4-4N SMRT Male Run Tees

SMRT 1/4 in. Tube Outside Diameter D x 1/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	15.24mm
Dimension B	17.78mm
Dimension I	19.55mm
Dimension L	26.92mm
Dimension L1	23.36mm
Dimension d [Min]	4.82mm

End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/4in
Width Across Flats h	1/2in

Swagelok®	400-3-4TMT
Parker (Alok)®	4MRT4N
Hy-Lok®	CRTM 4-4N
Tylok (CBC-Lok)®	4-DTMT-4
Ham-Let (Let-Lok)®	771L 1/4 X 1/4
Hoke (Gyrolok)®	4TMT4
Dk-Lok®	DTRM4-4N
Bi-Lok (Series D)®	DTK-4-4
SSP (DUlok)®	D4MRT4

SMRT 6-4N SMRT Male Run Tees

Model: SMRT 6-4N (3/8" Tube OD x 1/4" MNPT Run Tee)
Type: Run Tee – Tube x Male NPT x Female NPT
Material: 316 Stainless Steel (corrosion-resistant alloy)
Thread Standard: ANSI B1.20.1 Compliant

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	23.11mm
Dimension L	30.48mm
Dimension L1	25.40mm
Dimension d [Min]	7.11mm

End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in
Width Across Flats h	5/8in

Swagelok®	600-3TMT
Parker (Alok)®	6MRT4N
Hy-Lok®	CRTM 6-4N
Tylok (CBC-Lok)®	6-DTMT-4
Ham-Let (Let-Lok)®	771L 3/8 X 1/4
Hoke (Gyrolok)®	6TMT4
Dk-Lok®	DTRM6-4N
Bi-Lok (Series D)®	DTK-6-4
SSP (DUlok)®	D6MRT4

SMRT 6-6N SMRT Male Run Tees

SMRT 3/8 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	16.76mm
Dimension B	19.30mm
Dimension I	23.10mm
Dimension L	30.48mm
Dimension L1	28.19mm
Dimension d [Min]	7.11mm

End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/8in
Width Across Flats h	5/8in

Swagelok®	600-3-6TMT
Parker (Alok)®	6MRT6N
Hy-Lok®	CRTM 6-6N
Tylok (CBC-Lok)®	6-DTMT-6
Ham-Let (Let-Lok)®	771L 3/8 X 3/8
Hoke (Gyrolok)®	6TMT6
Dk-Lok®	DTRM6-6N
Bi-Lok (Series D)®	DTK-6-6
SSP (DUlok)®	D6MRT6

SMRT 8-6N SMRT Male Run Tees

SMRT 1/2 in. Tube Outside Diameter D x 3/8 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension L1	28.19mm
Dimension d [Min]	9.65mm

End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in
Width Across Flats h	13/16in

Swagelok®	810-3TMT
Parker (Alok)®	8MRT6N
Hy-Lok®	CRTM 8-6N
Tylok (CBC-Lok)®	8-DTMT-6
Ham-Let (Let-Lok)®	771L 1/2 X 3/8
Hoke (Gyrolok)®	8TMT6
Dk-Lok®	DTRM8-6N
Bi-Lok (Series D)®	DTK-8-6
SSP (DUlok)®	D8MRT6

SMRT 8-8N SMRT Male Run Tees

SMRT 1/2 in. Tube Outside Diameter D x 1/2 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	22.86mm
Dimension B	21.84mm
Dimension I	25.90mm
Dimension L	36.06mm
Dimension L1	33.02mm
Dimension d [Min]	10.41mm

End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	1/2in
Width Across Flats h	13/16in

Swagelok®	810-3-8TMT
Parker (Alok)®	8MRT8N
Hy-Lok®	CRTM 8-8N
Tylok (CBC-Lok)®	8-DTMT-8
Ham-Let (Let-Lok)®	771L 1/2 X 1/2
Hoke (Gyrolok)®	8TMT8
Dk-Lok®	DTRM8-8N
Bi-Lok (Series D)®	DTK-8-8
SSP (DUlok)®	D8MRT8

SMRT 12-12N SMRT Male Run Tees

SMRT 3/4 in. Tube Outside Diameter D x 3/4 in. Male National Pipe Taper (MNPT) Thread Male Run Tee

Dimension A	24.38mm
Dimension B	21.84mm
Dimension I	29.71mm
Dimension L	39.87mm
Dimension L1	36.83mm
Dimension d [Min]	15.74mm

End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Industry Standards/Certifications	American National Standards Institute (ANSI) B1.20.1
Tube Outside Diameter D	3/4in
Width Across Flats h	1-1/16in

Swagelok®	1210-3TMT
Parker (Alok)®	12MRT12N
Hy-Lok®	CRTM 12-12N
Tylok (CBC-Lok)®	12-DTMT-12
Ham-Let (Let-Lok)®	771L 3/4 X 3/4
Hoke (Gyrolok)®	12TMT12
Dk-Lok®	DTRM12-12N
Bi-Lok (Series D)®	DTK-12-12
SSP (DUlok)®	D12MRT12
