SPMBT 12-12U

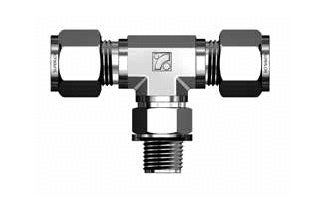

SPMBT 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
Specifications
| End Size | 1-1/16-12in |
|---|---|
| End Type | Society of Automotive Engineering (SAE)/MS Straight Thread |
| Inch/Metric | Inch |
| Industry Standards/Certifications | Array |
| Tube Outside Diameter D | in, 3/4mm |
| Width Across Flats H | in, 1-1/8mm |
| Width Across Flats h1 | 1-1/16in |
| Width Across Flats h2 | 1-1/4in |
Dimensions
| Dimension A | 24.38mm |
|---|---|
| Dimension B | 21.84mm |
| Dimension C | 36.58mm |
| Dimension I | 31.24mm |
| Dimension L | 41.40mm |
| Dimension L1 | 48.77mm |
| Dimension d [Min] | 15.75mm |
Description
(SPMBT 12-12U)
SPMBT 3/4 in. Tube Outside Diameter D x 1-1/16-12 Society of Automotive Engineering (SAE) Straight Thread Positionable Male Branch Tee with O-Ring
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-1210-3TTS |
|---|---|
| Parker (Alok)® | 12M5BT12 |
| Hy-Lok® | CSBT 12-12U |
| Hoke (Gyrolok)® | 16TTS16 |
| Dk-Lok® | DTBS 16-16UP |
| Bi-Lok (Series D)® | DLO-12-12 |
| SSP (DUlok)® | D12MEST12 |
