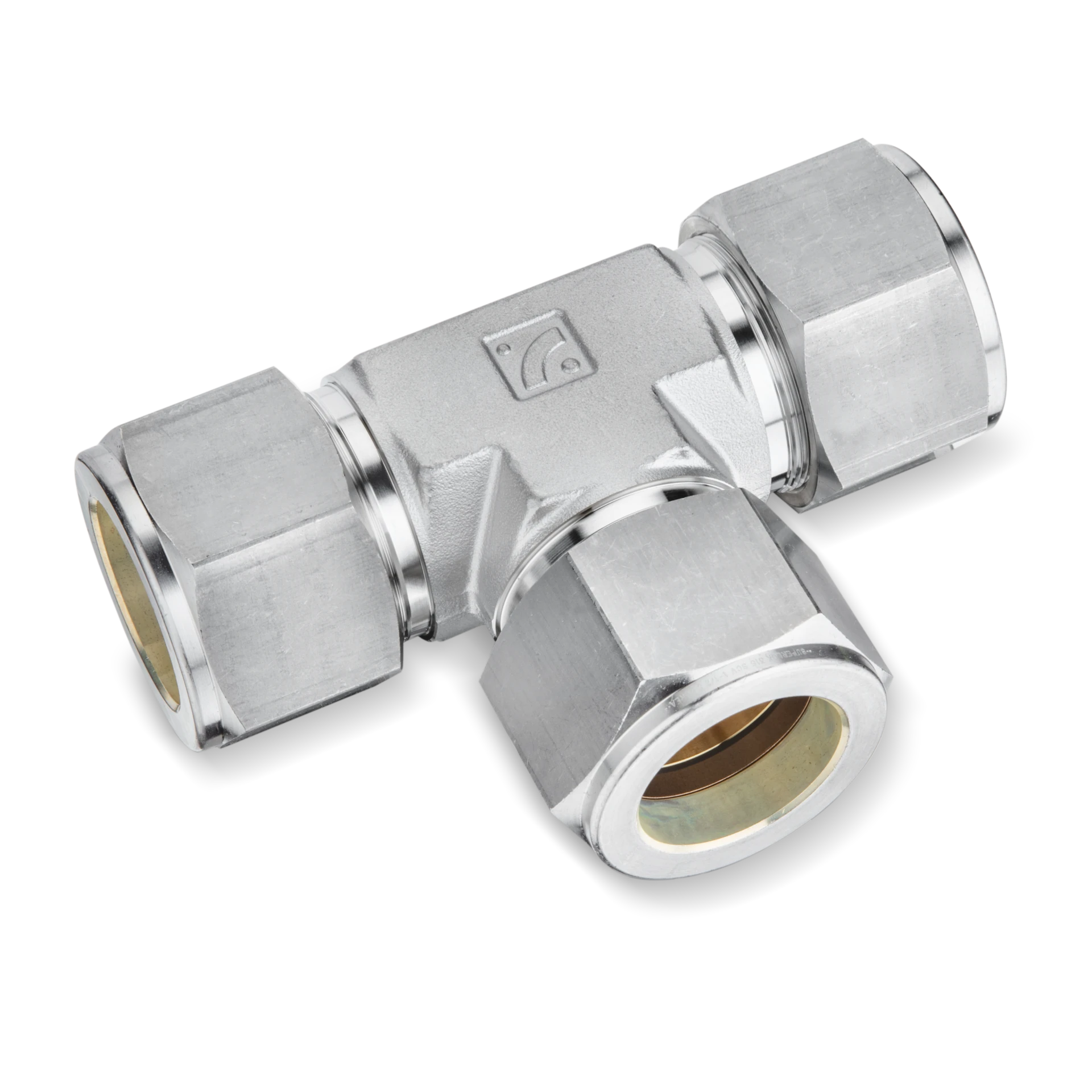

SUT Union Tees
SUT Union Tees
Access our complete line of union tee fittings for three-way fluid connections. Our selection provides easy installation and maintenance for your fluid system. Browse below to request quotes or purchase the union tee you need instantly.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Superlok Part Type | Union Tee |
|---|
Available Sizes
SUT-4 SUT Union Tees
- Model: SUT-4 (1/4" tube union tee, 316 stainless steel)
- Type: Union Tee (three-way tube-to-tube compression fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-purity and pressure-rated systems (based on tubing specs)
- Size: 1/4" tube outer diameter (O.D.) x 1/4" tube O.D. x 1/4" tube O.D.
- Finish: Clean, polished surface for hygienic-grade applications
- Equivalent To: Swagelok® SS-400-3
SUT-6 SUT Union Tees
- Model: SUT-6 (3/8" tube union tee, 316 stainless steel)
- Type: Union Tee (connects three tubes in a T-configuration)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Supports high-pressure systems (based on tubing specs)
- Size: 3/8" tube outer diameter (O.D.)
- Finish: Polished, clean surface for hygienic compatibility
- Equivalent To: Swagelok® SS-600-3
SUT-8 SUT Union Tees
- Model: SUT-8 (1/2" tube OD (Outer Diameter) on all three ports)
- Type: Union Tee (compression fitting for tube-to-tube junctions)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing wall thickness and ferrule engagement
- Finish: Machined and polished for sanitary or industrial applications
- Equivalent To: Swagelok® SS-810-3
SUT-12 SUT Union Tees
- Model: SUT-12 (3/4" tube union tee, 316 stainless steel)
- Type: Union Tee (three-way tube-to-tube compression fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure, sanitary-grade systems (based on tubing specs)
- Size: 3/4" tube outer diameter (O.D.)
- Finish: Polished, hygienic-grade surface
- Equivalent To: Swagelok® SS-1210-3
SUT-16 SUT Union Tees
- Model: SUT-16 (1" tube union tee, 316 stainless steel)
- Type: Union Tee (compression-style, tube-to-tube-to-tube fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Connection Type: 1" Tube OD x 1" Tube OD x 1" Tube OD
