SAU 4-4U

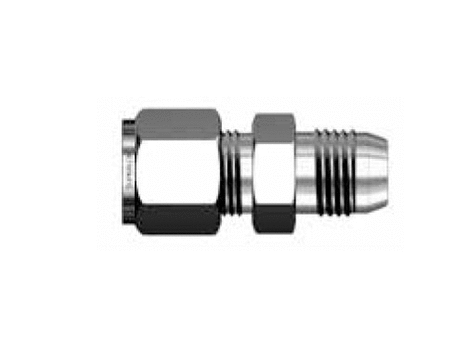

SAU 1/4 in. Tube Outside Diameter D x 1/4 in. Male Joint Industry Council (JIC) Union
Specifications
| End Size | 44028 |
|---|---|
| End Type | Straight Thread |
| Inch/Metric | Inch |
| Tube Outside Diameter D | 1/4in |
| Width Across Flats h | 1/2in |
Dimensions
| Dimension A | 15.24mm |
|---|---|
| Dimension B | 17.78mm |
| Dimension I | 30.22mm |
| Dimension L | 37.59mm |
| Dimension d [Min] | 4.31mm |
Description
(SAU 4-4U)
SAU 1/4 in. Tube Outside Diameter D x 1/4 in. Male Joint Industry Council (JIC) Union
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-600-6-4AN |
|---|---|
| Parker (Alok)® | 4XASC6 |
| Hy-Lok® | CFU 6-4 |
| Tylok (CBC-Lok)® | 6-DUANF-4 |
| Ham-Let (Let-Lok)® | 762LFL 3/8 X 1/4 |
| Hoke (Gyrolok)® | 6UAN4 |
| Dk-Lok® | DUA6-4 |
| Bi-Lok (Series D)® | DUC-6-4 |
| SSP (DUlok)® | D6ANU4 |
