SBHRU 6-4

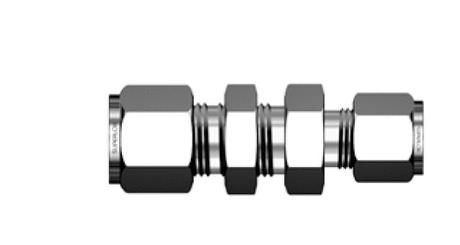

SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
Specifications
| Inch/Metric | Inch |
|---|---|
| Panel Thickness [Max] | 11.17mm |
| Tube Outside Diameter D | 3/8in |
| Tube Outside Diameter D1 | 1/4in |
| Width Across Flats H1 | 9/16in |
| Width Across Flats h | 3/4in |
Dimensions
| Dimension A | 16.76mm |
|---|---|
| Dimension A1 | 15.24mm |
| Dimension I | 45.97mm |
| Dimension I1 | 29.46mm |
| Dimension L | 60.70mm |
| Dimension L1 | 36.57mm |
| Dimension L2 | 17.78mm |
| Dimension d [Min] | 4.82mm |
Description
(SBHRU 6-4)
SBHRU 3/8 in. Tube Outside Diameter D x 1/4 in. Tube Outside Diameter D1 Bulkhead Reducing Union
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-600-61-4 |
|---|---|
| Parker (Alok)® | 6BC4 |
| Tylok (CBC-Lok)® | 6-DBHU-4 |
| Ham-Let (Let-Lok)® | 775L 3/8 X 1/4 |
| SSP (DUlok)® | D6BRU4 |
