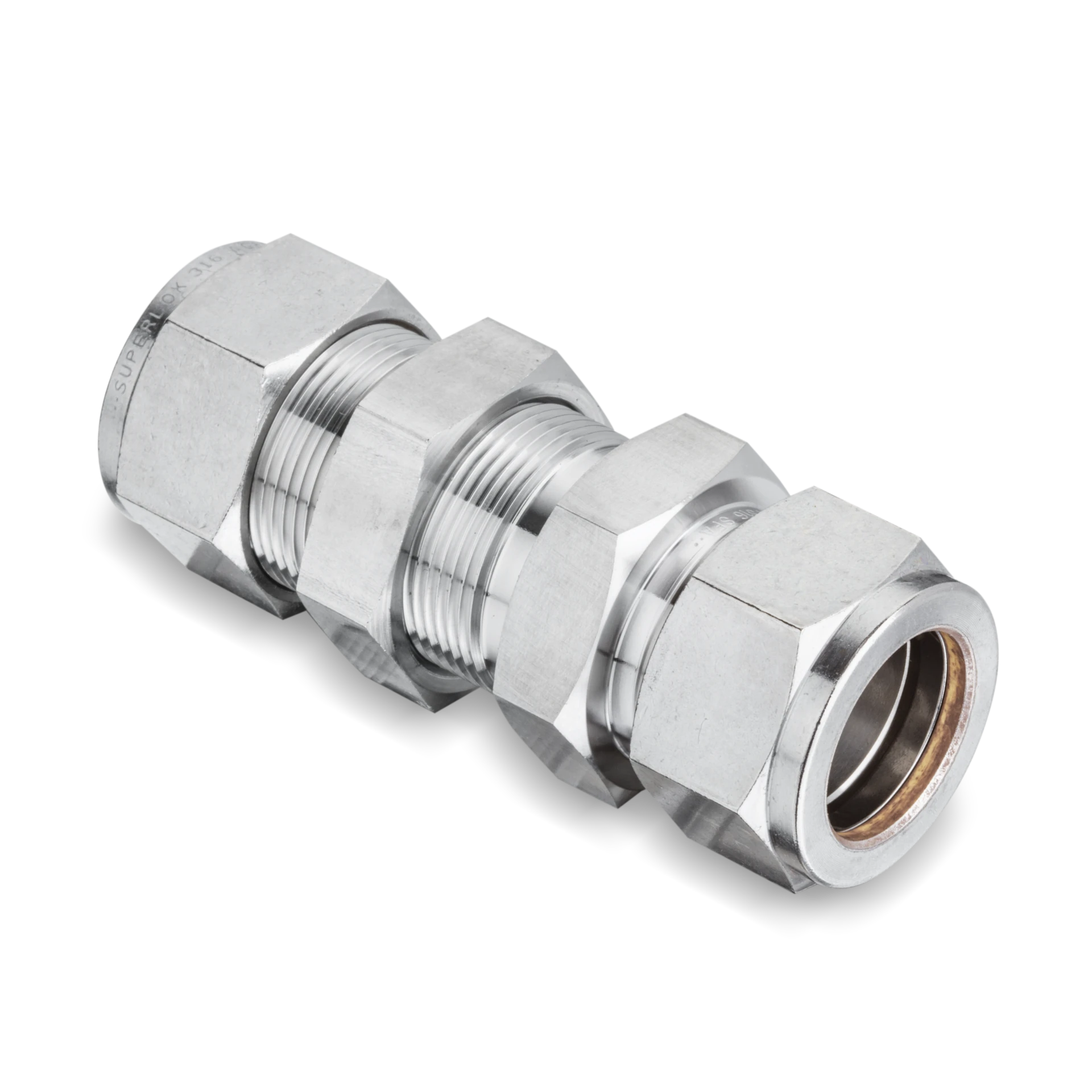

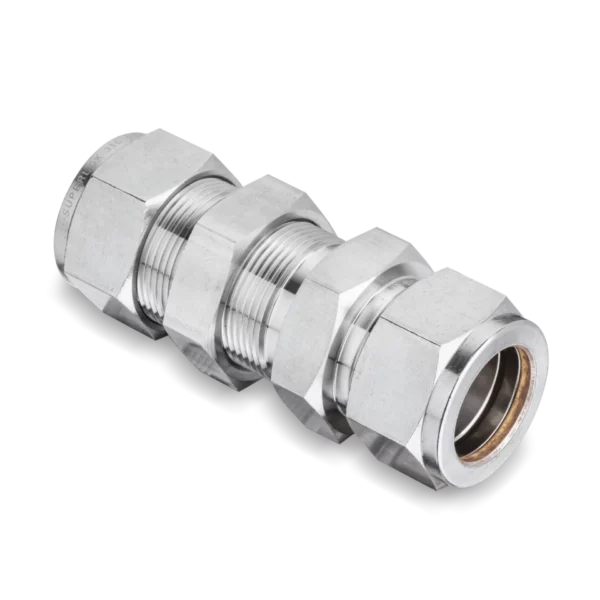

Bulkhead Union – SBHU Bulkhead Unions
A Bulkhead Union is a vital component in fluid and gas transfer systems, enabling connections through bulkheads or panel walls without leakage. The SBHU Bulkhead Unions offer superior sealing and structural reinforcement, commonly used in industrial, chemical, and instrumentation setups. Designed with robust stainless steel, these unions provide reliable, high-pressure performance in demanding environments.
Browse all Bulkhead Unions below to ensure seamless system integration.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
Specifications
| Inch/Metric | Inch |
|---|---|
| Superlok Part Type | Union |
Available Sizes
SBHU-4 SBHU Bulkhead Unions
- Model: SBHU-4 (1/4" tube OD bulkhead union, 316 stainless steel)
- Type: Bulkhead Union (tube-to-tube, panel-mountable)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Design: Dual-ferrule compression with through-panel mounting
SBHU-6 SBHU Bulkhead Unions
- Model: SBHU-6 (3/8" tube OD x 3/8" tube OD)
- Type: Straight Bulkhead Union (compression-style tube-to-tube fitting)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Based on tubing specifications and installation torque
- Mounting Style: Panel-mount bulkhead with locknut and body threads
- Finish: Machined and polished for clean industrial or sanitary use
- Equivalent To: Swagelok® SS-600-61
SBHU-6-TM SBHU Bulkhead Unions
- Model: SBHU-6-TM (3/8" Tube OD, 316 stainless steel)
- Type: Bored-Through Bulkhead Union (tube-to-tube, panel-mountable)
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Design: Dual-ferrule, bored-through body for continuous flow
SBHU-8 SBHU Bulkhead Unions
- Model: SBHU-8 (1/2" Tube OD Bulkhead Union)
- Type: Straight Bulkhead Compression Fitting – Tube-to-Tube
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Design: Dual-ferrule bulkhead style for leak-tight wall-mounted connections
