SU-4M

SU-4M - Image 2

SU-4M - Image 3

SU-4M

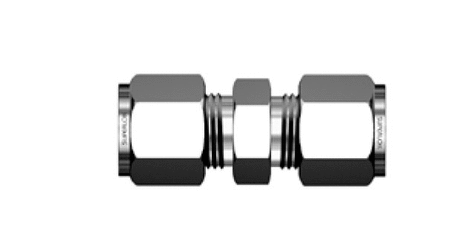

SU 4 mm Tube Outside Diameter D Union

SKU: SU-4M Category: Union Tube Fittings

Downloads

SU-Unions.pdf

Click here for more info

Specifications

Inch/Metric	Metric
Tube Outside Diameter D	in, 4mm
Width Across Flats h	12in

Dimensions

SU-4M

Dimension A	13.7mm
Dimension B	16.1mm
Dimension I	24.1mm
Dimension L	37.3mm
Dimension d [Min]	2.4mm

Description

(SU-4M)

SU 4 mm Tube Outside Diameter D Union
