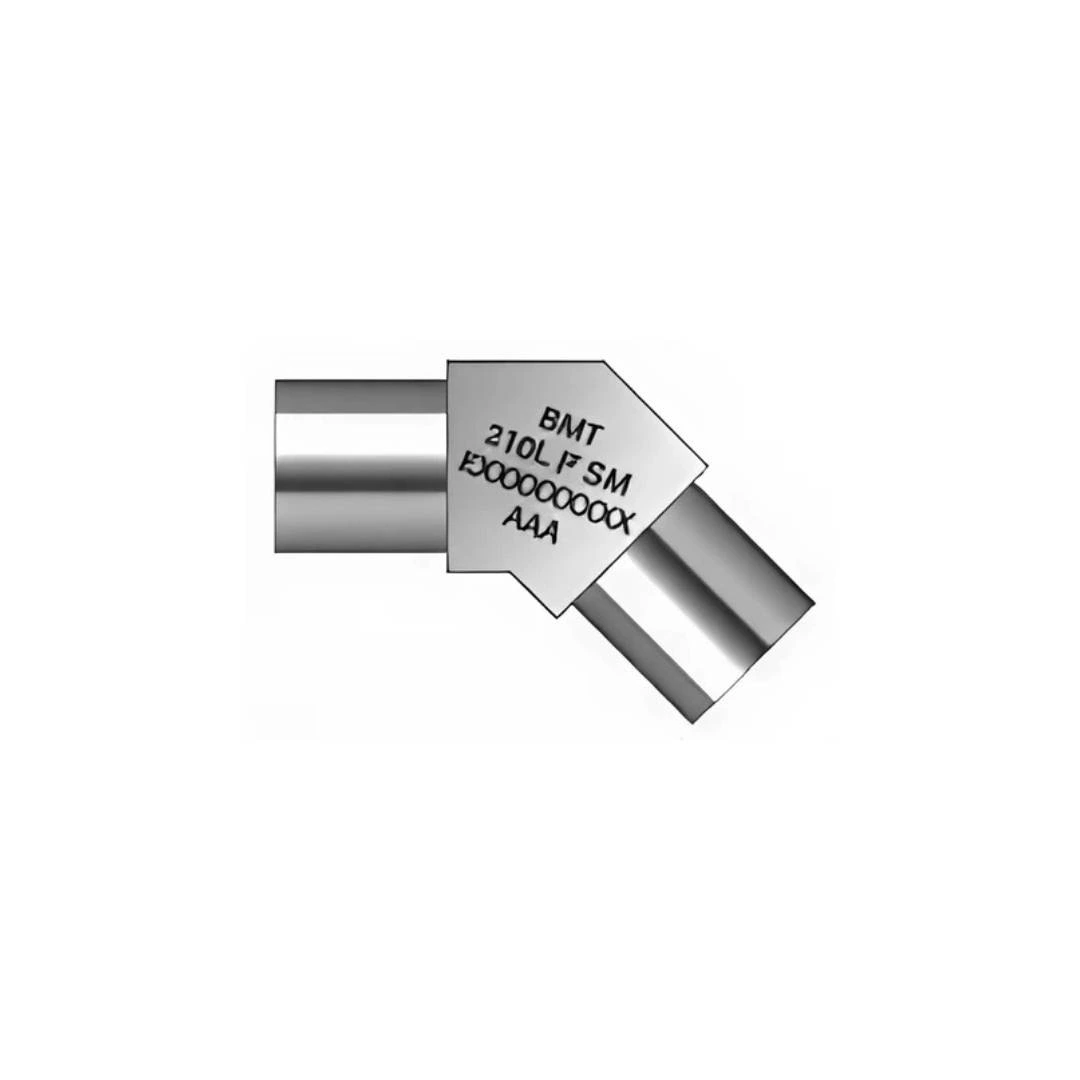

UHP Micro 45° Elbow
UHP Micro 45° Elbow
- Model: SM2HE6 (1/8″ O.D. elbow)
- Type: Micro 45° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure fluid systems
- Size: 1/8″ O.D.
- Finish: Polished for clean angles
Specifications
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Bi-Lok (Series D)® |
|---|
Available Sizes
SM2HE6 – Stainless Steel 1/8″ O.D. Micro 45° Elbow UHP Micro 45° Elbow
- Model: SM2HE6 (1/8" O.D. elbow)
- Type: Micro 45° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure fluid systems
- Size: 1/8" O.D.
- Finish: Polished for clean angles
SM4HE6 – Stainless Steel 1/4″ O.D. Micro 45° Elbow UHP Micro 45° Elbow
- Model: SM4HE6 (1/4" O.D. elbow)
- Type: Micro 45° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Designed for high-pressure fluid systems
- Size: 1/4" O.D.
- Finish: Smooth machined for clean turns
SM6HE6 – Stainless Steel 3/8″ O.D. Micro 45° Elbow UHP Micro 45° Elbow
- Model: SM6HE6 (3/8" O.D. elbow)
- Type: Micro 45° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Built for high-pressure fluid systems
- Size: 3/8" O.D.
- Finish: Polished for clean angles
SM12HE6 – Stainless Steel 3/4″ O.D. Micro 45° Elbow UHP Micro 45° Elbow
- Model: SM12HE6 (3/4" O.D. elbow)
- Type: Micro 45° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Optimized for high-pressure fluid systems
- Size: 3/4" O.D.
- Finish: Machined for clean angles
