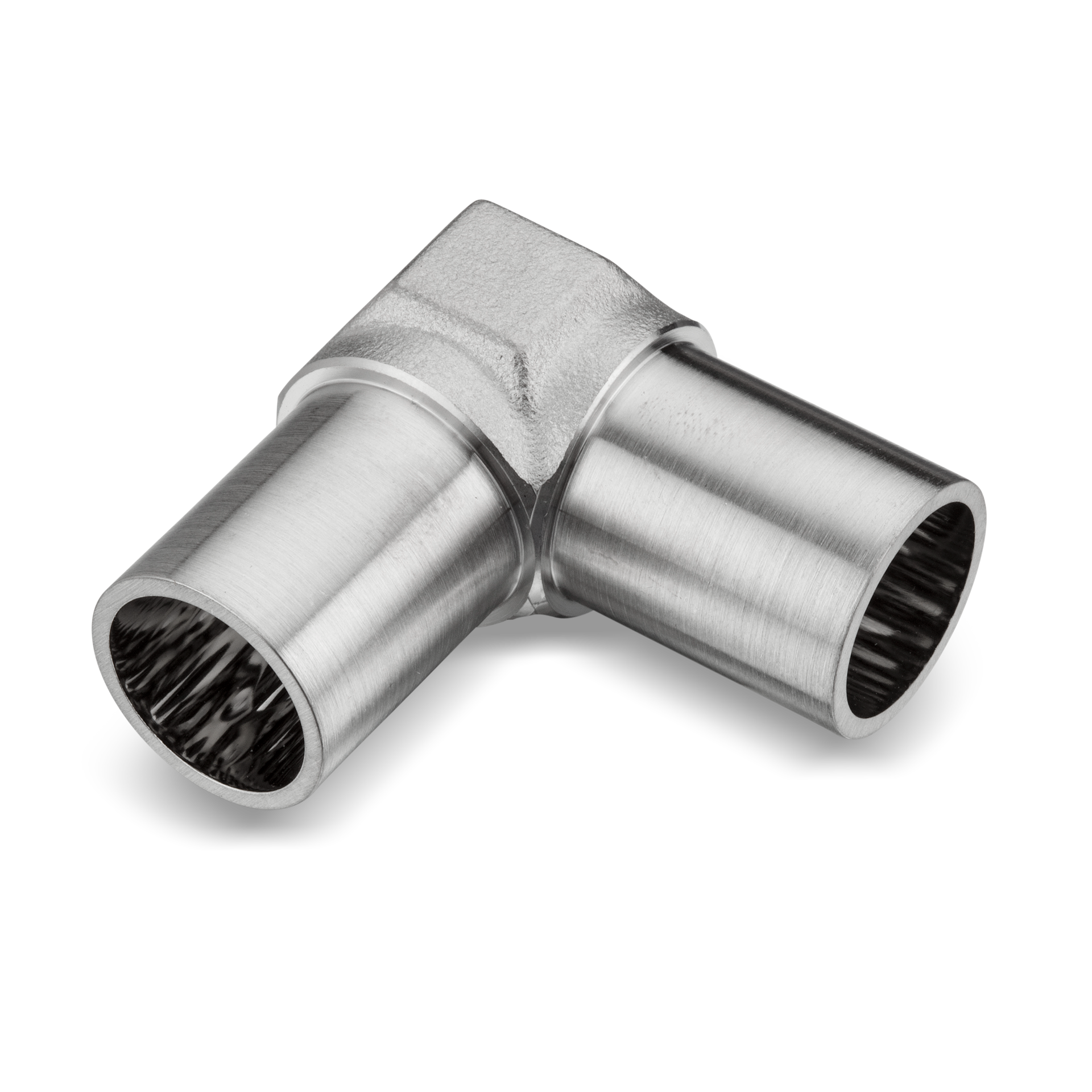

UHP Micro 90° Elbow
UHP Micro 90° Elbow
- Model: SM2E6 (1/8″ O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure fluid systems
- Size: 1/8″ O.D.
- Finish: Polished for sanitary and clean turns
Specifications
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Bi-Lok (Series D)® |
|---|
Available Sizes
SM2E6 – Stainless Steel 1/8″ O.D. Micro 90° Elbow UHP Micro 90° Elbow
- Model: SM2E6 (1/8" O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Suitable for high-pressure fluid systems
- Size: 1/8" O.D.
- Finish: Polished for sanitary and clean turns
SM4E6 – Stainless Steel 1/4″ O.D. Micro 90° Elbow UHP Micro 90° Elbow
- Model: SM4E6 (1/4" O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Designed for high-pressure fluid systems
- Size: 1/4" O.D.
- Finish: Smooth machined for sanitary turns
SM6E6 – Stainless Steel 3/8″ O.D. Micro 90° Elbow UHP Micro 90° Elbow
- Model: SM6E6 (3/8" O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Built for high-pressure fluid systems
- Size: 3/8" O.D.
- Finish: Polished for clean bends
SM8E6 – Stainless Steel 1/2″ O.D. Micro 90° Elbow UHP Micro 90° Elbow
- Model: SM8E6 (1/2" O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Optimized for high-pressure fluid systems
- Size: 1/2" O.D.
- Finish: Machined for clean turns
SM12E6 – Stainless Steel 3/4″ O.D. Micro 90° Elbow UHP Micro 90° Elbow
- Model: SM12E6 (3/4" O.D. elbow)
- Type: Micro 90° Elbow
- Material: 316 Stainless Steel (corrosion-resistant alloy)
- Pressure Rating: Rated for high-pressure fluid systems
- Size: 3/4" O.D.
- Finish: Polished for clean curves
