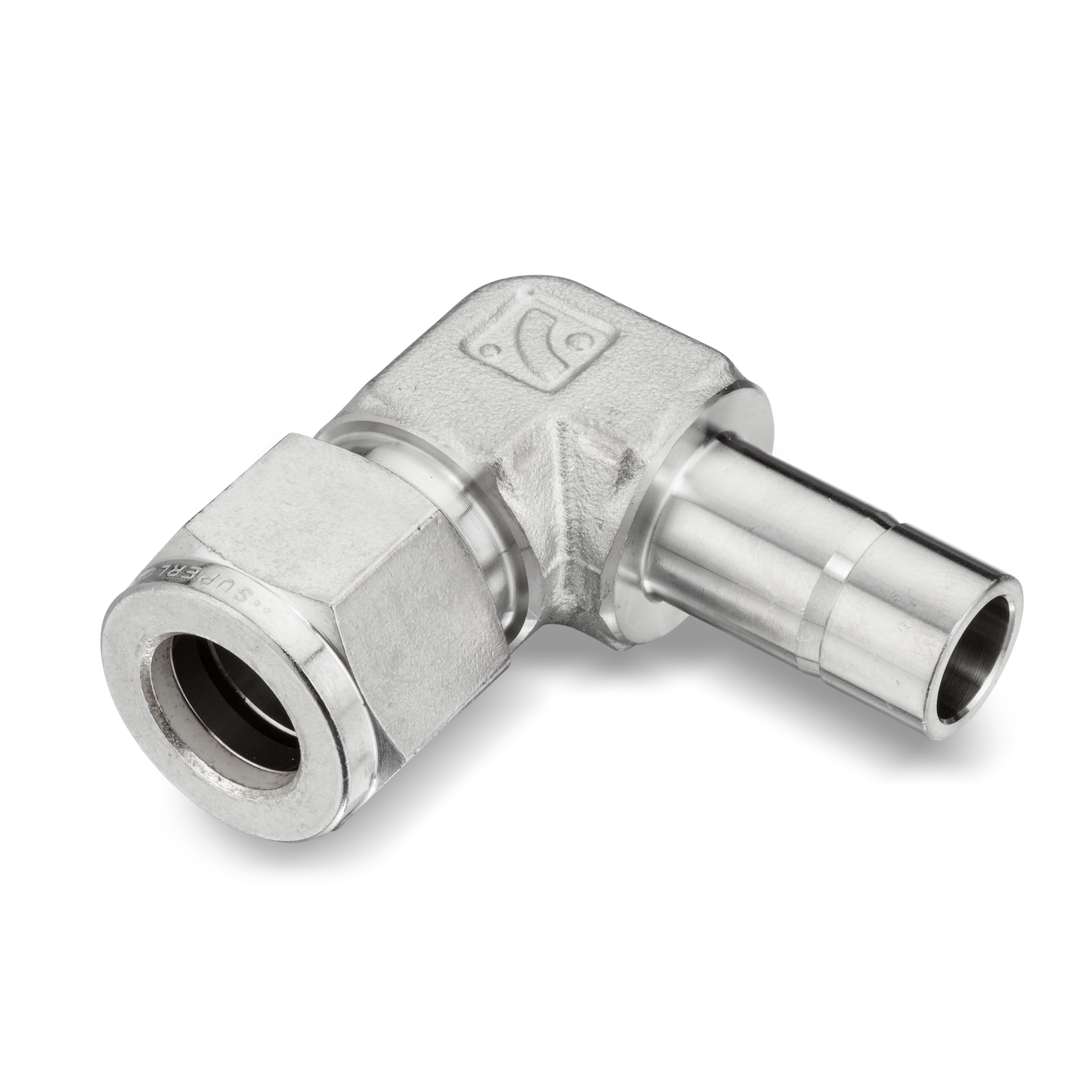

SAE - Compression x Tube Stub Elbow

Print Page Email Page

SAE - Compression x Tube Stub Elbow

SAE – Compression x Tube Stub Elbow

SKU: SAE - Compression x Tube Stub Elbow Category: Uncategorized

Click here for more info

Specifications

Body	Stainless Steel 316
Description	SAE - Compression x Tube Stub Elbow
Ferrule Back	Stainless Steel 316
Ferrule Front	Stainless Steel 316
Inch/Metric	Inch
NUT	Stainless Steel 316

Available Sizes

SAE-4 SAE - Compression x Tube Stub Elbow

SAE-4 - 1/4" O.D. Tube X 1/4" Tube Stub 90°

SAE-6 SAE - Compression x Tube Stub Elbow

SAE-6 - 3/8" O.D. Tube X 3/8" Tube Stub 90°

SAE-8 SAE - Compression x Tube Stub Elbow

SAE-8 - 1/2" O.D. Tube X 1/2" Tube Stub 90°

SAE-12 SAE - Compression x Tube Stub Elbow

SAE-12 - 3/4 in O.D. X 3/4 in Tube Stub 90°

SAE-16 SAE - Compression x Tube Stub Elbow

SAE-16 - 1" in O.D. X 1" in Tube Stub 90°

Dimension A (mm)	19.6
Dimension B (mm)	16.4
Dimension H (mm)	12.7
Dimension L1 (mm)	27.1
Dimension L2 (mm)	25.0

Dimension A (mm)	15.3
Dimension B (mm)	17.8
Dimension C (mm)	16.4
Dimension H (mm)	12.7
Dimension L (mm)	27.1
Dimension L1 (mm)	25.0
Dimension d (mm)	4.8

Dimension A (mm)	22.9
Dimension B (mm)	21.8
Dimension C (mm)	23.5
Dimension H (mm)	20.6
Dimension L (mm)	36
Dimension L1 (mm)	37.8
Dimension d (mm)	10.4

Dimension A (mm)	24.4
Dimension B (mm)	21.8
Dimension C (mm)	25.5
Dimension H (mm)	27
Dimension L (mm)	39.9
Dimension L1 (mm)	43
Dimension d (mm)	15.6

Dimension A (mm)	31.52
Dimension H (mm)	34.9
Dimension L1 (mm)	49.27
Dimension L2 (mm)	53

Description	SAE-4 - 1/4" O.D. Tube X 1/4" Tube Stub 90°
Tube O.D. (mm)	1/4"

Description	SAE-16 - 1" in O.D. X 1" in Tube Stub 90°
Tube O.D, ØD1 (in)	1"
Tube O.D, ØD2 (in)	1"
