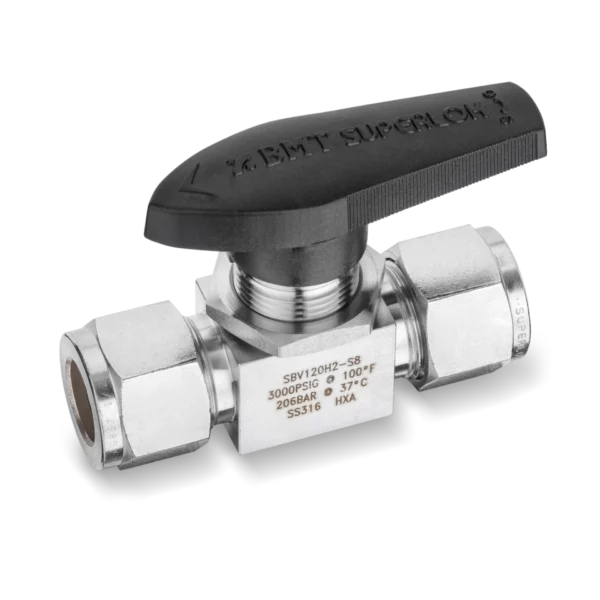

SBV120H2-S-4
Stainless Steel Ball Valve – 1/4" Tube OD | 4.8 mm Orifice | 3000 PSI | SBV120 Series
- Model: SBV120H2-S-4 (1/4" tube OD ball valve, 316 stainless steel/brass)
- Type: Instrumentation Ball Valve (compact shutoff valve)
- Body Material: 316 Stainless Steel / Brass
- Connection Type: 1/4" Tube OD
- Working Pressure: 3000 PSIG
- Cv Coefficient: 2.4
| Cv Coefficient | 2.4 |
|---|---|
| Inch/Metric | Inch |
| Inlet | 1/4in |
| Orifice | 4.8mm |
| Outlet | 1/4in |
| Pressure Rating | 206bar, 3000psig |
| Pressure [Max] | 3000bar, 206psi |
| Temperature Rating | 10 to 65?C, 50 to 150?F |
| Dimension A | 30.2mm |
|---|---|
| Dimension A1 | 30.2mm |
| Dimension B | 60.4mm |
| Dimension D | 9.4mm |
| Dimension E | 11.2mm |
| Dimension F | 4.8mm |
| Dimension G | 19.8mm |
| Dimension H | 43.7mm |
| Dimension I | 38.5mm |
| Dimension W | 19.8mm |
Stainless Steel Ball Valve – 1/4" Tube OD | 4.8 mm Orifice | 3000 PSI | SBV120 Series (SBV120H2-S-4)
The SBV120H2-S-4 is a 1/4" tube OD instrumentation ball valve designed for tight shutoff, smooth actuation, and long service life in sanitary and high-pressure systems. With a 4.8 mm orifice and a Cv of 2.4, it provides reliable, low-torque control in space-constrained setups where precision flow matters.
Built with a 316 stainless steel and brass body, this valve is panel-mountable and factory-tested for leak-tight sealing. The SBV120 Series features a one-piece ball and stem design to reduce dead space and improve cleanliness—ideal for Clean-in-Place (CIP) instrumentation, gas delivery lines, and lab-grade flow systems.

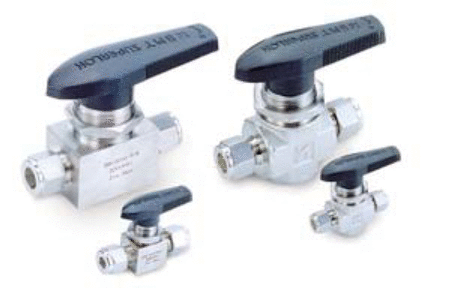

Compatible with Swagelok® style compression fittings, the SBV120H2-S-4 integrates cleanly into sanitary stainless steel assemblies, OEM skids, and analytical panels. Available in straight, angle, and 3-way configurations for flexible routing options.
Key Benefits
- Control: Low-torque actuation with a precise 4.8 mm flow path
- Clean Design: One-piece ball and stem reduce internal voids and leak points
- Durability: Rated to 3000 PSIG for long cycle life under pressure
- Compatibility: Works with 1/4" stainless tubing and Swagelok® style fittings
- Material: Brass and 316 stainless construction handles sanitary and industrial applications
Typical Applications
- Clean-in-Place (CIP) instrumentation
- OEM sanitary skids and sampling stations
- Valve panels and compact process layouts
- Gas delivery and analytical instrumentation setups
- Lab-grade stainless steel systems
Looking for a Swagelok® alternative 1/4" instrumentation ball valve? The SBV120H2-S-4 gives you clean shutoff, compact fit, and cycle-tested performance for precision fluid control.
| Swagelok® | SS-43GS4 |
|---|
