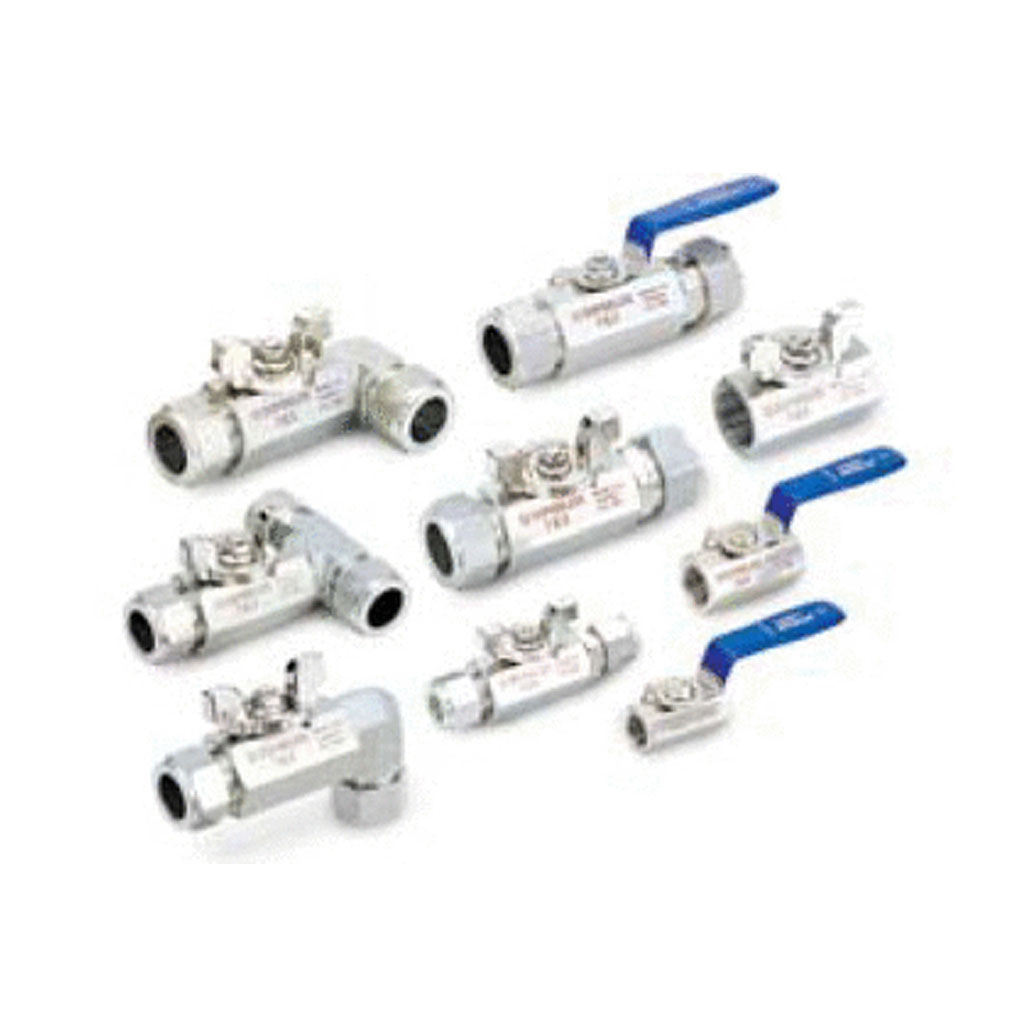

SBV210 Series Ball Valves

Access our complete line of ball valves engineered for smooth, low-torque operation. Our selection features compact designs with butterfly and lever handle options. Browse below to instantly request a quote or purchase the ball valves tested for reliability at our factory.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18401 Category: Ball Valves

Downloads

SBV210-Series-Ball-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi
Superlok Part Type	Ball Valve

Compatibility

This part may be used in place of the following parts from other manufacturers:

Bi-Lok (Series D)®

Available Sizes

SBV210-F-4N SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-4N-BH SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-4N-PE SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-4N-PE-BH SBV210 Series Ball Valves

SBV 1/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	42.8mm
Dimension H	23.0mm
Dimension I	600mm
Dimension L	300mm

Cv Coefficient	1.4
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-6N SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-6N-BH SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-6N-PE SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-6N-PE-BH SBV210 Series Ball Valves

SBV 3/8 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	46.6mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.6
End Size	44263in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-8N SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-8N-BH SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-8N-PE SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-8N-PE-BH SBV210 Series Ball Valves

SBV 1/2 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	55.0mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	50.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-12N SBV210 Series Ball Valves

SBV 3/4 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	61.3mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	12.7
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-12N-BH SBV210 Series Ball Valves

SBV 3/4 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	61.3mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	12.7
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-16N SBV210 Series Ball Valves

SBV 1 in. Female National Pipe Taper (FNPT) Thread, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	76.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Cv Coefficient	17.5
End Size	1in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	16.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-F-16N-BH SBV210 Series Ball Valves

SBV 1 in. Female National Pipe Taper (FNPT) Thread, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	76.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Cv Coefficient	17.5
End Size	1in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	16.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-4 SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	79.8mm
Dimension H	23.0mm
Dimension I	60.0mm
Dimension L	30.0mm

Cv Coefficient	1.25
End Size	44200in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-4-BH SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	79.8mm
Dimension H	23.0mm
Dimension I	60.0mm
Dimension L	30.0mm

Cv Coefficient	1.25
End Size	44200in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-4-PE-BH SBV210 Series Ball Valves

SBV 1/4 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

Dimension A	79.8mm
Dimension H	23.0mm
Dimension I	60.0mm
Dimension L	30.0mm

Cv Coefficient	1.25
End Size	44200in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	5.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-6 SBV210 Series Ball Valves

Model: SBV210-S-6 (3/8 inch Tube Outside Diameter Ball Valve)
Type: Tube-to-Tube Compression Ball Valve – Compact, Panel-Ready
Material: 316 Stainless Steel and Brass (corrosion-resistant alloy)
Pressure Rating: Up to 1000 PSIG (Pounds per Square Inch Gauge)
Handle: Butterfly-style for low-torque manual control

Dimension A	91.5mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.5
End Size	44263in
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-6-BH SBV210 Series Ball Valves

SBV 3/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	91.5mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.5
End Size	44263in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-6-PE-BH SBV210 Series Ball Valves

SBV 3/8 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature , 1000 psi Pressure [Max] Ball Valve

Dimension A	91.5mm
Dimension H	31.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	2.5
End Size	44263in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	450?F
Operating Temperature [Min]	-65?F
Orifice	7.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-8 SBV210 Series Ball Valves

Model: SBV210-S-8 (1/2" tube OD x 1/2" tube OD)
Type: 2-Way Compression Ball Valve with Butterfly Handle
Material: 316 Stainless Steel (corrosion-resistant alloy)
Pressure Rating: 1000 psi (maximum working pressure)
Handle Type: Low-profile butterfly handle
Finish: Machined and passivated for hygienic and industrial pressure systems

Dimension A	101.4mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	9.5
End Size	44198in
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-8-BH SBV210 Series Ball Valves

SBV 1/2 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	101.4mm
Dimension H	34.0mm
Dimension I	90.0mm
Dimension L	48.0mm

Cv Coefficient	9.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	9.0mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

SBV210-S-8-PE-BH SBV210 Series Ball Valves

SBV 1/2 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

SBV210-S-10-BH SBV210 Series Ball Valves

SBV 5/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

SBV210-S-12 SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Butterfly Handle, 1000 psi Pressure [Max] Ball Valve

SBV210-S-12-BH SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

SBV210-S-12-PE-BH SBV210 Series Ball Valves

SBV 3/4 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

SBV210-S-16-BH SBV210 Series Ball Valves

SBV 1 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

SBV210-S-16-PE-BH SBV210 Series Ball Valves

SBV 1 in. Tube Outside Diameter D, Lever Handle, Peek Seats, -65 to 450 ?F Operating Temperature, 1000 psi Pressure [Max] Ball Valve

SBVT210-S-6-BH SBV210 Series Ball Valves

SBV T-Type, 3/8 in. Tube Outside Diameter D, Lever Handle, 1000 psi Pressure [Max] Ball Valve

Dimension A	107.0mm
Dimension H	39.0mm
Dimension I	100.0mm
Dimension L	55.0mm

Cv Coefficient	10.6
End Size	44324in
End Type	Array
Inch/Metric	Inch
Operating Temperature [Max]	?F
Operating Temperature [Min]	?F
Orifice	12.5mm
Pressure Rating	69bar, 1000psig
Pressure [Max]	1000psi

Dimension A	131.0mm
Dimension H	45.0mm
Dimension I	100.0mm
Dimension L	68.0mm

Dimension A	77.5mm
Dimension H	31.0mm
Dimension I	mm
Dimension L	mm
