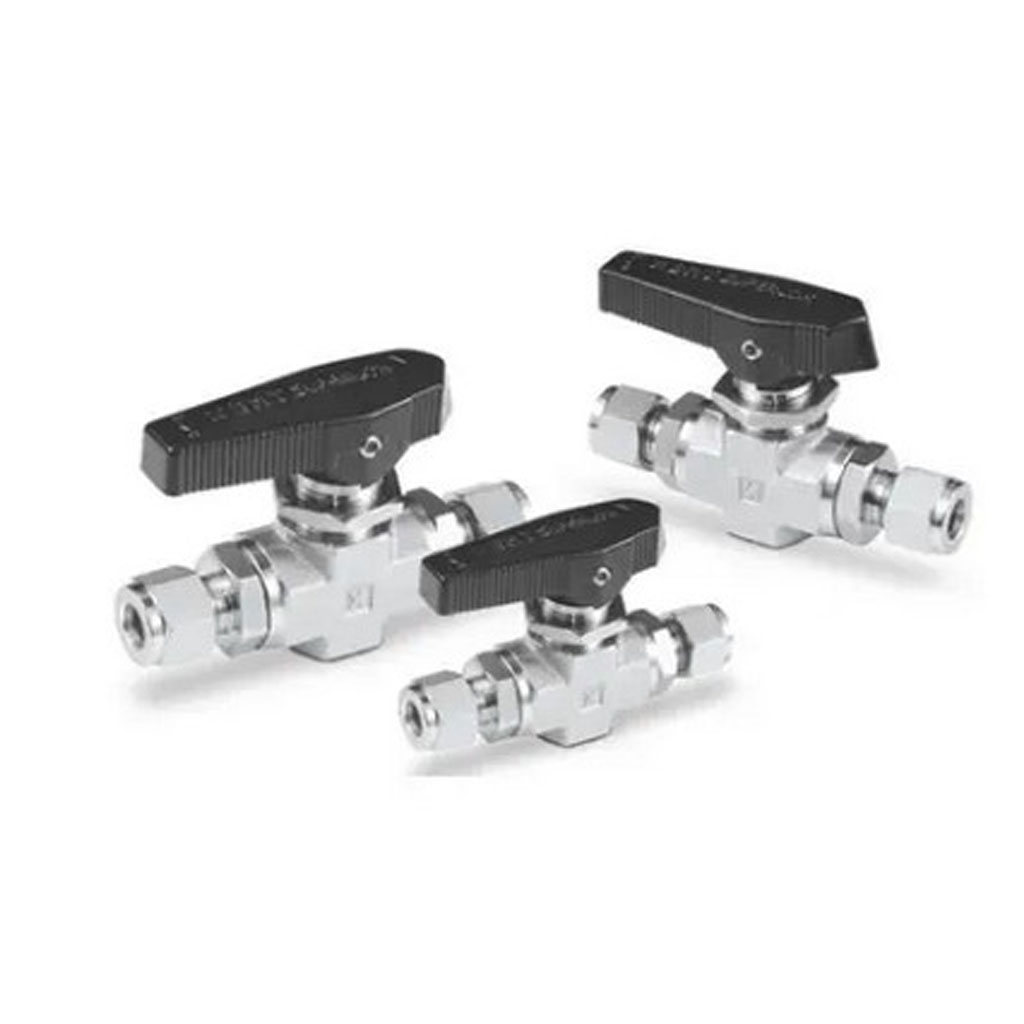

SBVF360 Series Ball Valves

Access our complete line of ball valves featuring low-torque, panel-mountable designs. Our selection includes floating ball construction with two-way and three-way configurations for your fluid system. Browse below to instantly request a quote or purchase the ball valves with direction-indicating handles.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18464 Category: Ball Valves

Downloads

SBVF360-Series-Ball-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig
Superlok Part Type	Ball Valve

Compatibility

This part may be used in place of the following parts from other manufacturers:

Bi-Lok (Series D)®

Available Sizes

SBVF3601-F-2N SBVF360 Series Ball Valves

SBVF 1/8 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	27.2mm
Dimension B	27.2mm
Dimension C	10.0mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.93
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.165in, 4.2mm
Port 1	1/8in
Port 2	1/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3601-S-2-PE SBVF360 Series Ball Valves

SBVF 1/8 in. Tube Outside Diameter D Peek Seats, -65 to 450 ?F Temperature Ratings, 6,000 psi Pressure Rating Ball Valve

Dimension A	34.5mm
Dimension B	34.5mm
Dimension C	10.0mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.21
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.093in, 2.4mm
Port 1	1/8in
Port 2	1/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3601-S-4 SBVF360 Series Ball Valves

SBVF 1/4 in. Tube Outside Diameter D 6,000 psi Pressure Rating Ball Valve

Dimension A	37.6mm
Dimension B	37.6mm
Dimension C	10.0mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.93
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.165in, 4.2mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3601-S-4-CNG SBVF360 Series Ball Valves

SBVF 1/4 in. Tube Outside Diameter D, CNG, -40 to 250? F, 6,000 psi Pressure Rating Ball Valve

Dimension A	37.6mm
Dimension B	37.6mm
Dimension C	10.0mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.93
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.165in, 4.2mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3601-S-4-MR SBVF360 Series Ball Valves

SBVF 1/4 in. Tube Outside Diameter D, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	37.6mm
Dimension B	37.6mm
Dimension C	10.0mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.93
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.165in, 4.2mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-F-4N SBVF360 Series Ball Valves

SBVF 1/4 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	38.4mm
Dimension B	38.4mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-F-4N-MR SBVF360 Series Ball Valves

SBVF 1/4 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	38.4mm
Dimension B	38.4mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-F-4N-PC SBVF360 Series Ball Valves

SBVF 1/4 in. Female National Pipe Taper (FNPT) Thread, Polychlorotrifluoroethylene (PCTFE) O-Ring, Peek Seats, 6,000 psig Pressure Rating Ball Valve

Dimension A	38.4mm
Dimension B	38.4mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	1/4in
Port 2	1/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-S-6-CNG SBVF360 Series Ball Valves

Model: SBVF3602-S-6-CNG (3/8" tube OD x 3/8" tube OD)
Type: 2-Way Compression Ball Valve (full port, straight pattern)
Material: 316 Stainless Steel (corrosion-resistant alloy)
Pressure Rating: 6,000 psi working pressure
Temperature Range: -40°F to 250°F (-40°C to 121°C)
Finish: Machined and passivated for high-integrity gas service
Application Rating: Compressed Natural Gas (CNG) systems

Dimension A	45.8mm
Dimension B	45.8mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	3/8in
Port 2	3/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-S-6-MR SBVF360 Series Ball Valves

SBVF 3/8 in. Tube Outside Diameter D, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	45.8mm
Dimension B	45.8mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	3/8in
Port 2	3/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3602-S-6-PC SBVF360 Series Ball Valves

SBVF 3/8 in Tube Outside Diameter D, Polychlorotrifluoroethylene (PCTFE) O-Ring, Peek Seats, 6,000 psi Pressure Rating Ball Valve

Dimension A	45.8mm
Dimension B	45.8mm
Dimension C	14.0mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	2.34
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	3/8in
Port 2	3/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-F-6N SBVF360 Series Ball Valves

SBVF 3/8 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	49.5mm
Dimension B	49.5mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	3/8in
Port 2	3/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-F-6N-MR SBVF360 Series Ball Valves

SBVF 3/8 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE)-Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	49.5mm
Dimension B	49.5mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	3/8in
Port 2	3/8in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-F-8N SBVF360 Series Ball Valves

SBVF 1/2 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	54.6mm
Dimension B	54.6mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-F-8N-MR SBVF360 Series Ball Valves

SBVF 1/2 in. Female National Pipe Taper (FNPT) Thread, National Association of Corrosion Engineers (NACE)-Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	54.6mm
Dimension B	54.6mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-S-8-CNG SBVF360 Series Ball Valves

Model: SBVF3603-S-8-CNG (1/2" tube OD, 316 stainless steel/brass)
Type: Ball Valve (shutoff and flow control valve)
Body Material: 316 Stainless Steel / Brass (corrosion-resistant alloy combo)
Connection Type: 1/2" Tube OD
Series: SBVF360
Cv Coefficient: 6.42

Dimension A	59.4mm
Dimension B	59.4mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-S-8-MR SBVF360 Series Ball Valves

SBVF 1/2 in. Tube Outside Diameter D, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	59.4mm
Dimension B	59.4mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-S-8-PC SBVF360 Series Ball Valves

SBVF 1/2 in Tube Outside Diameter D, Polychlorotrifluoroethylene (PCTFE) O-Ring, Peek Seats, 6,000 psi Pressure Rating Ball Valve

Dimension A	59.4mm
Dimension B	59.4mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF3603-S-12-CNG SBVF360 Series Ball Valves

SBVF 3/4 in. Tube Outside Diameter D, CNG, -40 to 250 ?F, 6,000 psi Pressure Rating Ball Valve

Dimension A	59.2mm
Dimension B	59.2mm
Dimension C	17.5mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.1mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	6.42
End Size 3	Array
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	3/4in
Port 2	3/4in
Port 3	in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36013-S-4 SBVF360 Series Ball Valves

SBVF 1/4 in. Tube Outside Diameter D 3-Way, 6,000 psi Pressure Rating Ball Valve

Dimension A	37.6mm
Dimension B	37.6mm
Dimension C	39.6mm
Dimension D	10.5mm
Dimension E	23.5mm
Dimension F	18.0mm
Dimension G	47.0mm
Dimension H	16.3mm
Dimension I	3.3mm

Cv Coefficient	0.63
End Size 3	Superlok
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.165in, 4.2mm
Port 1	1/4in
Port 2	1/4in
Port 3	1/4in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36023-F-4N SBVF360 Series Ball Valves

SBVF 1/4 in Female National Pipe Taper (FNPT) Thread, 3-Way, 6,000 psi Pressure Rating Ball Valve

Dimension A	38.4mm
Dimension B	38.4mm
Dimension C	41.9mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	0.87
End Size 3	Female National Pipe Thread (NPT)
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	1/4in
Port 2	1/4in
Port 3	1/4in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36023-S-6-CNG SBVF360 Series Ball Valves

SBVF 3/8 in. Tube Outside Diameter D 3-Way, 6,000 psi Pressure Rating Ball Valve

Dimension A	45.8mm
Dimension B	45.8mm
Dimension C	49.3mm
Dimension D	14.5mm
Dimension E	32.3mm
Dimension F	25.4mm
Dimension G	68.0mm
Dimension H	19.6mm
Dimension I	6.4mm

Cv Coefficient	0.87
End Size 3	Superlok
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.250in, 6.4mm
Port 1	3/8in
Port 2	3/8in
Port 3	3/8in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36033-F-8N-MR SBVF360 Series Ball Valves

SBVF 1/2 in. Female National Pipe Taper (FNPT) Thread, 3-Way, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve

Dimension A	54.6mm
Dimension B	54.6mm
Dimension C	63.3mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.7mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	3.62
End Size 3	Female National Pipe Thread (NPT)
End Type	Female National Pipe Thread (NPT)
End Type 2	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	1/2in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36033-S-8 SBVF360 Series Ball Valves

SBVF 1/2 in. Tube Outside Diameter D 3-Way, 6,000 psi Pressure Rating Ball Valve

Dimension A	59.4mm
Dimension B	59.4mm
Dimension C	68.1mm
Dimension D	19.3mm
Dimension E	41.1mm
Dimension F	27.7mm
Dimension G	74.2mm
Dimension H	22.9mm
Dimension I	9.7mm

Cv Coefficient	3.62
End Size 3	Superlok
End Type	Array
End Type 2	Array
Inch/Metric	Inch
Orifice	0.406in, 10.3mm
Port 1	1/2in
Port 2	1/2in
Port 3	1/2in
Pressure Rating (316 Stainless Steel)	413bar, 6000psig
Pressure Rating (Brass)	207bar, 3000psig

SBVF36033-S-8-MR SBVF360 Series Ball Valves

SBVF 1/2 in. Tube Outside Diameter D 3-Way, National Association of Corrosion Engineers (NACE) Rated, 6,000 psi Pressure Rating Ball Valve
