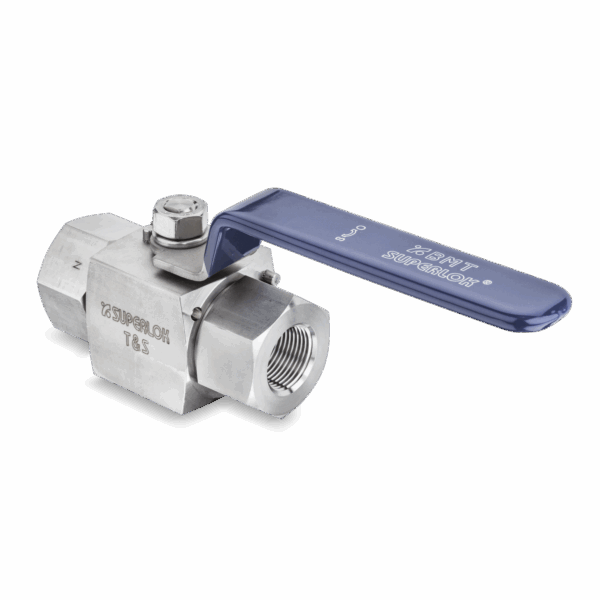

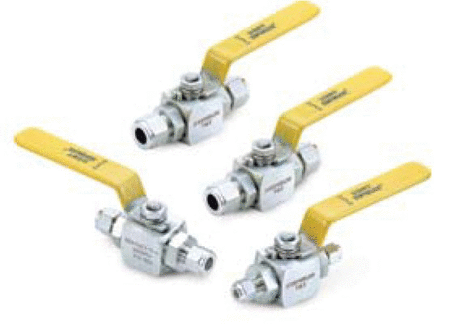

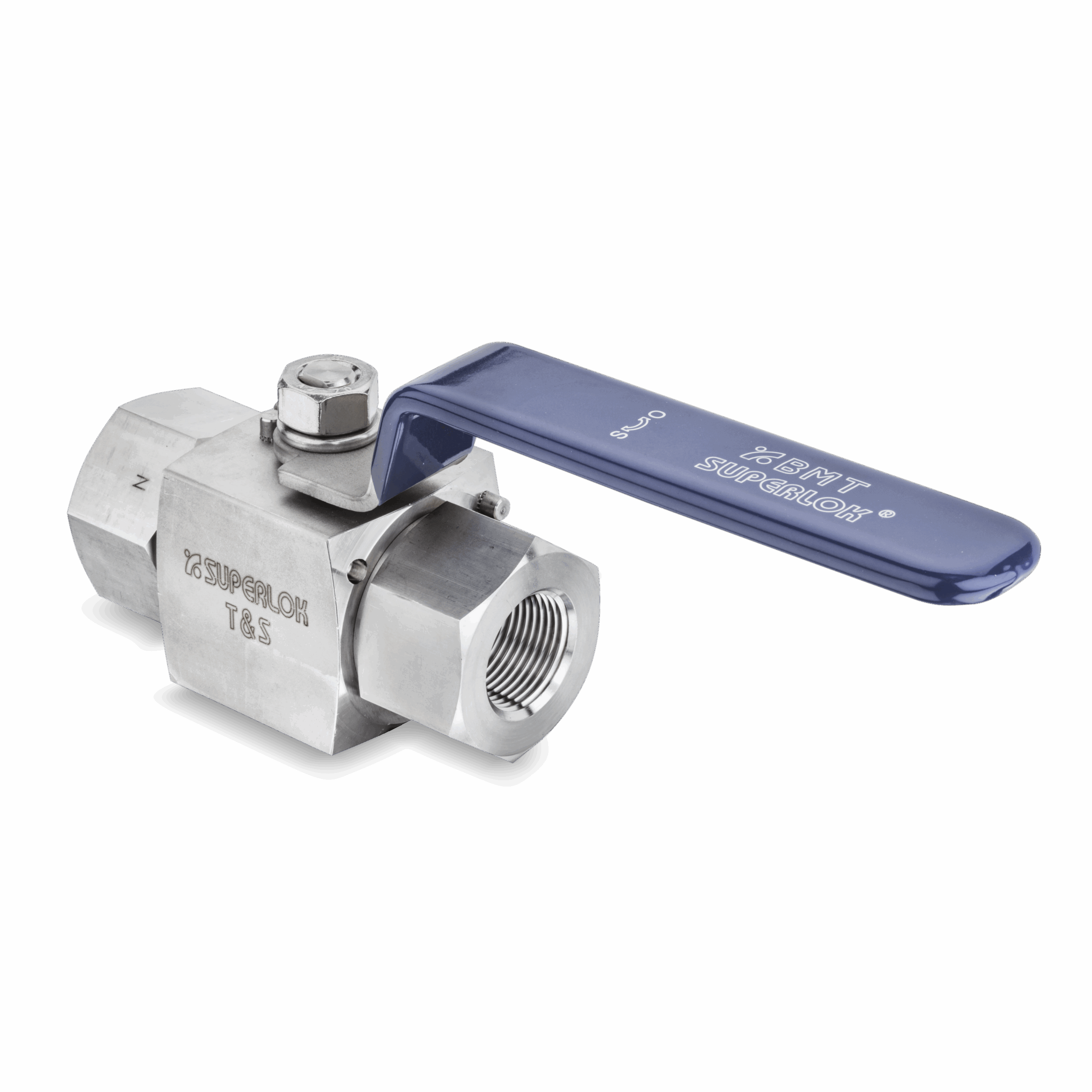

SBVH360 Series Ball Valves

Access our complete line of ball valves engineered for maximum flow capacity. Our selection features anti-blow-out stems and factory-tested safety designs for your fluid system. Browse below to instantly request a quote or purchase the ball valves with fire-safe configurations.

Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.

SKU: 18490 Category: Ball Valves

Downloads

SBVH360-Series-Ball-Valves.pdf

Click here for more info

Specifications

Inch/Metric	Inch
Pressure Rating	413bar, 6000psig
Superlok Part Type	Ball Valve
Temperature Rating	-54 to 260?C, -65 to 500?F

Available Sizes

SBVH3601-F-4N SBVH360 Series Ball Valves

SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	37.0mm
Dimension B	37.0mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	74.0mm

Cv Coefficient	7.5
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-F-4N-PE SBVH360 Series Ball Valves

SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 446 ?F, 10,000 psi Pressure Rating Ball Valve

Dimension A	37.0mm
Dimension B	37.0mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	74.0mm

Cv Coefficient	7.5
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-F-4N-PL SBVH360 Series Ball Valves

SBVH 1/4 in. Female National Pipe Taper (FNPT) Thread, Locking Handle, 6,000 psi Pressure Rating Ball Valve

Dimension A	37.0mm
Dimension B	37.0mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	74.0mm

Cv Coefficient	7.5
End Size	44200in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-F-8N-PE SBVH360 Series Ball Valves

SBVH 1/2 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -65 to 446 ?F, 10,000 psi Pressure Rating Ball Valve

Dimension A	41.5mm
Dimension B	41.5mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	83.0mm

Cv Coefficient	7.5
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-M-4N SBVH360 Series Ball Valves

SBVH 1/4 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	42.1mm
Dimension B	42.1mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	84.2mm

Cv Coefficient	3.7
End Size	44200in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-M-6N SBVH360 Series Ball Valves

SBVH 3/8 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	42.1mm
Dimension B	42.1mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	84.2mm

Cv Coefficient	7.2
End Size	44263in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-M-8N SBVH360 Series Ball Valves

SBVH 1/2 in. Male National Pipe Taper (MNPT) Thread, 6,000 psi Pressure Rating Ball Valve

Dimension A	47.0mm
Dimension B	47.0mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	94.0mm

Cv Coefficient	7.5
End Size	44198in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-S-4 SBVH360 Series Ball Valves

SBVH 1/4 in. Tube Outside Diameter D 6,000 psi Pressure Rating Ball Valve

Dimension A	45.7mm
Dimension B	45.7mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	91.4mm

Cv Coefficient	1.2
End Size	44200in
End Type	Array
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-S-6-PL SBVH360 Series Ball Valves

SBVH 3/8 in. Tube Outside Diameter D, Locking Handle, 6,000 psi Pressure Rating Ball Valve

Dimension A	47.5mm
Dimension B	47.5mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	94.4mm

Cv Coefficient	3.7
End Size	44263in
End Type	Array
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-S-8 SBVH360 Series Ball Valves

SBVH 1/2 in. Tube Outside Diameter D 6,000 psi Pressure Rating Ball Valve

Dimension A	49.8mm
Dimension B	49.8mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	99.6mm

Cv Coefficient	7.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3601-S-8-PE SBVH360 Series Ball Valves

SBVH 1/2 in. Tube Outside Diameter D Peek Seats, -65 to 446 ?F, 10,000 psi Pressure Rating Ball Valve

Dimension A	49.8mm
Dimension B	49.8mm
Dimension H	115mm
Dimension I	38.5mm
Dimension L	99.6mm

Cv Coefficient	7.5
End Size	44198in
End Type	Array
Inch/Metric	Inch
Orifice	10.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3602-F-8N SBVH360 Series Ball Valves

SBVH 1/2 in. Male National Pipe Taper (MNPT) Thread, 5,000 psi Pressure Rating Ball Valve

Dimension A	45.5mm
Dimension B	45.5mm
Dimension H	165mm
Dimension I	51.9mm
Dimension L	91.1mm

Cv Coefficient	10
End Size	44198in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	12.7mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3602-F-12N-PE SBVH360 Series Ball Valves

SBVH 3/4 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -10 to 375 ?F, 6,000 psi Pressure Rating Ball Valve

Dimension A	52.5mm
Dimension B	52.5mm
Dimension H	165mm
Dimension I	51.9mm
Dimension L	105.0mm

Cv Coefficient	10
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	12.7mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-F-12N SBVH360 Series Ball Valves

SBVH 3/4 in. Female National Pipe Taper (FNPT) Thread, 5,000 psi Pressure Rating Ball Valve

Dimension A	54.0mm
Dimension B	54.0mm
Dimension H	165mm
Dimension I	57.0mm
Dimension L	108.0mm

Cv Coefficient	30
End Size	44259in
End Type	Female National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	19.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-F-16N-PE SBVH360 Series Ball Valves

SBVH 1 in. Female National Pipe Taper (FNPT) Thread, Peek Seats, -10 to 375 ?F, 6,000 psi Pressure Rating Ball Valve

Dimension A	63.8mm
Dimension B	63.8mm
Dimension H	165mm
Dimension I	57.0mm
Dimension L	127.6mm

Cv Coefficient	30
End Size	1in
End Type	Male National Pipe Thread (NPT)
Inch/Metric	Inch
Orifice	19.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-S-12 SBVH360 Series Ball Valves

SBVH 3/4 in. Tube Outside Diameter D 5,000 psi Pressure Rating Ball Valve

Dimension A	61.9mm
Dimension B	61.9mm
Dimension H	165mm
Dimension I	57.0mm
Dimension L	123.8mm

Cv Coefficient	19
End Size	44259in
End Type	Array
Inch/Metric	Inch
Orifice	19.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-S-12-PE SBVH360 Series Ball Valves

SBVH 3/4 in. Tube Outside Diameter D Peek Seats, -10 to 375 ?F, 6,000 psi Pressure Rating Ball Valve

Dimension A	61.9mm
Dimension B	61.9mm
Dimension H	165mm
Dimension I	57.0mm
Dimension L	123.8mm

Cv Coefficient	19
End Size	44259in
End Type	Array
Inch/Metric	Inch
Orifice	19.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-S-16 SBVH360 Series Ball Valves

SBVH 1 in. Tube Outside Diameter D, 5,000 psi Pressure Rating Ball Valve

Dimension A	66.4mm
Dimension B	66.4mm
Dimension H	165mm
Dimension I	57.0mm
Dimension L	132.8mm

Cv Coefficient	30
End Size	1in
End Type	Array
Inch/Metric	Inch
Orifice	19.0mm
Pressure Rating	413bar, 6000psig
Temperature Rating	-54 to 260?C, -65 to 500?F

SBVH3603-S-16-PE SBVH360 Series Ball Valves

SBVH 1 in. Tube Outside Diameter D Peek Seats, -10 to 375 ?F, 6,000 psi Pressure Rating Ball Valve
