SWB3202-S-12-UP

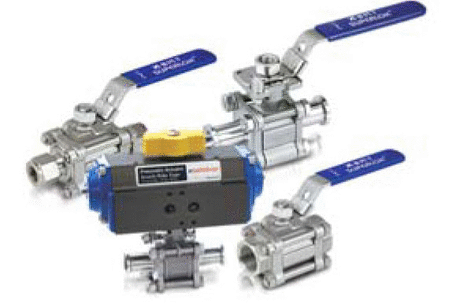

SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve
Specifications
| Cv Coefficient | 13.6 |
|---|---|
| End Size | 44259in |
| End Type | Array |
| Inch/Metric | Inch |
| Orifice | 0.516in, 13.1mm |
| Pressure Rating | 206bar, 3000psig |
| Temperature Rating | -28 to 232?C, -20 to 450?F |
Dimensions
| Dimension A | 64.8mm |
|---|---|
| Dimension B | 44.5mm |
| Dimension C | 103.8mm |
| Dimension D | 51.90mm |
| Dimension E | 22.25mm |
| Dimension F | 44.2mm |
| Dimension H | 111.0mm |
Description
(SWB3202-S-12-UP)
SWB 3/4 in. Tube Outside Diameter D, UHMWPE Seats, 2200 psi Pressure Rating Swing-Out Ball Valve
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-63ES12 |
|---|
