SACV Adjustable Check Valves
Adjustable Check Valve – SACV Adjustable Check Valves

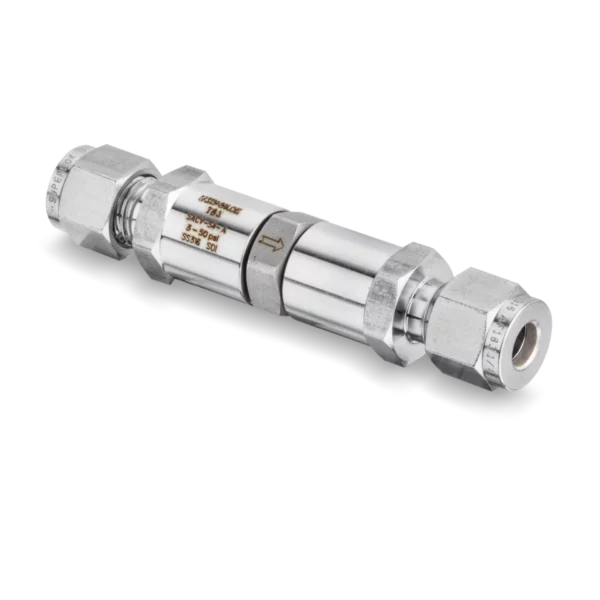

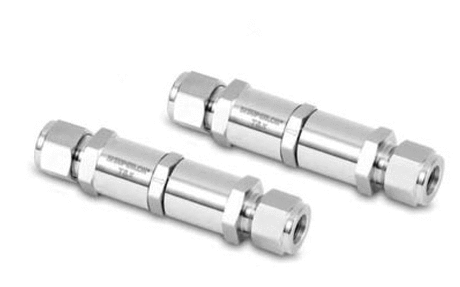

The Adjustable Check Valve is an essential component in fluid control systems, designed to regulate flow direction while preventing backflow. The SACV Adjustable Check Valves feature a robust stainless steel construction, ensuring durability and corrosion resistance in high-pressure environments. With adjustable cracking pressure settings, these valves offer flexibility in applications requiring precise pressure regulation. Commonly used in hydraulic, pneumatic, and industrial fluid systems, these check valves help maintain system efficiency and safety.
Request a quote for Adjustable Check Valves below to find the ideal solution for your pressure regulation needs.
Looking for Swagelok? alternatives? Enter a part number in our search to find compatible alternatives.
| Back Pressure at 70 (20 ?C) Temperature | 206bar, 3000psig |
|---|---|
| Cracking Pressure | 0.2 to 3.4bar, 3 to 50psi |
| Cv Coefficient | 0.37 |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Superlok Part Type | Check Valve |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190?C, -10 to 375?F |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121?C, -10 to 250?F |
