Specifications
| Back Pressure at 70 (20 ?C) Temperature | 206bar, 3000psig |
|---|---|
| Cracking Pressure | 0.2 to 3.4bar, 3 to 50psi |
| Cv Coefficient | 0.37 |
| Inch/Metric | Inch |
| Inlet | 1/4mm |
| Operating Pressure [Min] | 206bar, 3000psig |
| Outlet | 1/4mm |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190?C, -10 to 375?F |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121?C, -10 to 250?F |
Dimensions
| Dimension A | 82.0mm |
|---|---|
| Dimension H | 9/16in, 14.3mm |
Description
(SACV1-S-4-A)

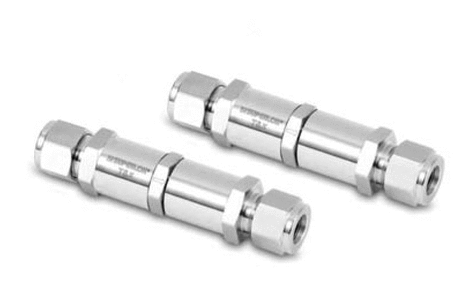

SACV Adjustable Check Valves
Pressure rating up to 6,000 psig (413 bar) at 100 ?F (37 ?C) Temperature rating up to 375 ?F (190 ?C) with Fluorocarbon (FKM) seal standard Cracking pressure fixed from 1/3 to 25 psig (0.02 to 1.7 bar) Variety of end connections 316 stainless steel body material as standard Each and every valve is tested at the factory
Compatibility
This part may be used in place of the following parts from other manufacturers:
| Swagelok® | SS-4CA-3 |
|---|
