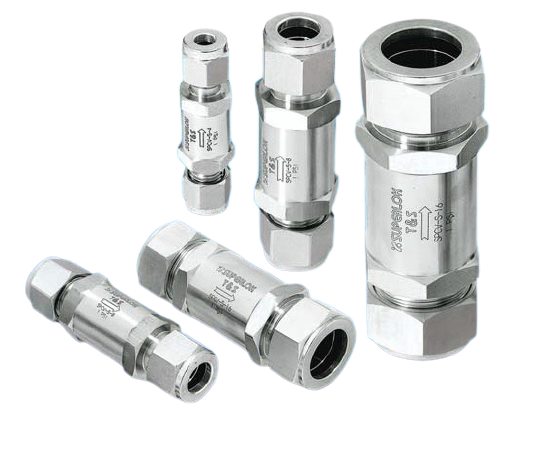

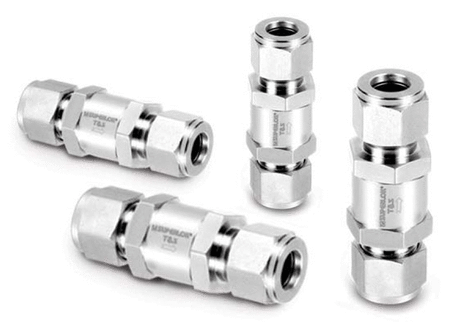

SHCV2-S-6-1/3P
Stainless Steel Union Tee – 1/4" Tube OD | Compression Instrumentation Fitting
- Model: SHCV2-S-6-1/3P (3/8" tube check valve, 316 stainless steel)
- Type: Check Valve (non-return valve for backflow prevention)
- Material: 316 Stainless Steel Body / Brass Internals (corrosion-resistant alloy combo)
- Connection Type: 3/8" Tube OD
- Cracking Pressure: 1/3 PSI
- Working Pressure: Up to 6000 PSIG
- Seal: Fluorocarbon (FKM)
- Temperature Rating: Up to 375°F (190°C)
| Back Pressure at 70 (20 ?C) Temperature | 413bar, 6000psig |
|---|---|
| Cv Coefficient | 1.8 |
| End Size | 44263mm |
| Inch/Metric | Inch |
| Nominal Cracking Pressure | 0.02bar, 1/3psig |
| Operating Pressure [Min] | 413bar, 6000psig |
| Orifice | 7.8mm |
| Reseal Pressure [Min] | 0.41bar, 6psig |
| Temperature Rating for Ethylene Propylene | -45 to 148?C, -50 to 300?F |
| Temperature Rating for Fluorocarbon (FKM) | -23 to 190?C, -10 to 375?F |
| Temperature Rating for Nitrile Butadiene Rubber | -23 to 121?C, -10 to 250?F |
| Dimension A | 69.9mm |
|---|---|
| Dimension B | 31.2mm |
| Dimension h | 1in, 25.4mm |
Stainless Steel Union Tee – 1/4" Tube OD | Compression Instrumentation Fitting (SHCV2-S-6-1/3P)

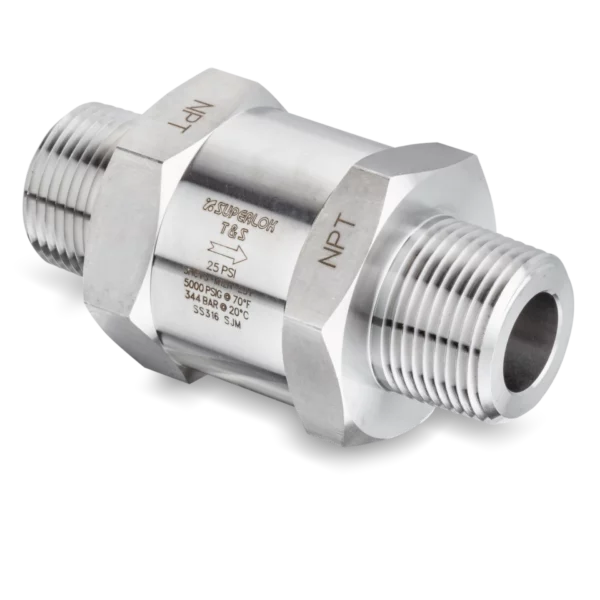

The SHCV2-S-6-1/3P is a precision check valve built for 3/8" tubing and engineered to prevent backflow in high-pressure, hygienic, and analytical systems. With a cracking pressure of just 1/3 PSI and a working pressure rating up to 6000 PSIG, this valve offers reliable, leak-tight shutoff even under demanding service conditions.
Constructed with a 316 stainless steel body and brass internals, the SHCV2-S-6-1/3P is ideal for Clean-in-Place (CIP) instrumentation, OEM fuel delivery systems, gas analyzers, and sanitary transfer lines where low pressure differentials and corrosion resistance are critical. Its fluorocarbon (FKM) seal and high temperature tolerance ensure dependable performance in regulated environments.
Factory-tested for sealing integrity and built to integrate seamlessly with sanitary stainless steel fittings, this valve is a trusted option for engineers needing ultra-low cracking pressure and consistent flow control in hygienic and lab-grade setups.
Key Benefits
- Function: Prevents backflow with ultra-low 1/3 PSI cracking pressure
- Durability: Rated for up to 6000 PSIG and 375°F (190°C) operation
- Integrity: Factory-tested for reliable sealing under pressure
- Compatibility: Connects with 3/8" stainless tubing and instrumentation-grade fittings
- Material: 316 stainless steel and brass construction supports sanitary use
Typical Applications
- Clean-in-Place (CIP) instrumentation systems
- Gas analyzers and lab instrumentation
- Sanitary process skids
- Original Equipment Manufacturer (OEM) fuel and fluid delivery
- Hygienic valve assemblies
Looking for a Swagelok® check valve alternative? The SHCV2-S-6-1/3P delivers precise, low-pressure backflow control and high-performance sealing in sanitary and industrial systems.
